LED ALUMINUM PROFILE #86 - LCPROF-86-8FT-BK

Black, recessed, made for dark finishes
The 86 series is designed for recessed installation and to make the light source invisible. In black, reference LCPROF-86-8FT-BK matches the finishes where a bright aluminum edge would stand out: black or espresso cabinets, dark-stained oak, walnut veneer, black melamine shelving and charcoal wall panels. The edge stays discreet, and this black LED profile lets the eye focus on the line of light. It is just as useful in commercial fixtures, where dark finishes are common in bars, restaurants and boutiques.

Material and strip choice
The extrusion is made of 6063-T5 aluminum, can be installed both indoors and outdoors, and can be painted to match your decor. It accommodates and protects the majority of LED strips of the range: a warm white LED strip sets off dark wood in a living room or a bar, a neutral white one lights a black kitchen counter, and an RGB or RGBW strip adds colour to a media wall or a games room.

Installation in cabinetry
Recessed installation means routing a groove or making a cut-out in the material: wood, melamine, drywall or a wall panel. Check the technical drawing for exact dimensions before cutting, test-fit the profile, then lay in the strip. Route the wires through the cabinet, hide the LED driver in a cavity or a cabinet, and have any line-voltage connection made by a licensed electrician. For exact sizes, custom fabrication is available up to 192 inches, and the series also comes in 4 and 16 ft.

Technical specifications
SKU: LCPROF-86-8FT-BK
Series: 86
Type: recessed aluminum profile
Colour: black
Length: 8 ft (series also in 4 and 16 ft; custom up to 192 in)
Material: 6063-T5 aluminum

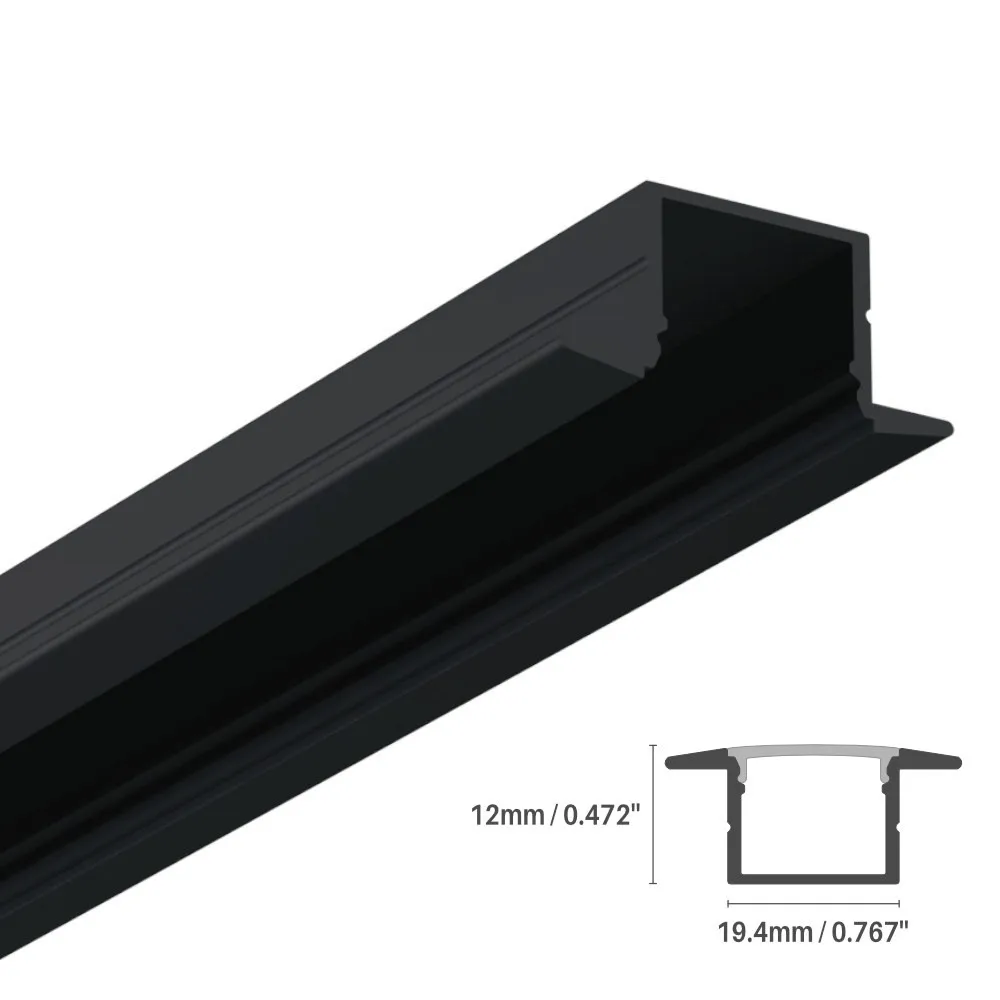

Dimensions (technical drawing): 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in), 9 mm (0.354 in)
Use: indoor and outdoor
Compatible strips: white and RGB-RGBW LED strips of the range
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
Black kitchens, dark bathroom vanities, media walls, bar back shelves, boutique displays and black stair walls: the black #86 in 8 ft brings hidden LED lighting to dark decor. Plan it at the design stage of the cabinetry, so the grooves and wire paths are machined along with the rest of the piece. Want the channel closed with a lens? See the black #86 profile in 16 ft with opaque lens. The spec sheet PDF, with the technical drawing and a gallery of installations, is available in the Documentation tab.
