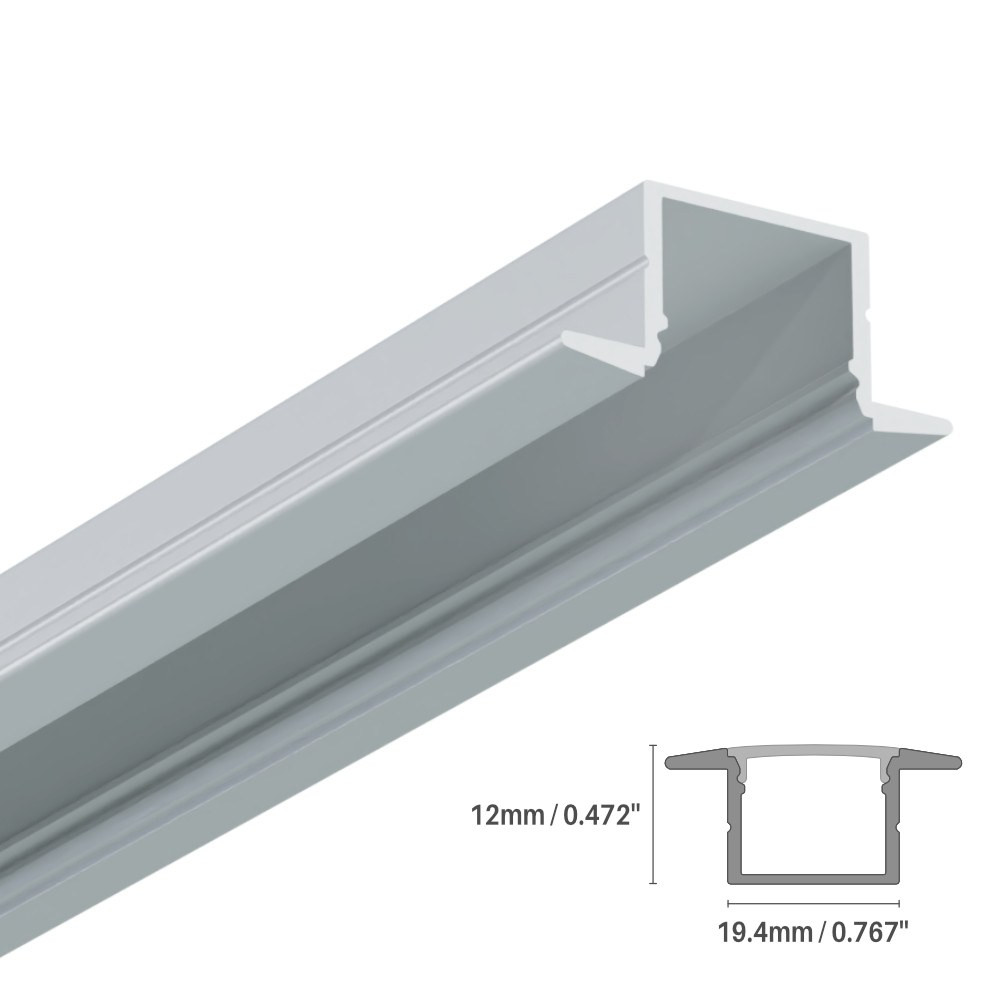

LED ALUMINUM PROFILE #86 - LCPROF-86-8FT

Name: LED ALUMINUM PROFILE #86 - LCPROF-86-8FT
Brand: LEDCO
SKU: LCPROF-86-8FT
Price: 29.97 CAD
Availability: InStock

SKU: LCPROF-86-8FT

Brand: LEDCO

Not every project needs a 16-foot line. For cabinets, shelves, niches, vanities and furniture, the LED Aluminum Profile #86 in 8 ft is the practical size. This recessed aluminum profile for LED strip lighting, also known as a recessed LED channel, an aluminum extrusion for LED strips or a built-in LED profile, is designed to make the light source invisible, so your millwork glows without showing the strip. Its compact form factor permits a wide range of uses, from kitchen cabinetry and bookcases to stair walls, headboards, bars and retail fixtures.

This SKU, LCPROF-86-8FT, is the 8 ft length, easy to handle on the job and in the workshop; the series also comes in 4 and 16 ft, with custom fabrication up to 192 inches. Designed for recessed installation, the profile is made of 6063-T5 aluminum, can be installed both indoors and outdoors and can be painted to match your decor; the series is offered in aluminum, black or white. It accommodates and protects the majority of LED strips of the range, white as well as colour RGB-RGBW. The technical drawing lists 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in) and 9 mm (0.354 in). It is certified for the Canadian market and carries a 3-year warranty.

Cabinetmakers in Québec City, kitchen designers in Oakville, renovators in Saskatoon and DIY homeowners in Halifax all use the same trick: a recessed profile routed into the underside of a cabinet, the edge of a shelf or a baseboard, with an LED strip tucked inside. The #86 in 8 ft makes that detail easy. For long ceiling runs, step up to the LED aluminum profile #86 in 16 ft; for dark millwork, choose the black LED aluminum profile #86 in 8 ft. Give your furniture integrated LED lighting that looks custom-built.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-86, LCENDCAP-STAND-86-BK, LCENDCAP-STAND-86-H, LCENDCAP-STAND-86-H-BK, LCENDCAP-STAND-86-H-WH, LCENDCAP-STAND-86-WH
Lens: LCLENS-FROS85-8FT, LCLENS-FROS85-8FT-P88, LCLENS-OPAQ85-16FT-BK, LCLENS-OPAQ85-8FT-BK

Built-in light for millwork and furniture
The 86 series is designed for recessed installation and to make the light source invisible. In the 8 ft length, reference LCPROF-86-8FT is sized for the pieces where a recessed light line makes the biggest difference: kitchen and bathroom cabinets, open shelving, bookcases, display niches, headboards, bar fronts and reception desks. The compact form factor permits a wide range of uses, and the light seems to come from the furniture itself.

Material, colours and strips
The extrusion is made of 6063-T5 aluminum, can be installed both indoors and outdoors, and can be painted to match your decor; the series is offered in aluminum, black or white. The profile accommodates and protects the majority of LED strips of the range. A warm white LED strip suits a living room bookcase or a bedroom headboard, a neutral white one lights a kitchen counter or a closet, and an RGB or RGBW strip brings colour to a bar, a games room or a display.

Routing and installation
Recessed installation means routing a groove or making a cut-out in the material, whether wood, melamine, drywall or a baseboard. Check the technical drawing for the exact dimensions before cutting, test-fit the profile, then lay in the strip. Plan the wire path and hide the LED driver in a cabinet or a nearby cavity, and have any line-voltage connection made by a licensed electrician. Need an exact size? Custom fabrication is available up to 192 inches, and the series also exists in 4 and 16 ft.

Technical specifications
SKU: LCPROF-86-8FT
Series: 86
Type: recessed aluminum profile
Length: 8 ft (series also in 4 and 16 ft; custom up to 192 in)
Material: 6063-T5 aluminum
Series colours: aluminum, black or white
Dimensions (technical drawing): 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in), 9 mm (0.354 in)
Use: indoor and outdoor
Compatible strips: white and RGB-RGBW LED strips of the range
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
Kitchen cabinets, floating shelves, bathroom vanities, display niches, toe kicks, bar fronts and retail fixtures: the #86 in 8 ft adds hidden LED lighting wherever millwork meets light. Prefer a closed channel on long runs? See the #86 profile in 16 ft with opaque lens. The spec sheet PDF, with the technical drawing and a gallery of installations, is available in the Documentation tab.
