LED ALUMINUM PROFILE #86 - LCPROF-86-16FT-LENS-OPAQ

Name: LED ALUMINUM PROFILE #86 - LCPROF-86-16FT-LENS-OPAQ
Brand: LEDCO
SKU: LCPROF-86-16FT-LENS-OPAQ
Price: 84.97 CAD
Availability: InStock

SKU: LCPROF-86-16FT-LENS-OPAQ

Brand: LEDCO

Long, clean lines of light in a ceiling or a wall are the signature of modern offices, clinics and renovated homes, and the LED Aluminum Profile #86 with opaque lens makes them easy to achieve. This recessed aluminum profile for LED strip lighting, also known as a recessed LED channel, an LED aluminum extrusion or an LED channel with cover, is designed to make the light source invisible: the strip sits inside the recess, the lens closes the channel, and only a neat band of light remains. Its compact form factor permits a wide range of uses, from ceilings and walls to cabinets, shelving and commercial millwork.

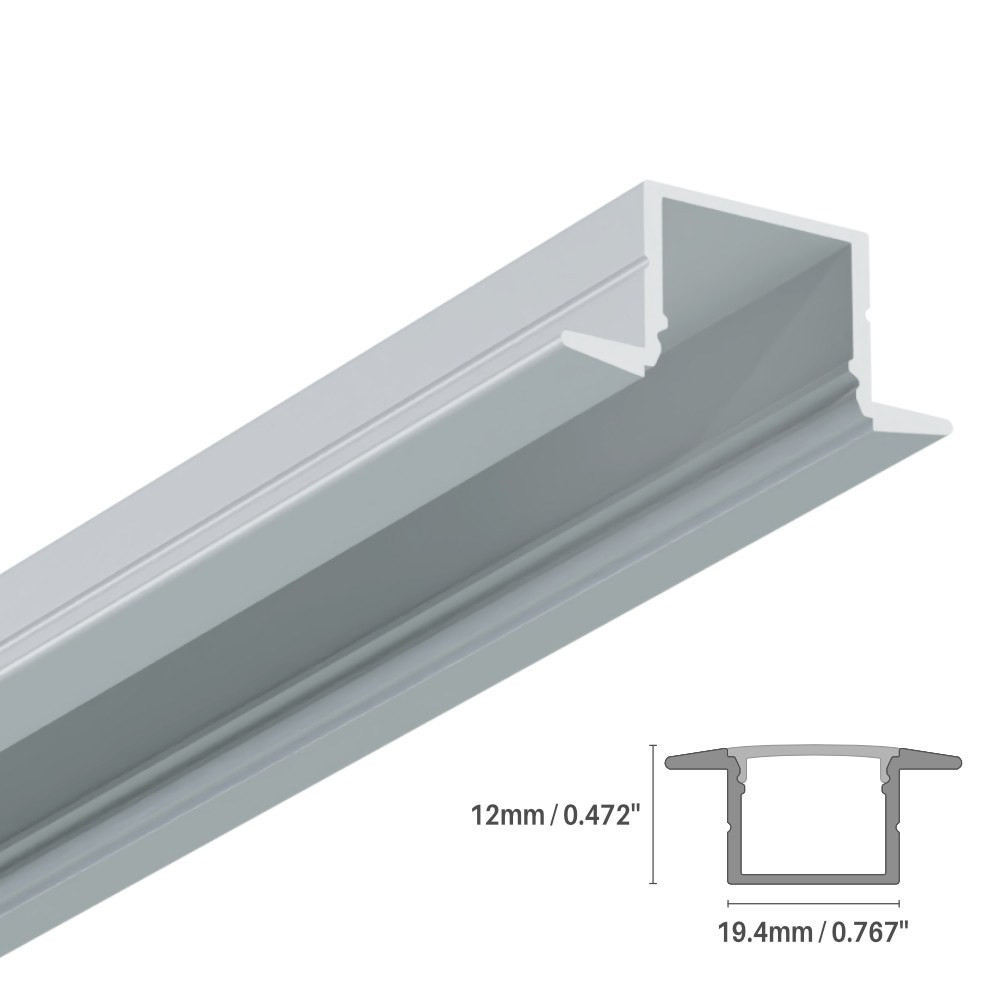

This SKU, LCPROF-86-16FT-LENS-OPAQ, is the 16 ft profile with an opaque lens, a length that covers long runs with fewer joints. The series is designed for recessed installation and made of 6063-T5 aluminum; it can be installed both indoors and outdoors, painted to match your decor, and it is offered in aluminum, black or white. It accommodates and protects the majority of LED strips of the range, including white and colour RGB-RGBW strips. The technical drawing lists 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in) and 9 mm (0.354 in). Standard lengths are 4, 8 and 16 ft, custom fabrication goes up to 192 inches, and the profile is certified for the Canadian market with a 3-year warranty.

Run it along an office corridor in Ottawa, across a classroom ceiling in Moncton, over the reception of a dental clinic in Sherbrooke or along the kitchen bulkhead of a new build in Airdrie: the #86 with lens gives contractors and homeowners a clean, repeatable detail. Choose your LED strip, recess the profile and close it with the lens. To match other rooms, the same profile with opaque lens also comes as the black #86 profile in 16 ft with opaque lens and the white #86 profile in 16 ft with opaque lens. Build in linear LED lighting that looks as good as the plans.

Sold separately
To complete the installation, add:
End cap: LCENDCAP-STAND-86, LCENDCAP-STAND-86-BK, LCENDCAP-STAND-86-H, LCENDCAP-STAND-86-H-BK, LCENDCAP-STAND-86-H-WH, LCENDCAP-STAND-86-WH

A recessed profile with its lens
The 86 series is designed for recessed installation and to make the light source invisible. Model LCPROF-86-16FT-LENS-OPAQ combines the 16 ft profile with an opaque lens that closes the channel over the strip, giving a finished look that suits offices, clinics, schools and homes alike. The compact form factor permits a wide range of uses, whether the profile goes into a ceiling, a wall, a bulkhead or a piece of custom cabinetry.

Material and compatibility
The extrusion is made of 6063-T5 aluminum, can be installed both indoors and outdoors, and can be painted to match your decor; the series is offered in aluminum, black or white. The profile accommodates and protects the majority of LED strips of the range. Choose a white LED strip for offices, corridors and kitchens where functional light matters, or an RGBW strip for spaces that switch between white light and colour, such as a lounge, a restaurant or a family room.

Installation
A recessed installation calls for a groove or a cut-out in the material: drywall, a wood ceiling, a bulkhead, a cabinet or a shelf. Take the exact dimensions from the technical drawing before cutting, then plan the wire path and the location of the LED driver before walls are closed. Lay in the strip, test it, then install the lens. For shorter sections, the LED aluminum profile #86 in 8 ft keeps the same design, and custom fabrication up to 192 inches handles exact lengths. Have any line-voltage connection made by a licensed electrician.

Technical specifications
SKU: LCPROF-86-16FT-LENS-OPAQ
Series: 86
Type: recessed aluminum profile
Lens: opaque
Length: 16 ft (series also in 4 and 8 ft; custom up to 192 in)
Material: 6063-T5 aluminum
Series colours: aluminum, black or white
Dimensions (technical drawing): 27.5 mm (1.083 in), 19.4 mm (0.767 in), 16.4 mm (0.646 in), 12 mm (0.472 in), 9 mm (0.354 in)
Use: indoor and outdoor
Certification: certified for the Canadian market
Warranty: 3 years

Applications and documentation
Open-plan offices, school corridors, medical clinics, retail ceilings, condo kitchens and finished basements: the #86 with lens brings a clean line of recessed LED lighting to every one of them, from Vancouver to St. John's. The spec sheet PDF, with the technical drawing and a gallery of installations, is available in the Documentation tab, ready for your architect, contractor or electrician.
