FLEX NEON ENDCAP 6X6 - (WITH HOLE)

Name: FLEX NEON ENDCAP 6X6 - (WITH HOLE)
Brand: LEDCO
SKU: LCENDCAP-FLX-6X6-H
Price: 3.97 CAD
Availability: InStock

SKU: LCENDCAP-FLX-6X6-H

Brand: LEDCO

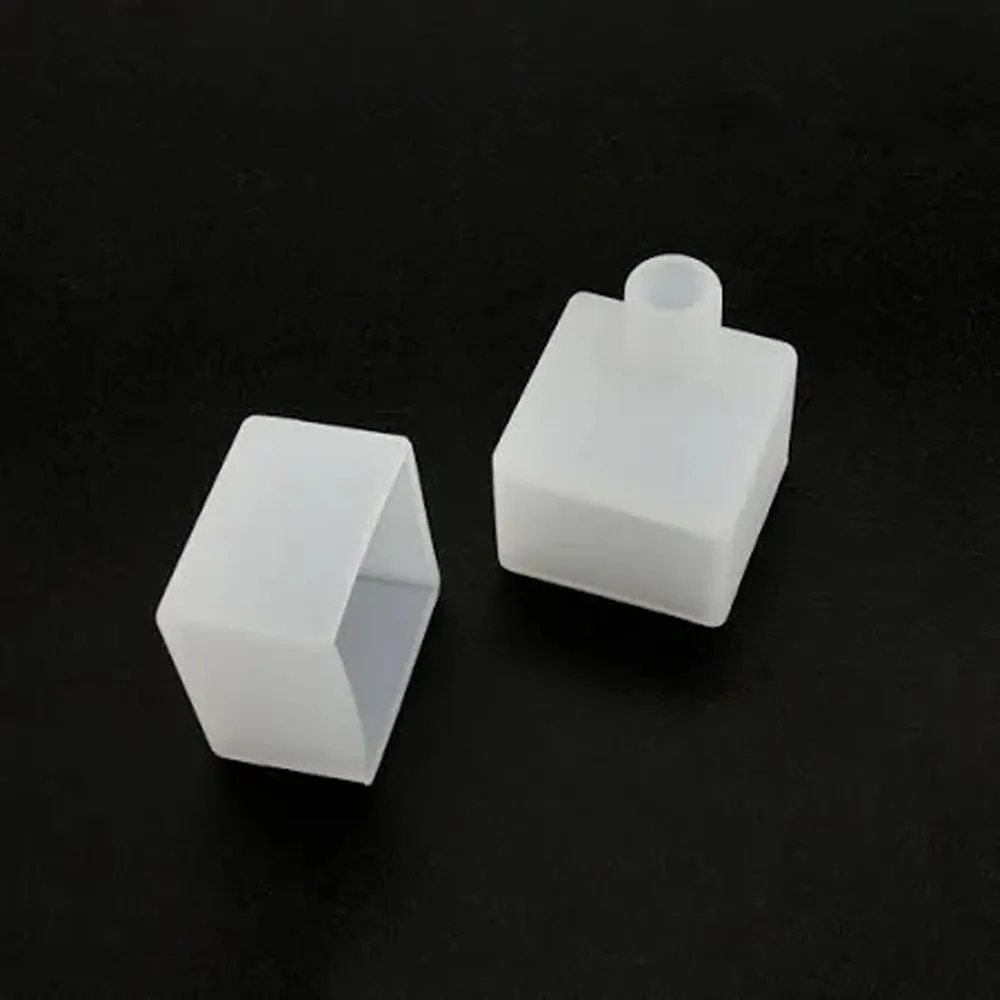

Finish your LED neon flex run the right way — with a cap that seals the cut end and hides the wire. This is the flex neon end cap 6X6 with hole (SKU LCENDCAP-FLX-6X6-H), the small but essential finishing piece that closes the cut extremity of a flexible LED neon rope light. People search for it as a neon flex end cap, neon connector, embout for LED neon, or simply a plug for LED neon sign tubing — it all means the same thing: the tidy little cover that turns a raw, freshly cut end into a clean, professional termination. The drilled version is made for the feed end of the run: the power wire passes through the opening while the rest of the profile stays closed, so the connection point stays protected, discreet and mechanically sound.

This cap is sized for the 6X6 neon flex profile, so it slips squarely over the end of the rope with no gaps to fill and no silicone squeezing out where it shouldn't. Because it is the with-hole version, it lets the supply cable exit cleanly and keeps strain off the solder joint hidden inside the profile. Use it together with a solid, undrilled cap at the far end of the run and the whole length is sealed from both sides. Always confirm that the cap profile matches the profile of your LED neon flex before installing — a 6X6 cap belongs on 6X6 flex, and the accessory range also includes 3X6, side view and top view shapes for other profiles.

Sign shops, retail displays, bars, gyms, offices and home entertainment rooms all rely on these caps for clean terminations on cove lighting, perimeter accents and channel letter signage. For Canadian outdoor or damp projects — storefront signage, garage and patio accents, exterior neon lettering — be generous with silicone or PVC adhesive around the wire opening so the joint stays watertight through freeze and thaw. Pair it with the matching flex neon end cap 6X6 without hole for the far end, or browse the flex neon end cap 3X6 with hole if your project uses the narrower profile. Order the right cap and finish your neon LED run like a pro.

Compatible with
Works with:
LED strip: LCLS24VFLX-6X6-6W-27K, LCLS24VFLX-6X6-6W-30K, LCLS24VFLX-6X6-6W-30K-30M, LCLS24VFLX-6X6-6W-40K, LCLS24VFLX-6X6-6W-40K-30M

What this end cap actually does
A run of LED neon flex is almost always cut to length on site, and that cut leaves an open, exposed extremity: raw silicone or PVC, visible LED board, and a solder point that needs protection. This end cap is the finishing piece that closes that opening. The version with a hole is intended for the supply side of the run, where the power lead has to exit the profile — the wire feeds through the opening while the rest of the end stays sealed. The result is a termination that looks deliberate instead of improvised, and a connection that is shielded from dust, moisture and accidental tugs.

Technical specifications
SKU: LCENDCAP-FLX-6X6-H
Type: End cap for flexible LED neon rope
Profile: 6X6
Version: With hole (for the power wire / feed end of the run)
Sold as: 1 unit
Category: End Caps, Lenses & Accessories

Fit and compatibility
End caps are sized to match the profile of the neon flex they are used with, so the single most important check before you buy is the profile of your rope. This one is the 6X6 shape. If your run uses a different cross-section or a different viewing direction, the accessory range covers it: the flex neon end cap 3X6 without hole and the flex neon end cap side view handle other profiles, while the flex neon end cap top view suits top-emitting rope. A typical run needs two caps: one drilled cap at the feed end and one solid cap at the far end. Using the correct cap is what keeps a run properly sealed and mechanically sound — a mismatched cap will never bond well, and a poorly bonded cap is the first thing to fail on an exterior sign.

Installation, step by step
Cut the flexible LED neon rope light only at the marked cut points — cutting anywhere else kills the segment. Wipe the end clean and dry so the adhesive can grip. Apply a suitable silicone or PVC adhesive inside the cap, slide the power wire through the hole, then press the cap firmly onto the profile until it seats flat against the end. Wipe away the excess, and let the adhesive cure fully before powering the run up; rushing this step traps solvent and weakens the bond. For outdoor or damp installations, be generous with adhesive around the wire opening so the sealed joint stays watertight, and support the cable so its weight never hangs on the cap itself.

Where it earns its keep
Sign shops building channel letters and custom LED neon signs go through these caps by the handful — every letter, every logo stroke, every exposed return needs a sealed end. Beyond signage, they finish cove and perimeter lighting in bars and restaurants, wayfinding and display accents in retail, motivational lettering in gyms, feature walls in offices, and home theatre or games-room lighting. Anywhere a length of LED neon stops in plain view — above a bar, along a soffit, around a mirror, under a counter — a proper cap is the difference between a finished installation and a visible cut. Keep a few spares in the truck or the shop drawer; on a long install, the caps are always the part you run out of first.
