LUNA 4" ONCLOUD - RGBTW - RA4-12RG-RGBTW-90WH

Name: LUNA 4" ONCLOUD - RGBTW - RA4-12RG-RGBTW-90WH
Brand: LITELINE
SKU: RA4-12RG-RGBTW-90WH
Price: 128.97 CAD
Availability: InStock

SKU: RA4-12RG-RGBTW-90WH

Brand: LITELINE

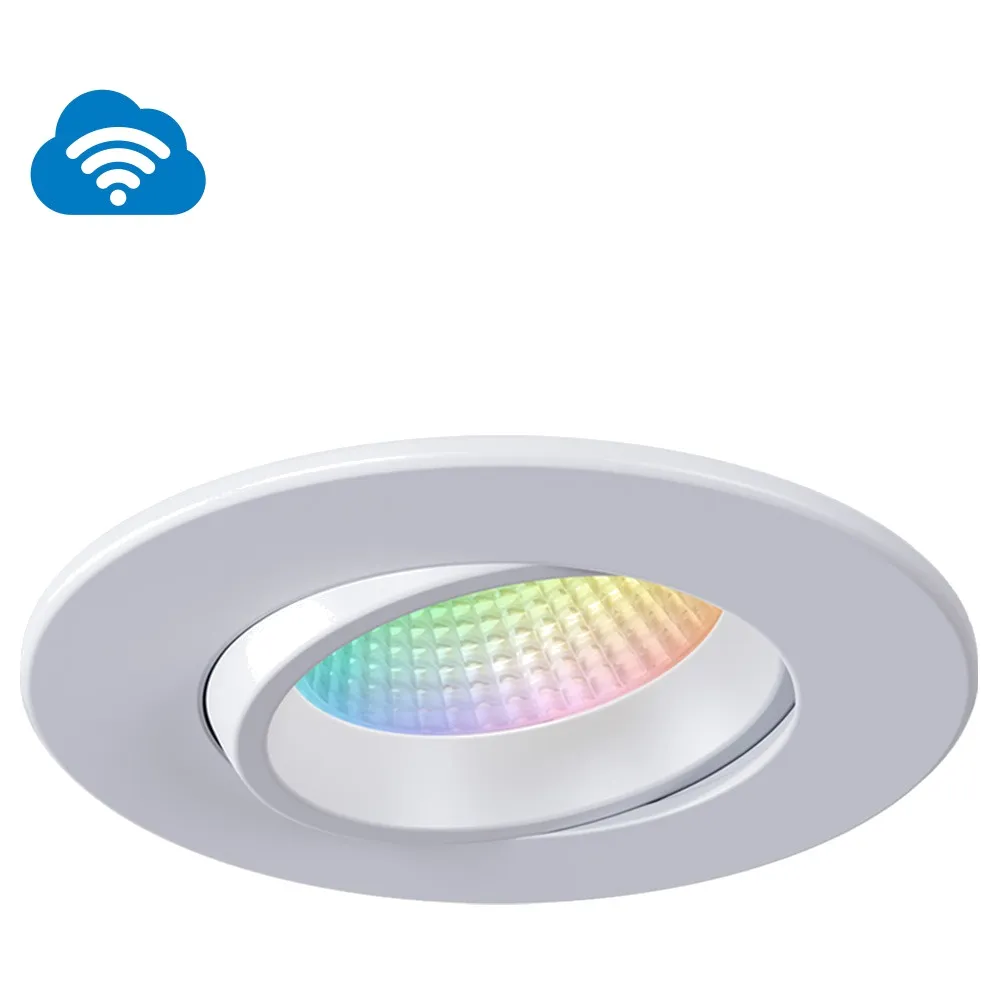

Say goodbye to boring ceilings: the LUNA 4" OnCloud RGBTW by LITELINE is a 4-inch regressed gimbal recessed light — what most people simply call a pot light or a 4 inch LED downlight — with full colour and tunable white control right from your phone. It tilts, it aims, it changes colour, and its deep-set optic keeps the light source out of your eyes. Whether you are searching for smart recessed downlighting, a directional adjustable gimbal pot light for sloped ceilings, or a colour-changing fixture for a home theatre, a feature wall or a restaurant dining room, this is the one that does it all with a single ceiling hole.

Under the white trim you get a 12W LED module delivering up to 910 lumens (up to 74 lumens per watt) with a typical CRI of 90, so skin tones, wood grain and merchandise look the way they should. The colour engine covers RGB with 16 million colours plus tunable white from 2200 K to 6500 K, from candle-warm evenings to crisp daylight task light. Wi-Fi dimming runs from 100% down to 2% through the WiZ App and the OnCloud Room Controller, with voice control through Google Assistant, Siri, Alexa and IFTTT. The 40° beam spread focuses light where you aim it, the durable airtight aluminum body with anodized blue heat sink keeps the LED cool, and the fixture is cETLus certified, Class II, rated for wet locations, approved for direct contact with insulation and for indoor or outdoor use, with a minimum starting temperature of -40°C (-40°F). Projected life is 70% at 50,000 hours, backed by a 3-year warranty. Input is 100-135V AC, 60Hz, power factor 0.9, and the hole cut is Ø 4¼" (108mm). SKU: RA4-12RG-RGBTW-90WH.

It shines in kitchens, basements, home theatres, covered porches and soffits, bathrooms and showers, retail displays, cafés, salons and boutique hotels — anywhere a Canadian renovation or build needs one fixture that handles everyday white light and party colours. Pair it with the matching LUNA 4" OnCloud RGBTW in black, or mix it into a layout with the standard 4" LUNA regressed gimbal recessed fixture. Light your space your way — order yours today.

Built to disappear into the ceiling
The LUNA OnCloud was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and you feel it the moment you look up. The durable airtight aluminum body holds an adjustable regressed gimbal that tilts 30°, pulling the LED deep behind the trim so you see the light, not the source. An anodized blue heat sink provides maximum airflow for the LED light source, which is exactly what keeps lumen output and colour stable year after year. The white trim finish (WH) suits painted drywall ceilings, while two spring-loaded clips let the fixture mount to virtually any ceiling material through a Ø 4¼" (108mm) hole cut.

Colour, white light and control
This general application fixture features a 12 watt LED module that maintains uniform intensity producing up to 910 lumens, with a typical CRI of 90 for rich, accurate colour rendering. It combines RGB (16M colours) with tunable white from 2200 K to 6500 K, and the published output per CCT is 650 lumens at 2200 K, 710 at 2700 K, 750 at 3000 K, 775 at 3500 K, 800 at 4000 K, 850 at 5000 K and 910 at 6000 K. Dimming runs from 100% to 2% over Wi-Fi, controlled through the WiZ App (iOS and Android) from anywhere, or locally with the OnCloud Room Controller. Voice control is available by integrating the app with most smart speakers: Google Assistant, Siri, Alexa and IFTTT. The lens delivers a 40° beam spread for controlled, directional light.

Wiring and installation
An extruded aluminum hardwire box houses the 12 watt (300mA) Wi-Fi dimmable LED driver with 100-135V AC input, and three Quick Connect push-in terminals make wiring fast on site. An 18" FT-6 wire with a 6-pin DC connector links the driver to the fixture. The unit is cETLus certified, Class II, suitable for wet locations, approved for direct contact with insulation, approved for indoor and outdoor applications, and airtight — with a minimum starting temperature of -40°C (-40°F), a real advantage for Canadian soffits, porches and unheated spaces. Power factor is 0.9 and projected life is 70% at 50,000 hours, with a 3-year warranty.

Technical specifications
SKU: RA4-12RG-RGBTW-90WH
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings / Indoor / Outdoor
Wattage: 12W
Lumens: Up to 910
Lumens per watt: Up to 74
CRI: 90
Colour: RGB, 16M Colors
CCT: Tunable White (2200 K - 6500 K)
Beam angle: 40°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Dimming: Yes — Wi-Fi dimming (via WiZ App), 100%-2%
Hole cut: Ø 4¼" (108mm)
Trim finish: WH (White)
Certification: cETLus
Class II: Yes
Energy Star: No
Projected life: 70% @ 50,000 hrs
Warranty: 3-Year

Where to use it, accessories and documentation
Think kitchen islands and hallways that shift from 2700 K at supper to 5000 K for homework, basement theatres that drop into deep blue, a covered patio that turns green and red for the holidays, or a boutique that re-merchandises its accent lighting from a phone. Accessories listed for this family (sold separately) include the P-4020 pre-mounting plate and P-4020NC new construction plate for 4" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit, VBE-1, VBE-2 and VBE-5 vapour barrier extenders, RA4-XLRING-BK and RA4-XLRING-WH reducer rings for 4" LUNA fixtures, the LC-CRTL-SCENE-1 OnCloud Room Controller, and the SLM-60-RGBTW-FC 60" flexible connector for LUNA OnCloud RGBTW fixtures. Building a full layout? Match finishes with the LUNA 4" OnCloud RGBTW black, or complete the ceiling with the 4" LUNA regressed gimbal white, 4" LUNA regressed gimbal black and 4" LUNA round gimbal recessed fixture. The full technical spec sheet for RA4-12RG-RGBTW-90WH is available in the Documentation tab for your electrician or your permit file.
