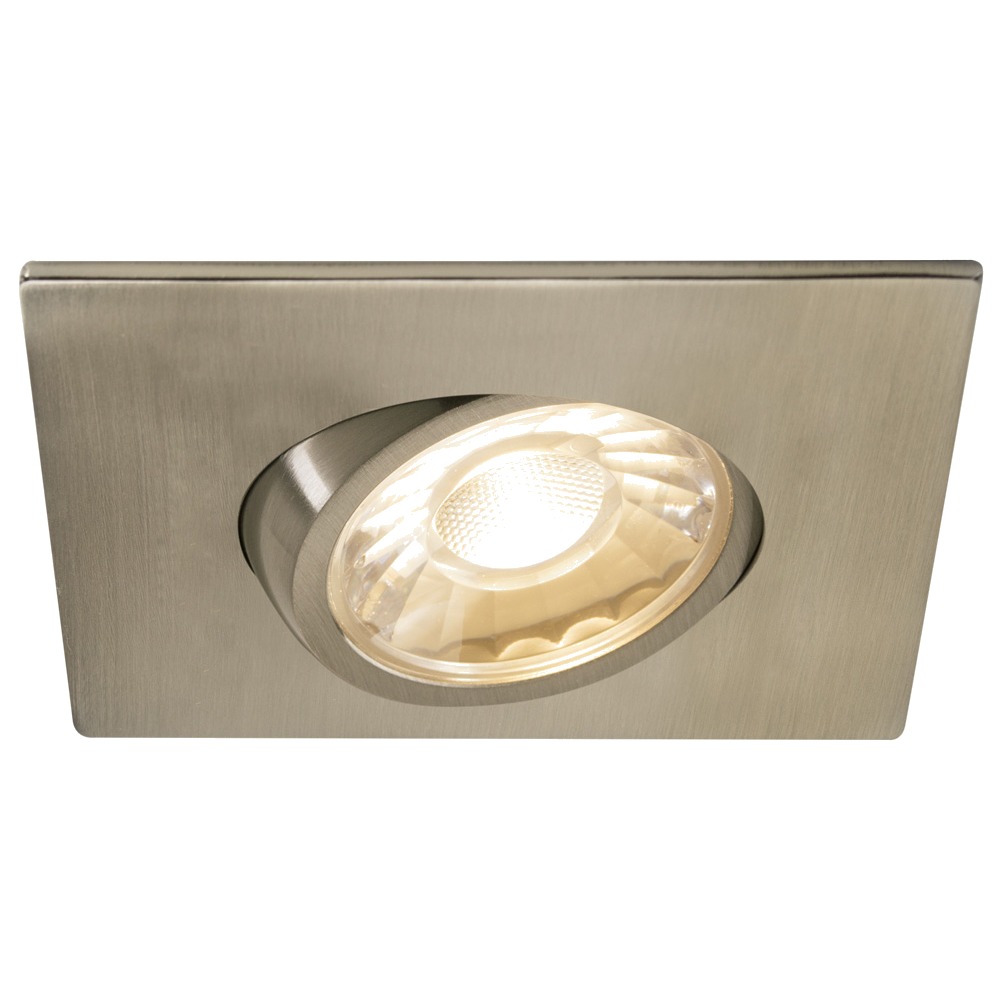

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-40K-90BN

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-40K-90BN
Brand: LITELINE
SKU: RA3S-7G-40K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3S-7G-40K-90BN

Brand: LITELINE

Give your ceilings a crisp, modern look with the 3" LUNA LED Square Gimbal Recessed Fixture, model RA3S-7G-40K-90BN in a brushed nickel trim finish. People call it a square downlight, a square pot light, a 3-inch gimbal recessed light or simply a recessed LED downlight — whatever you call it, it's the compact aimable fixture that lets you wash a wall, highlight artwork, light a backsplash or lay down a clean grid of general lighting over a living room. The adjustable gimbal tilts so you point the light exactly where you want it, and the small 3" aperture keeps the ceiling looking tidy instead of cluttered. It's a favourite for retrofit work, kitchen and bathroom renovations, hallways, offices, boutiques and restaurants alike.

Behind that tight square trim is a serious little engine: a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise all look true. The lens spreads a controlled 45° beam, and the fixture runs on 100-135V AC, 50/60Hz with a 170mA dimmable Class II electronic driver. It's dimmable with industry standard TRIAC/ELV dimmers, carries a power factor of 0.95, and is rated for a projected life of 70% at 33,000 hrs. The durable airtight aluminum body includes an anodized blue heat sink for maximum airflow, it's cETLus certified, suitable for wet locations, approved for direct contact with insulation, operates from -40°C to +40°C (-40°F to +104°F) and is backed by a lifetime warranty. Hole cut is Ø 2¾" (70mm).

This one earns its place in kitchens, bathrooms and covered porches, over showers and in laundry rooms, in condo hallways, dental clinics, cafés and retail displays — anywhere Canadian homeowners and contractors need a small, tough, insulation-friendly downlight that handles humidity and cold. Want the same square gimbal in another finish or colour temperature? Look at the 3" Luna square gimbal 3000K brushed nickel, the 3" Luna square gimbal dim-to-warm black or the 3" Luna square gimbal dim-to-warm white. Order your RA3S-7G-40K-90BN today and light the room the way you pictured it.

Built to last, built to install fast
The LUNA 3" square gimbal is made from a durable airtight aluminum body with an adjustable gimbal, so the fixture stays sealed against the ceiling plane while the light head tilts to aim exactly where you need it. An anodized blue heat sink sits behind the LED module to keep airflow — and therefore performance — at its maximum. Two spring loaded clips let the housing snap into virtually any ceiling material, which is why this downlight is such a natural fit for retrofit jobs where you're working through a Ø 2¾" (70mm) hole cut in drywall, plaster or panelling.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90, a level of colour rendering that keeps paint samples, cabinetry, tile and merchandise looking exactly as they should. The lens delivers a 45° beam spread, wide enough for general lighting yet controlled enough for accent work, and efficiency lands at 96 lumens per watt. Dimming is handled by a 170mA dimmable Class II electronic driver compatible with industry standard TRIAC/ELV dimmers, so you can take the room from working bright to relaxed in the evening. Both LM79 and LM80 testing are documented for this family.

Technical specifications
SKU: RA3S-7G-40K-90BN
Brand: LITELINE
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per Watt: 96
CRI: 90
Beam Angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power Factor: 0.95
Hole Cut: Ø 2¾" (70mm)
Operating Temperature: -40°C+40°C (-40°F+104°F)
Projected Life: 70% @ 33,000 hrs
Class II: Yes
Certification: cETLus
Warranty: Lifetime

Wiring, driver and accessories
The extruded aluminum hardwire box houses the driver and uses three "Quick connect" push-in terminals for fast, tool-free wiring — a real time saver when you're installing a dozen recessed pot lights in a single afternoon. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Accessories are sold separately: the P-2810 2¾" round pre-mounting plate with driver attachment clip is made for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit adds hanger bars, brackets and screws, the SLM-60-FC 60" flexible connector is available, and the VBE-1, VBE-2, VBE-3 and VBE-4 vapour barrier extenders cover new construction and remodel applications — a detail that matters in Canadian builds where a recessed lighting vapor barrier is part of the envelope. Smart control options include the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer, 120V, and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-Way Switch, both compatible with the WiZ App.

Applications, matching fixtures and documentation
Because it's suitable for wet locations and approved for direct contact with insulation, this square gimbal downlight works over a shower, on a covered porch or soffit, in a basement renovation with sprayed insulation, and just as well in a boutique, a clinic corridor or a café ceiling. Mix finishes across a project with the 3" Luna square gimbal 3000K black or the 3" Luna square gimbal 3000K white, or choose the dim-to-warm version in white when you want the light to warm up as it dims. The full technical PDF spec sheet is available in the Documentation tab for your submittals and electrical plans.
