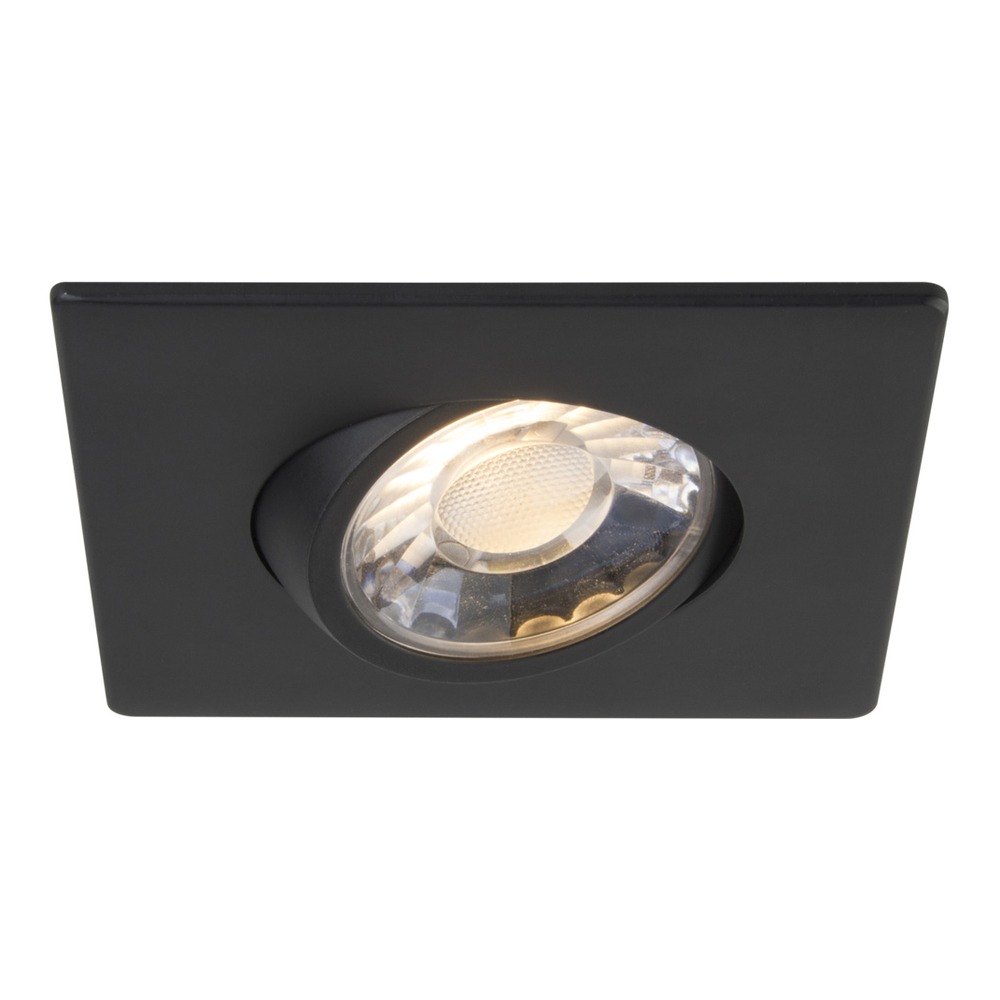

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-27K-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-27K-90BK
Brand: LITELINE
SKU: RA3S-7G-27K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-27K-90BK

Brand: LITELINE

Small aperture, big personality: the 3" LUNA LED square gimbal recessed fixture from LITELINE (SKU RA3S-7G-27K-90BK) is the little square downlight that lets you aim your light exactly where it matters. People call it a pot light, a 3 inch recessed light, a square gimbal trim or simply an adjustable LED downlight — whatever you call it, the tilting gimbal head swivels inside the square trim so you can wash a stone feature wall, graze a fireplace surround, highlight artwork or keep a straight, tidy row of light down a hallway. Its matte black trim disappears into dark ceilings and frames the beam crisply against white drywall, which is why designers keep specifying it for both homes and storefronts. Because it is built for retrofit work, it drops into an existing ceiling opening as easily as it goes into new construction.

Under the trim sits a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise look true. This version is the dim-to-warm model: colour temperature travels from 3000 K down to 1800 K as you lower the dimmer, giving you clean white light for working and a candle-like glow for the evening. It runs on 100-135V AC, 50/60Hz through a 170 mA dimmable Class II electronic driver with a 0.95 power factor, and it is compatible with industry standard TRIAC/ELV dimmers. The lens produces a 45° beam spread, and the airtight aluminum body with anodized blue heat sink keeps the LED cool for a projected life of 70% at 33,000 hours. Hole cut is Ø 2 3/4" (70 mm), overall height 2 5/16" (59 mm), and the fixture is cETLus certified, suitable for wet locations, approved for direct contact with insulation, and backed by a lifetime warranty.

This is the fixture for kitchens, bathrooms and covered porches, for stairwells, walk-in closets and basement renovations, and for boutiques, cafés, clinics and salons that want discreet accent light. Wet location approval and an operating range of -40°C to +40°C (-40°F to +104°F) suit Canadian realities, from a soffit over the front steps to an unheated three-season room. It coordinates with the same LUNA square gimbal in other finishes and colour temperatures, including 3" LUNA LED square gimbal recessed fixture RA3S-7G-27K-90BN, RA3S-7G-27K-90WH and the 3000 K RA3S-7G-30K-90BK. Plan your layout, add your dimmer and enjoy light you can point.

Built to last, built to aim
The LUNA 3" square gimbal is made around a durable airtight aluminum body with an adjustable gimbal that tilts 30°, so a straight row of trims can still send its beams toward a wall, a countertop or a display. An anodized blue heat sink sits behind the LED to maximize airflow and protect the light source, which is what allows the projected life of 70% at 33,000 hours and the lifetime warranty. Two spring-loaded clips hold the fixture in any ceiling material, and the compact 2 5/16" (59 mm) height keeps it friendly in tight joist bays and dropped bulkheads. The square trim is offered in black (BK), brushed nickel (BN) and white (WH); this SKU is the black version.

Light quality and dim-to-warm
The 7 watt module produces uniform intensity up to 745 lumens, for 96 lumens per watt, with a typical CRI of 90 that keeps reds, woods and textiles honest. What sets this model apart is dim-to-warm behaviour: as you dial the dimmer down, the colour temperature shifts from 3000 K toward 1800 K, so a bright kitchen at dinner prep becomes a soft, amber, restaurant-like room later in the evening — the same feeling incandescent lamps gave, without the heat or the energy bill. The lens holds a controlled 45° beam spread, tight enough to accent, wide enough to light a walkway or a vanity.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170 mA dimmable Class II electronic driver, 100-135V AC, 50/60Hz input, 0.95 power factor. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast — a real time saver when you are installing a dozen trims in one afternoon. Cut a Ø 2 3/4" (70 mm) hole, connect, push the driver box through the opening and squeeze the clips. The fixture is approved for direct contact with insulation and for wet and insulated ceilings, and it dims with industry standard TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Model: RA3S-7G-27K-90BK
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K (dim-to-warm)
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70 mm)
Height: 2 5/16" (59 mm)
Colour: Black
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Certification: cETLus, Class II, LM79, LM80
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime

Applications, accessories and documentation
Use it over an island in rows, angled into upper cabinets; in a bathroom or a shower area thanks to the wet location rating; in a finished basement where ceiling height is precious; on a covered porch or soffit; or in a boutique, café, clinic or hair salon where small square apertures look sharper than round ones. Accessories are sold separately: the P-2810 2 3/4" round pre-mounting plate with driver attachment clip is made for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit adds hanger bars, brackets and screws, and VBE-1 through VBE-4 vapour barrier extenders cover new construction and remodel situations — handy for anyone searching recessed lighting vapour barrier solutions. For smart control, the LC-CRTL-DIM-1 Wi-Fi dimmer and LC-CRTL-3WAY-1 Wi-Fi 3-way switch work with the WiZ App. Need other finishes or a fixed colour temperature? See 3" LUNA LED square gimbal recessed fixture RA3S-7G-DTW-90WH, RA3S-7G-35K-90BK or RA3S-7G-30K-90WH. The full technical PDF spec sheet is in the Documentation tab for dimensions, wiring details and submittal information.
