3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90BN

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90BN
Brand: LITELINE
SKU: RA3S-7G-30K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3S-7G-30K-90BN

Brand: LITELINE

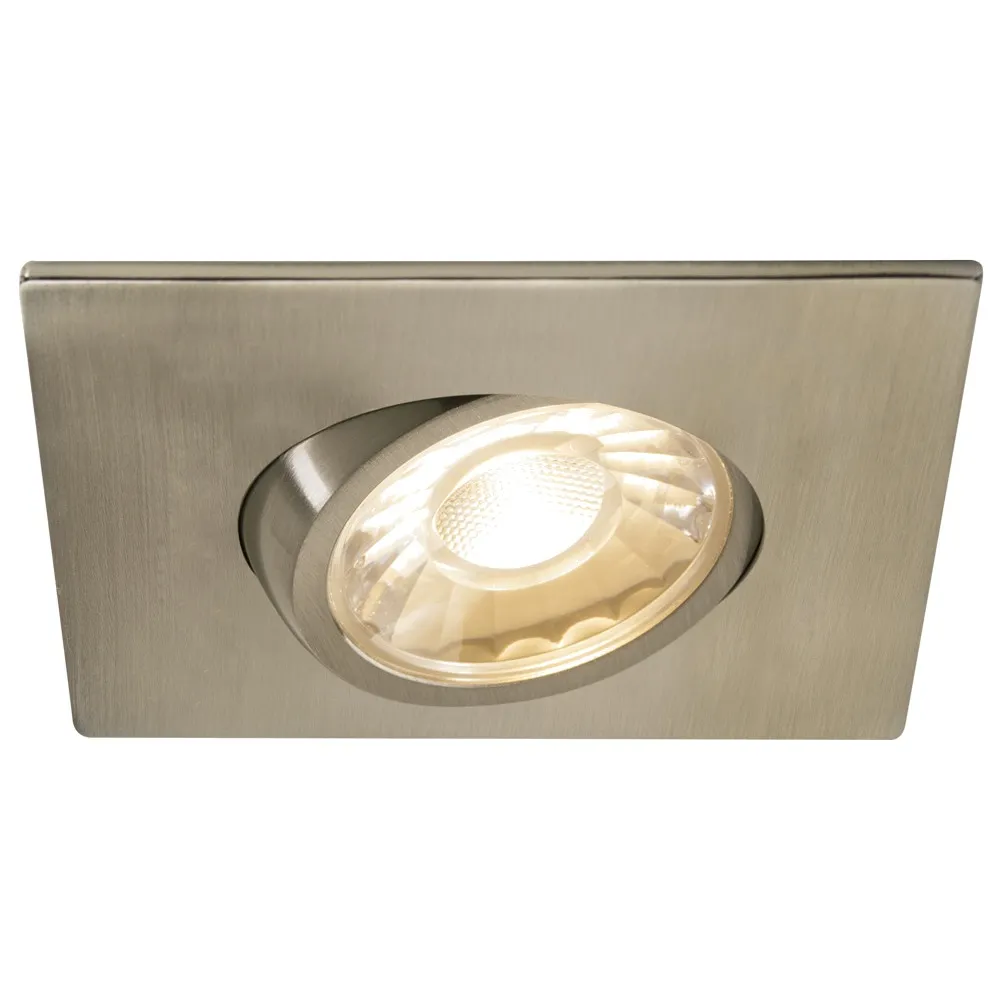

Small aperture, big personality: the 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE by LITELINE (SKU RA3S-7G-30K-90BN) is the tidy little downlight people are hunting for when they type "square downlights", "surface mount downlight" or simply "recessed lighting" into a search bar. Call it a square pot light, a mini LED downlight or an adjustable gimbal recessed light — the idea is the same: a compact square trim in a brushed nickel finish, with a tilting gimbal that lets you aim the beam exactly where you want it. It's built for retrofit work in existing ceilings as much as for new rooms, and it plays beautifully in kitchens, hallways, bedrooms, offices, boutiques and restaurants.

Under that clean trim sits a 7 watt LED module that delivers up to 745 lumens at a very efficient 96 lumens per watt, with a warm and flattering 3000 K colour temperature and a typical CRI of 90 that keeps wood grain, paint colours, skin tones and merchandise looking true. The lens shapes a controlled 45° beam spread, ideal for washing a counter or grazing a feature wall. The durable airtight aluminum body includes an anodized blue heat sink for maximum airflow around the light source, and the 170mA class II electronic driver runs on 100-135V AC, 50/60Hz, with a 0.95 power factor. It's dimmable with industry standard TRIAC/ELV dimmers, cETLus certified, rated for wet locations, approved for direct contact with insulation, operates from -40°C to +40°C (-40°F to +104°F), and is backed by a lifetime warranty with projected life of 70% at 33,000 hrs.

This little square is right at home over a kitchen island, in a hallway, a walk-in closet, a covered porch or a bathroom ceiling where wet location approval matters — and in Canadian builds where the fixture sits against insulation, that approval is not a detail. The Ø 2¾" (70mm) hole cut makes it easy to slot into a ceiling grid of existing openings. Want the same fixture elsewhere in the project? There's a matching white and black version, and a dim-to-warm option in 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90BK. Aim it, dim it, forget it — add the brushed nickel LUNA to your cart and light the room properly.

Built to last, built to aim
The LUNA 3" square gimbal starts with a durable airtight aluminum body paired with an adjustable gimbal, so you can tilt the light source toward artwork, a backsplash or a stairwell instead of settling for a straight-down wash. An anodized blue heat sink is built in to provide maximum airflow for the LED light source, which is how a fixture this compact keeps its output steady. The brushed nickel (BN) trim reads modern without shouting, and the square aperture gives ceilings a crisp, architectural rhythm that round pot lights can't match.

Light quality you can see
This is a general application fixture with a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens. The 3000 K colour temperature is the classic warm-white Canadian homeowners ask for in living rooms and kitchens, while a typical CRI of 90 renders colours, finishes and food honestly — a real advantage in retail displays and restaurants. The lens delivers a 45° beam spread, a sweet spot between a broad room wash and a tighter accent, and efficiency lands at 96 lumens per watt.

Wiring, dimming and installation
The extruded aluminum hardwire box houses a 170mA dimmable class II electronic LED driver with 100-135V AC input, and an 18" (457mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast, and two spring loaded clips let the fixture attach to any ceiling material. Colour temperature dimming is available on the dim-to-warm models of this family; this 3000 K version dims with industry standard TRIAC/ELV dimmers. Cut a Ø 2¾" (70mm) hole, push in the clips and you're done — a genuinely easy retrofit downlight.

Technical specifications
Model: RA3S-7G-30K-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2¾" (70mm)
Operating temperature: -40°C+40°C (-40°F+104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Class II: Yes
LM79 / LM80: Yes
Warranty: Lifetime

Where it works and what goes with it
Think kitchen perimeters, hallways, bedrooms, basements, covered entries, bathrooms and spa areas thanks to the wet location rating, plus offices, clinics, boutiques and cafés where 90 CRI makes products and interiors look their best. Accessories are sold separately: the P-2810 2¾" round pre-mounting plate with driver attachment clip is made for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit includes hanger bars, brackets and screws, and the VBE-1 through VBE-4 vapour barrier extenders cover new construction and remodel applications — a frequent requirement in Canadian ceilings. Matching this fixture across a project is simple: pick 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90WH for a white trim, 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90BK in black, or go dim-to-warm with 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90WH. The full technical PDF (RA3S-7G-30K-90BN Spec Sheet) is in the Documentation tab with dimensions, wiring details and the accessory list.
