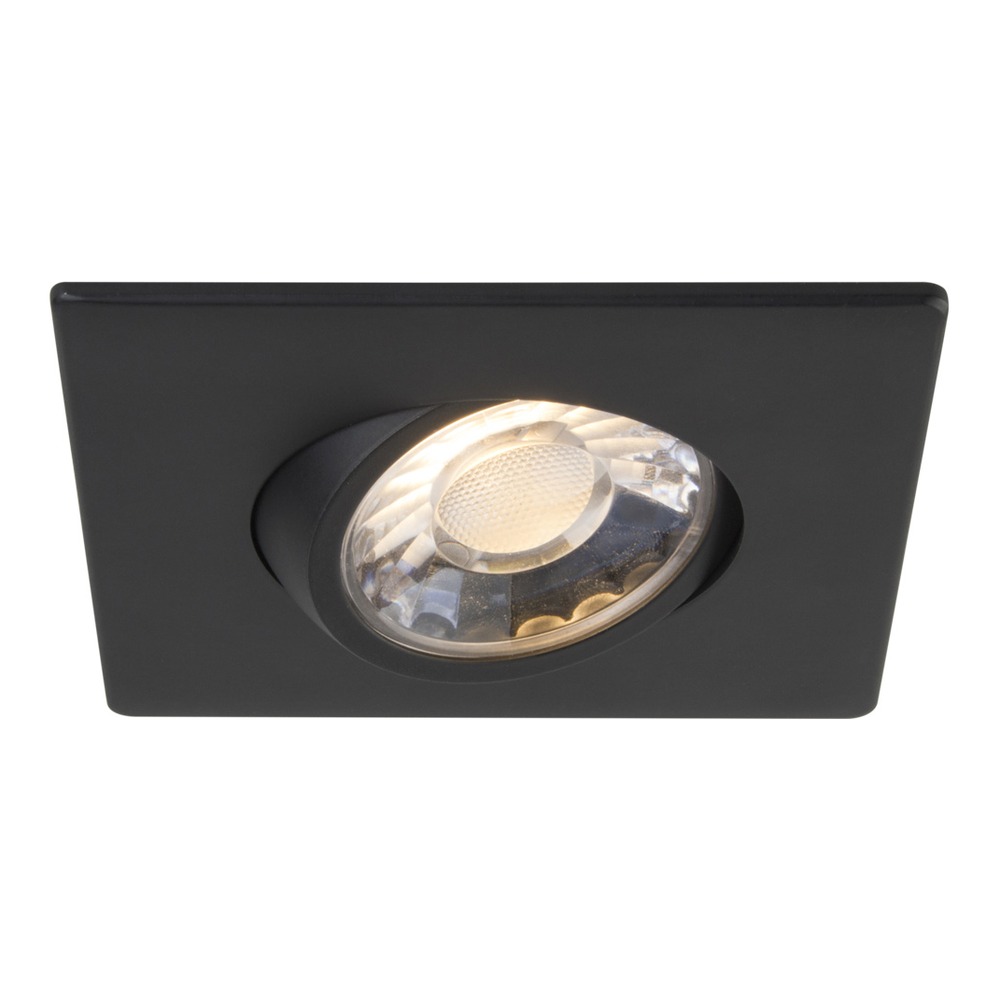

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90BK
Brand: LITELINE
SKU: RA3S-7G-50K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-50K-90BK

Brand: LITELINE

Give any room that crisp, modern pop of light it deserves with the 3" LUNA LED Square Gimbal Recessed Fixture from LITELINE, model RA3S-7G-50K-90BK. Call it what you like — a square downlight, a square pot light, an adjustable gimbal recessed light or simply a 3-inch LED recessed fixture — this compact black trim does the same job beautifully: it tucks into the ceiling, then tilts so you can aim the beam exactly where you want it. Kitchens, hallways, feature walls, retail displays, offices and finished basements all benefit from that kind of control, and because the head pivots, one row of fixtures can wash a wall, highlight artwork or simply light a work surface without glare in your eyes.

Inside the durable airtight aluminum body, a 7 watt LED module delivers up to 745 lumens at an efficient 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise all look true. The lens creates a 45° beam spread, and an anodized blue heat sink keeps air moving around the LED source for long, steady performance — projected life is 70% at 33,000 hours, backed by a Lifetime warranty. The 170mA dimmable Class II electronic driver runs on 100-135V AC, 50/60Hz, with a power factor of 0.95, and the fixture dims with industry standard TRIAC/ELV dimmers. It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, and rated for operating temperatures from -40°C to +40°C (-40°F to +104°F).

From a Montréal condo reno to a Prairie retail counter, this little fixture earns its place: bathrooms and showers (wet location approved), covered porches and soffits, sloped ceilings, closets, hotel rooms, boutiques and cafés. Installation is refreshingly simple — a Ø 2 3/4" (70 mm) hole cut, two spring-loaded clips that grip nearly any ceiling material, three quick-connect push-in terminals and an 18" FT6 rated cable with a DC 2.1 connector between the extruded aluminum hardwire box and the fixture, approved for plenums and suspended ceilings. Prefer a lighter trim or a warm-dimming look? Compare the 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90BK or the white 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90WH. Add this one to your lighting plan today.

Built to last, built to aim
The LUNA 3" square gimbal is made around a durable airtight aluminum body with an adjustable gimbal, so the light head tilts 30° to direct the beam where the design calls for it. An anodized blue heat sink sits behind the LED source to maximize airflow and protect light output over time — the kind of detail that separates an adjustable recessed downlight you install once from one you replace. The square trim gives a sharp, architectural line in the ceiling, and the black finish (the 90BK code in this SKU) recesses visually into the aperture, which keeps the ceiling calm and the light the star of the show.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens, which works out to 96 lumens per watt — real energy efficiency compared with the halogen and incandescent pot lights it replaces, often using a fraction of the power for similar usable light. A typical CRI of 90 renders colours honestly, so your quartz counter, oak floor or clothing rack looks the way it should. The lens delivers a controlled 45° beam spread, tight enough for accenting and wide enough for general room lighting when the fixtures are spaced in a grid.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
Certification: cETLus
Class II: Yes
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2 3/4" (70mm)
Input: 100-135V AC, 50/60Hz
LM79 / LM80: Yes
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W
Operating Temperature: -40°C+40°C (-40°F+104°F)

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, so the box can sit off to the side in the joist bay. Three quick-connect push-in terminals make wiring fast — a real time-saver when you are installing a dozen square pot lights in one afternoon. Two spring-loaded clips hold the fixture to nearly any ceiling material through a Ø 2 3/4" (70 mm) hole, and the unit is approved for direct contact with insulation, so no need to build a box above it in an insulated attic ceiling. Dimming uses standard TRIAC/ELV wall dimmers; accessories such as vapour barrier extenders, a new construction mounting kit and a pre-mounting plate are available separately for new builds, remodels and recessed lighting vapor barrier situations in Canadian climates.

Where it works and what to read
Think ensuite bathrooms and shower ceilings (wet location approved), covered entries and soffits, kitchen perimeters, basement renos with limited plenum depth, retail and boutique display ceilings, restaurant seating areas and office corridors. If your project calls for a different colour temperature or a different trim finish, the same body is offered as the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90BK, the brushed nickel 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BN, or the warm-dimming 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90WH. The full technical PDF for this model is in the Documentation tab — download it for dimensions, wiring details and cut-out information before you order.
