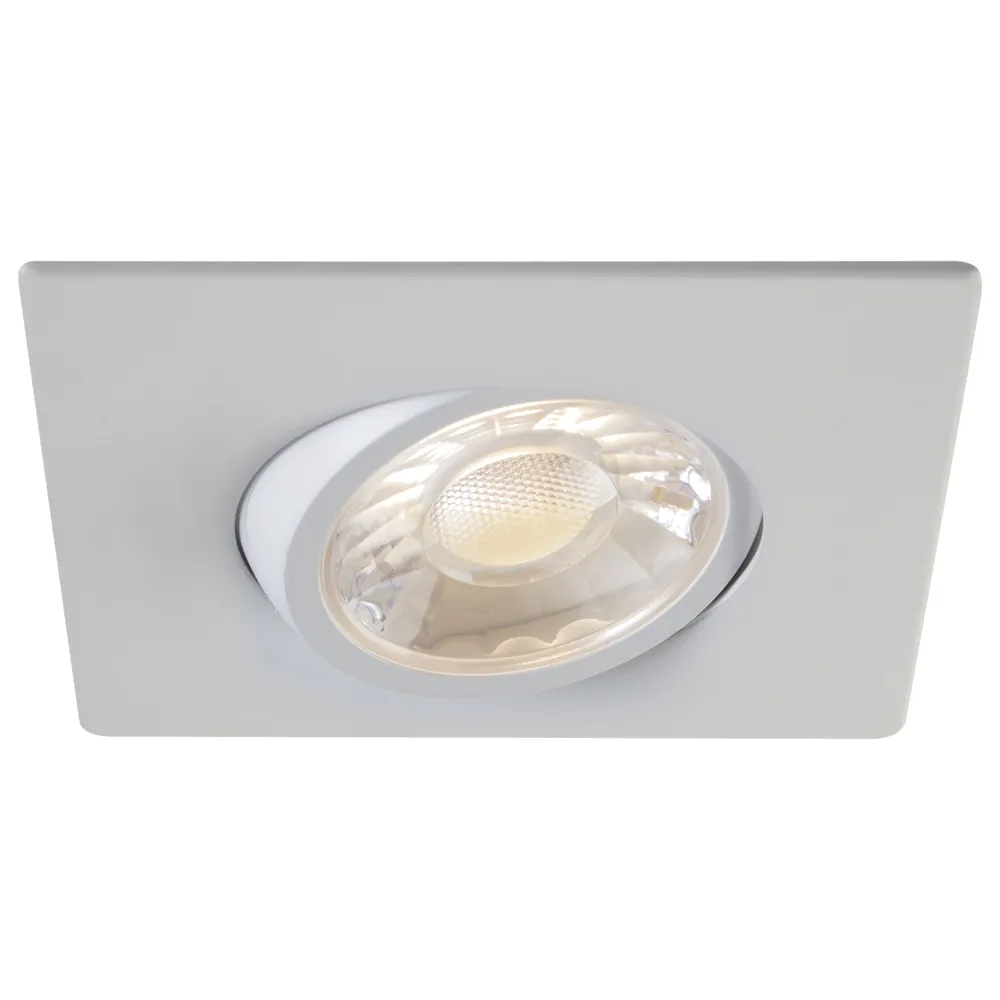

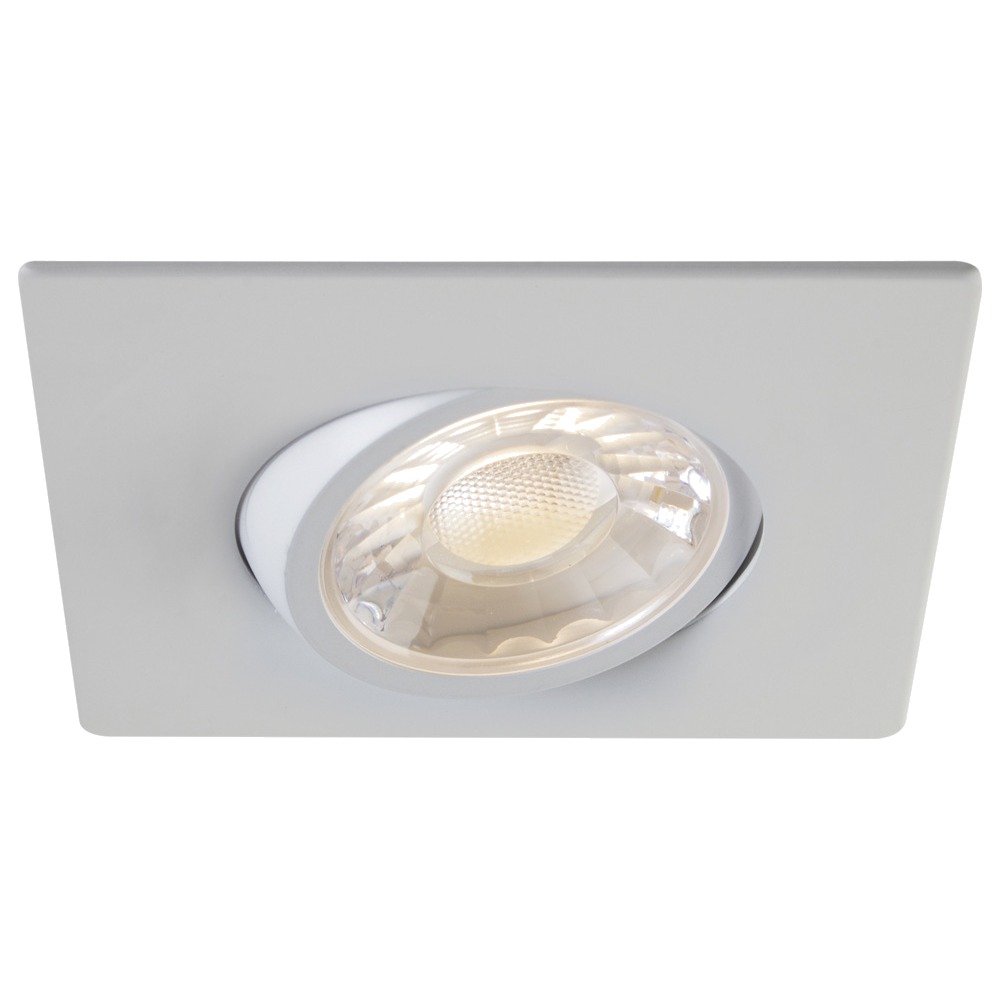

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90WH

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90WH
Brand: LITELINE
SKU: RA3S-7G-35K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-35K-90WH

Brand: LITELINE

Small aperture, big personality: the 3" LUNA LED square gimbal recessed fixture from LITELINE gives you a crisp square trim with a tilting head, so light goes exactly where you want it. People shop for this style under a lot of names — square downlights, gimbal pot light, directional recessed downlight, adjustable 3 inch LED insert — and they all point to the same thing: a compact, high-performance recessed lighting solution that replaces bulky cans and dated halogen trims. Use it to wash a stone fireplace, graze a feature wall, light a kitchen island, brighten a hallway, or add clean accent light over a shower or covered entry. Its low profile makes it a favourite for retrofit work where ceiling space is tight and the finished look has to be flawless.

Under the hood, this model is built around a 7 watt LED module producing up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and food look true. The gimbal tilts 30°, the lens delivers a 45° beam spread, and the fixture runs on 100-135V AC, 50/60Hz through a 170mA dimmable Class II electronic driver. It is dimmable with standard TRIAC/ELV dimmers, carries a power factor of 0.95, and is rated for -40 °C to +40 °C operating temperature. The airtight aluminum body with anodized blue heat sink is suitable for wet locations, approved for direct contact with insulation, cETLus certified, LM79 and LM80 tested, with projected life of 70% at 33,000 hours and a lifetime warranty. Trim finish here is white; hole cut is Ø 2 3/4" (70 mm).

From a Muskoka cottage soffit to a Montréal condo renovation or a boutique fitting room, this square gimbal earns its keep in kitchens, bathrooms, basements, corridors, retail displays, offices and covered porches. Two spring-loaded clips let it mount in virtually any ceiling material, and the 18" FT6 cable with DC 2.1 connector is approved for plenums and suspended ceilings. Prefer a warmer glow? See the 3" Luna LED square gimbal recessed fixture 30K white or the dim-to-warm 3" Luna LED square gimbal recessed fixture DTW white. Order SKU RA3S-7G-35K-90WH and light your project with confidence.

Built to last, built to disappear into the ceiling
The LUNA 3" square gimbal uses a durable airtight aluminum body with an adjustable gimbal head that tilts 30°, so you can aim light at artwork, cabinetry or a feature wall without swapping fixtures. An anodized blue heat sink maximizes airflow around the LED source, which is what keeps colour stable and output steady year after year. Two spring-loaded clips let the fixture attach to virtually any ceiling material — drywall, plaster, wood, or a suspended tile — with a clean Ø 2 3/4" (70 mm) hole cut. The unit measures 3 11/32" (85 mm) across, 4 5/8" (117 mm) at the housing, 2 5/16" (59 mm) and 1 13/16" (46 mm) in profile, with a 1 1/2" (38 mm) dimension noted on the drawing, keeping the assembly shallow enough for tight joist bays and retrofit ceilings.

Light quality that flatters everything
A 7 watt LED module delivers up to 745 lumens of uniform intensity at 96 lumens per watt — real efficiency versus old halogen trims, with no hot spots or dark centres. The typical CRI of 90 renders whites clean and colours honest, which matters in kitchens, closets, bathrooms and retail. The lens gives a controlled 45° beam spread, a sweet spot between general ambient light and accent punch, so a row of them can light a whole room or highlight a single shelf.

Technical specifications
SKU: RA3S-7G-35K-90WH
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Class II: Yes
Power factor: 0.95
Hole cut: Ø 2 3/4" (70 mm)
Operating temperature: -40 °C to +40 °C (-40 °F to +104 °F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80
Warranty: Lifetime

Wiring, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, which keeps inspectors happy on commercial jobs. Three quick connect push-in terminals make wiring fast — no wire nuts to fight with overhead. The fixture is compatible with industry standard TRIAC/ELV dimmers; Liteline publishes its compatible dimmer list at liteline.com/lunadimmers. Because it is approved for direct contact with insulation and rated for wet locations, it can go in insulated attic ceilings, over showers and under covered exterior soffits.

Applications, accessories and documentation
Think kitchen perimeters and islands, bathroom and shower ceilings, hallways, stairs, basement renos, home offices, retail displays, restaurant seating areas and covered entries. Accessories are sold separately and include the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the SLM-60-FC 60" flexible connector, and vapour barrier extenders VBE-1 (new construction), VBE-2, VBE-3 and VBE-4 (remodel) — handy answers to the classic recessed lighting vapour barrier question in Canadian builds. Matching looks in the same family include the 3" Luna LED square gimbal recessed fixture 35K black, the 3" Luna LED square gimbal recessed fixture 35K brushed nickel and the warmer 3" Luna LED square gimbal recessed fixture 27K white. The full technical PDF spec sheet is available in the Documentation tab for layouts, dimensions and submittals.
