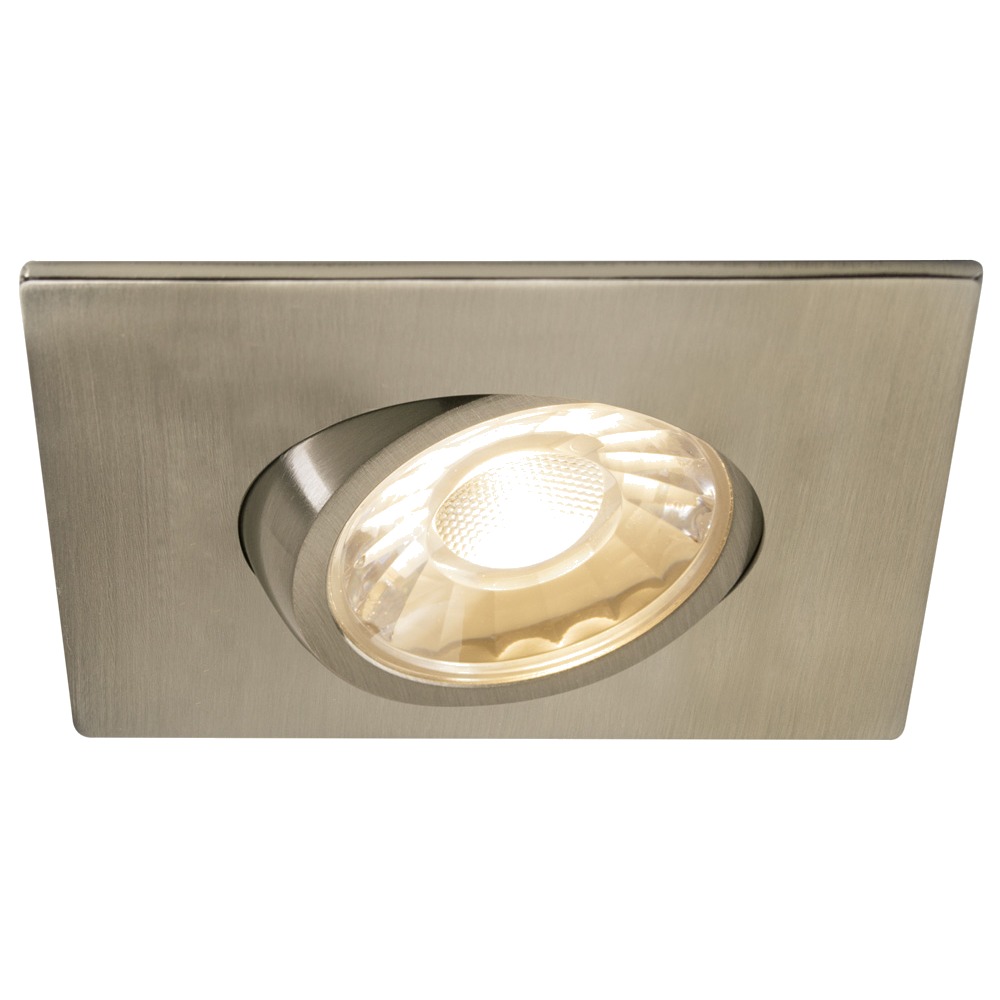

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90BN

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90BN
Brand: LITELINE
SKU: RA3S-7G-35K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3S-7G-35K-90BN

Brand: LITELINE

Small aperture, big personality: the 3" LUNA LED square gimbal recessed fixture from LITELINE (SKU RA3S-7G-35K-90BN) is the aiming pot light designers reach for when a ceiling needs to look clean and do real work. People search for it as a 3 inch square downlight, a gimbal recessed light, an adjustable recessed LED downlight or simply a tilting pot light — it is all of those in one compact housing with a brushed nickel trim. The square trim gives you crisp architectural lines instead of the usual round hole, while the adjustable gimbal lets you tip the beam toward artwork, a stone feature wall, a kitchen island edge or a display shelf. It suits both new construction and retrofit work, in homes and in commercial spaces, wherever accent light and general light have to come from the same tidy opening.

Behind that small trim sits a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise read true. The 45° beam spread keeps light controlled and glare low, and the airtight aluminum body with anodized blue heat sink pulls heat away from the LED for a projected life of 70% at 33,000 hrs, backed by a lifetime warranty. The fixture runs on 100-135V AC, 50/60Hz through a 170mA dimmable Class II electronic driver, dims smoothly on industry standard TRIAC/ELV dimmers, carries a 0.95 power factor and is cETLus certified, LM79 and LM80 tested. It is rated for wet locations, approved for direct contact with insulation, operates from -40°C to +40°C, and drops into a Ø 2 3/4" (70mm) hole cut with two spring loaded clips.

This is the little fixture that makes kitchens, hallways, bathrooms, covered porches, stairwells, basements, boutiques, cafés and offices look finished. For Canadian builds, the wet location rating and insulated-ceiling approval matter: soffits, showers and tight attic bays are all fair game, and the -40°C cold start handles our winters. Want the same 3" LUNA gimbal in another colour temperature or finish? Compare the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90BN, the warmer 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BN, or the dim-to-warm 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90WH. Plan your layout, add it to your order and light the room the way you pictured it.

Built to last, built to disappear into the ceiling
The LUNA 3" square gimbal is made around a durable airtight aluminum body with an adjustable gimbal and an anodized blue heat sink that maximizes airflow around the LED light source. Thermal control is what keeps a small-aperture recessed downlight bright and colour-stable year after year, and here it supports a projected life of 70% @ 33,000 hrs plus a lifetime warranty. The square brushed nickel trim (BN in the ordering guide) sits tight to the ceiling for a flush, architectural look, and the gimbal tilts so you can aim the beam instead of settling for whatever lands straight down.

Light quality you can see
The 7 watt LED module produces up to 745 lumens with uniform intensity and a typical CRI of 90, so colours stay honest under the light — important over countertops, in retail displays, in bathrooms and anywhere finishes are being judged. The lens delivers a 45° beam spread, a sweet spot between a wide wash and a tight accent, and at 96 lumens per watt you get that output from very little energy, often up to 80% less than the halogen fixtures this style replaces. Dimming is smooth on industry standard TRIAC/ELV dimmers; for a verified dimmer list, consult the manufacturer's compatible dimmer resource.

Technical specifications
SKU: RA3S-7G-35K-90BN
Brand: LITELINE
Application: Ceiling Recess Mount
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Driver: 170mA dimmable Class II electronic
Dimming: Yes — TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Approved location: Wet / Insulated Ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Certification: cETLus, LM79, LM80
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime

Wiring and installation
The fixture ships with an extruded aluminum hardwire box housing the driver, plus an 18" FT6 rated cable with a DC 2.1 connector between driver and fixture — approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make the line-voltage connection fast, and two spring loaded clips let the housing attach to any ceiling material. Cut a Ø 2 3/4" (70mm) hole, connect, tuck the box into the cavity and clip it in. Because it is approved for direct contact with insulation and rated for wet locations, it works in insulated attics, soffits and shower ceilings. Accessories listed on the spec sheet are sold separately and include the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the VBE-1 vapour barrier extender for new construction and the VBE-2, VBE-3 and VBE-4 extenders for remodel applications — an answer to the common "recessed lighting vapor barrier" question in Canadian builds. Smart control options include the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer, 120V, and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-Way Switch, both compatible with the WiZ App.

Applications, matching fixtures and documentation
Run a row of these over a kitchen island, angle them at a fireplace surround, light a hallway of art, wash a boutique's wall of product, or use them as tidy square downlights in an office, clinic or café. Mixing finishes and colour temperatures across one project is easy: see the 3" Luna LED square gimbal recessed fixture RA3S-7G-35K-90WH, the 3" Luna LED square gimbal recessed fixture RA3S-7G-35K-90BK, or the dim-to-warm 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90BK. The full technical PDF (RA3S-7G-35K-90BN Spec Sheet) with dimensions, ordering guide and accessory list is in the Documentation tab.
