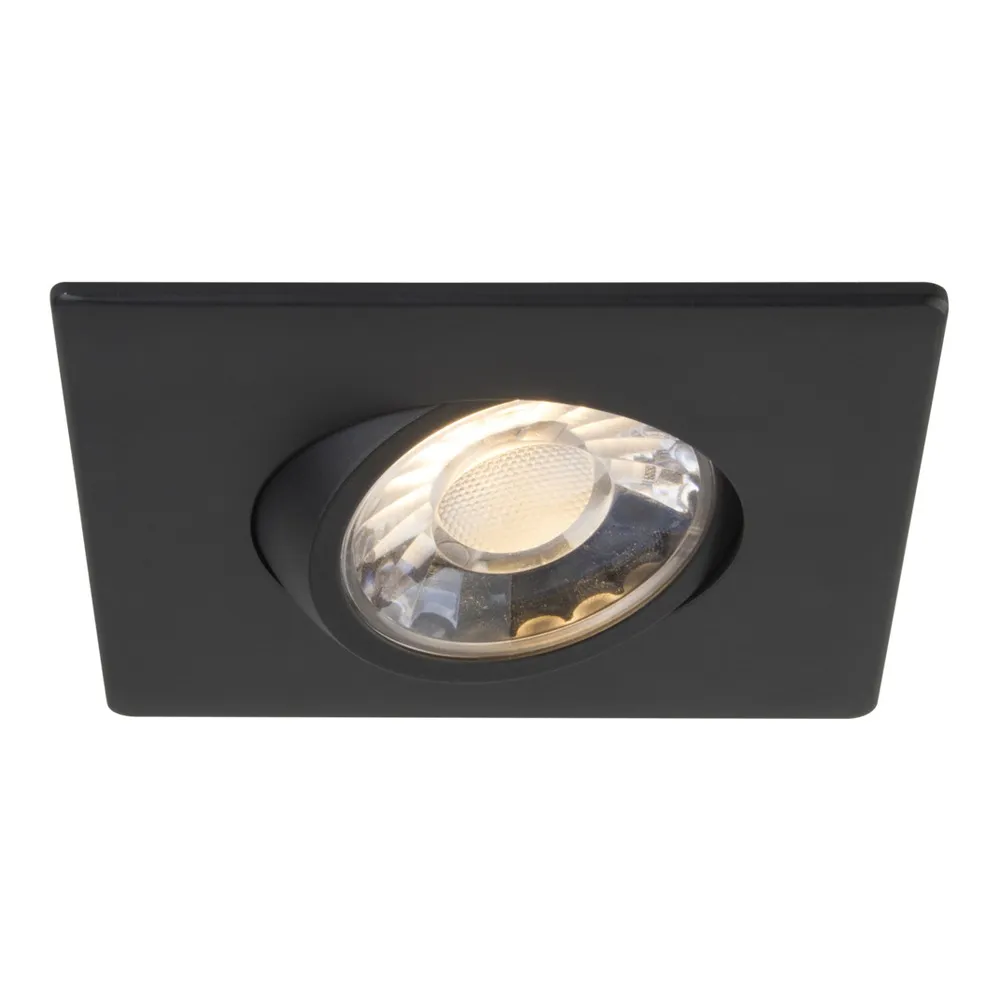

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-40K-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-40K-90BK
Brand: LITELINE
SKU: RA3S-7G-40K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-40K-90BK

Brand: LITELINE

Crisp, aimable light in a shape that finally breaks the mould: the 3" LUNA LED square gimbal recessed fixture (SKU RA3S-7G-40K-90BK) from LITELINE is the little square downlight that lets you point light exactly where you want it. Shoppers call it a square pot light, a mini recessed downlight, an adjustable gimbal light or simply a 3-inch square LED downlight — it is all of those in one tidy black trim. The gimbal tilts so you can wash an accent wall, graze a stone fireplace, highlight artwork, or keep a straight, even line of general lighting across a hallway. Because it is built for retrofit work, it drops into an existing ceiling without tearing everything apart, which is exactly what homeowners renovating and contractors on tight schedules want.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, so you get real punch from a tiny aperture while cutting energy use dramatically compared to halogen. The typical CRI of 90 makes wood grain, paint colours, skin tones and food look the way they should. The lens gives a 45° beam spread, and the fixture is dimmable with industry standard TRIAC/ELV dimmers through its 170mA dimmable class II electronic driver running on 100-135V AC, 50/60Hz, with a power factor of 0.95. It is cETLus certified, approved for wet locations and for direct contact with insulation, operates from -40°C to +40°C (-40°F to +104°F), carries a projected life of 70% @ 33,000 hrs and a lifetime warranty. Hole cut is Ø 2 3/4" (70mm).

This one earns its keep in kitchens, bathrooms and showers, covered porches and soffits, basements, retail displays, restaurants, offices and salons — anywhere a Canadian project needs small, tough, good-looking light that handles humidity and insulated ceilings. Two spring loaded clips let it attach to any ceiling material, and three quick connect push-in terminals speed up the wiring. Want a warmer scene? Compare it with the 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90BK, the cozier RA3S-7G-27K-90BK, or the dim-to-warm RA3S-7G-DTW-90BK. Order yours and give your ceiling the clean, adjustable look it deserves.

Built to last, built to install fast
The Luna 3" square gimbal starts with a durable airtight aluminum body paired with an adjustable gimbal, so the light aims where the design needs it instead of straight down. An anodized blue heat sink keeps airflow moving around the LED light source, which is how a compact square recessed downlight keeps its output stable year after year. Two spring loaded clips let the fixture attach to any ceiling material, and the hole cut is Ø 2 3/4" (70mm) — a friendly size for both retrofit and new work. It is approved for direct contact with insulation, so you are not fighting your ceiling insulation on a renovation.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens, at an efficiency of 96 lumens per watt. With a typical CRI of 90, colours stay honest: white cabinets read white, warm oak reads warm, and merchandise looks like it does in daylight. The lens delivers a 45° beam spread, tight enough for accenting yet broad enough for general lighting when the fixtures are laid out on a regular grid. LM79 and LM80 testing is on file for this platform, and projected life is 70% @ 33,000 hrs.

Electrical and dimming
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable class II electronic LED driver with 100-135V AC input, 50/60Hz. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make the wiring quick and clean. Dimming works with industry standard TRIAC/ELV dimmers; power factor is 0.95. The fixture is cETLus certified, class II, suitable for wet locations, and rated for operating temperatures of -40°C to +40°C (-40°F to +104°F).

Technical specifications
SKU: RA3S-7G-40K-90BK
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per Watt: 96
CRI: 90
Beam Angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power Factor: 0.95
Hole Cut: Ø 2 3/4" (70mm)
Certification: cETLus
Class II: Yes
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime

Where to use it, and what goes with it
Think kitchen islands and toe-kick-free ceilings, ensuite showers, mudrooms, covered entries and soffits, finished basements, boutique shelving, café counters, reception desks and treatment rooms — the wet location rating and insulated ceiling approval cover most Canadian realities, including cold garages and porches thanks to the -40°C rating. Accessories are sold separately and, per the documentation, include the P-2810 pre-mounting plate with driver attachment clip for 3" Luna LED fixtures, the P-NCMK-1 new construction mounting kit and VBE vapour barrier extenders for new construction or remodel work. To mix colour temperatures in the same project, look at the RA3S-7G-35K-90BK or the white-trim RA3S-7G-30K-90WH. The full technical PDF spec sheet for this model is available in the Documentation tab.
