3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90BK

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-35K-90BK
Brand: LITELINE
SKU: RA3S-7G-35K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-35K-90BK

Brand: LITELINE

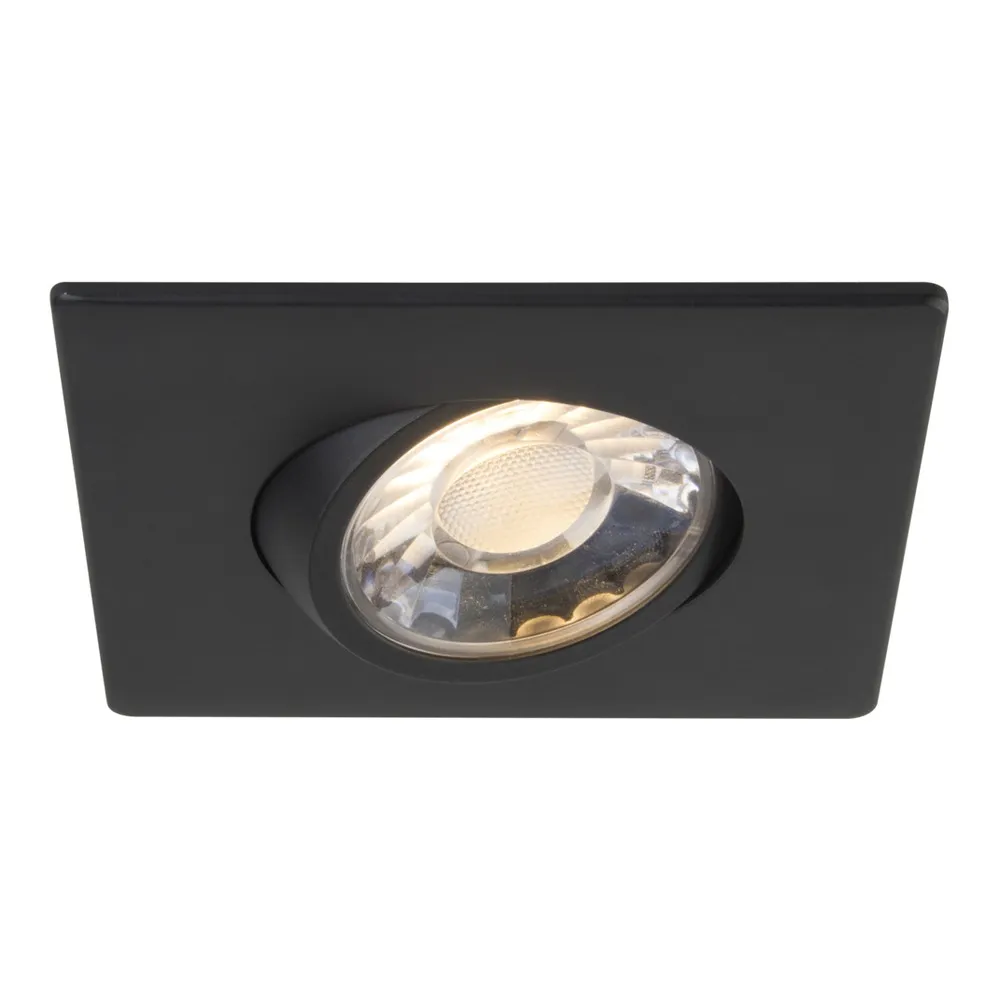

Small aperture, big impact: meet the 3" LUNA LED square gimbal recessed fixture, SKU RA3S-7G-35K-90BK, a LITELINE square downlight built for people who want clean ceilings and light that actually goes where they point it. Call it what you like — a square pot light, a mini recessed gimbal, an adjustable recessed downlight — this 3-inch fixture drops into a small hole, tilts to aim, and disappears into the ceiling with a crisp black trim. It's a favourite for kitchens, hallways, stairwells, retail displays and any renovation where you want accent light on artwork, a backsplash or a feature wall without a bulky housing hanging below the drywall.

Under that tidy trim sits a durable airtight aluminum body with an adjustable gimbal and an anodized blue heat sink that keeps airflow moving around the LED. The 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood grain and paint colours read true. The lens produces a 45° beam spread and the gimbal tilts 30°. It runs on a 170mA dimmable Class II electronic driver, 100-135V AC, 50/60Hz, with a 0.95 power factor, and it's dimmable with industry standard TRIAC/ELV dimmers. Hole cut is Ø 2 3/4" (70mm), the driver ships with an 18" (457mm) FT6 rated cable and a DC 2.1 connector, and two spring loaded clips grip any ceiling material. It's cETLus certified, suitable for wet locations, approved for direct contact with insulation, operates from -40°C to +40°C, is rated 70% @ 33,000 hrs and carries a Lifetime warranty.

From a Montréal condo kitchen to a covered porch, a basement reno, a boutique or a café, this little gimbal handles it. Wet location approval and the -40°C rating make it a smart pick for Canadian soffits, exterior overhangs and bathrooms, while IC approval means no clearance headaches in insulated ceilings. Want a different look or feel? The same fixture is offered as 3" LUNA LED square gimbal recessed fixture RA3S-7G-35K-90WH in white, RA3S-7G-35K-90BN in brushed nickel, in warmer tones with RA3S-7G-27K-90BK, or as the dim-to-warm version RA3S-7G-DTW-90BK. Plan your layout and light your project right.

Built to last, built to aim
The LUNA 3" square gimbal is made around a durable airtight aluminum body with an adjustable gimbal, so you can tilt the optic to graze a stone wall, wash a bookcase or highlight a kitchen island instead of just lighting the floor. An anodized blue heat sink sits behind the LED module to provide maximum airflow to the light source, which is exactly what keeps output and colour stable year after year in a tight, insulated ceiling cavity. The black trim keeps the aperture visually quiet, while the square shape lines up beautifully with cabinets, beams and tile joints — a detail architects and designers ask for constantly on square downlights.

Light quality you can trust
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, at 96 lumens per watt — real efficiency compared with old halogen pot lights, which burned far more energy for the same punch. A typical CRI of 90 means colours stay honest: merchandise looks like it does in daylight, food looks appetizing, and paint samples don't shift. The fixture lens provides a 45° beam spread, tight enough for accenting yet broad enough for general recessed downlighting, and the gimbal offers 30° of tilt for aiming.

Technical specifications
Model: RA3S-7G-35K-90BK
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per Watt: 96
CRI: 90
Beam Angle: 45°
Input: 100-135V AC, 50 / 60Hz
Dimming: Yes — TRIAC/ELV
Power Factor: 0.95
Hole Cut: Ø 2 3/4" (70mm)
Class II: Yes
Operating Temperature: -40°C+40°C (-40°F+104°F)
Projected Life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Wiring, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input. Three "Quick connect" push-in terminals make wiring fast — no wire nuts to fight with inside a joist bay. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, so commercial installs stay code-friendly. Two spring loaded clips let the fixture attach to any ceiling material: drywall, plaster, wood or T-bar tile. Cut a Ø 2 3/4" (70mm) hole, connect, push up, aim. The fixture is compatible with industry standard TRIAC/ELV dimmers — always confirm your dimmer against the manufacturer's compatible dimmer list before you order a full job's worth.

Where it works and what's available
Because it's suitable for wet locations and approved for direct contact with insulation, this LED gimbal handles bathrooms, showers with the right clearance, covered porches, soffits and exterior overhangs as comfortably as it handles a living room ceiling — a real advantage in Canadian climates with its -40°C+40°C operating range. Contractors use it in condo corridors, retail fitting rooms, restaurant booths, offices and hotel suites. Accessories such as vapour barrier extenders, a new construction mounting kit, a 2 3/4" round pre-mounting plate for 3" LUNA LED fixtures and smart Wi-Fi dimming controls are available separately. Matching options include RA3S-7G-30K-90BK, RA3S-7G-27K-90WH and the dim-to-warm RA3S-7G-DTW-90WH. The full technical PDF spec sheet is in the Documentation tab for cut sheets, submittals and dimensions.
