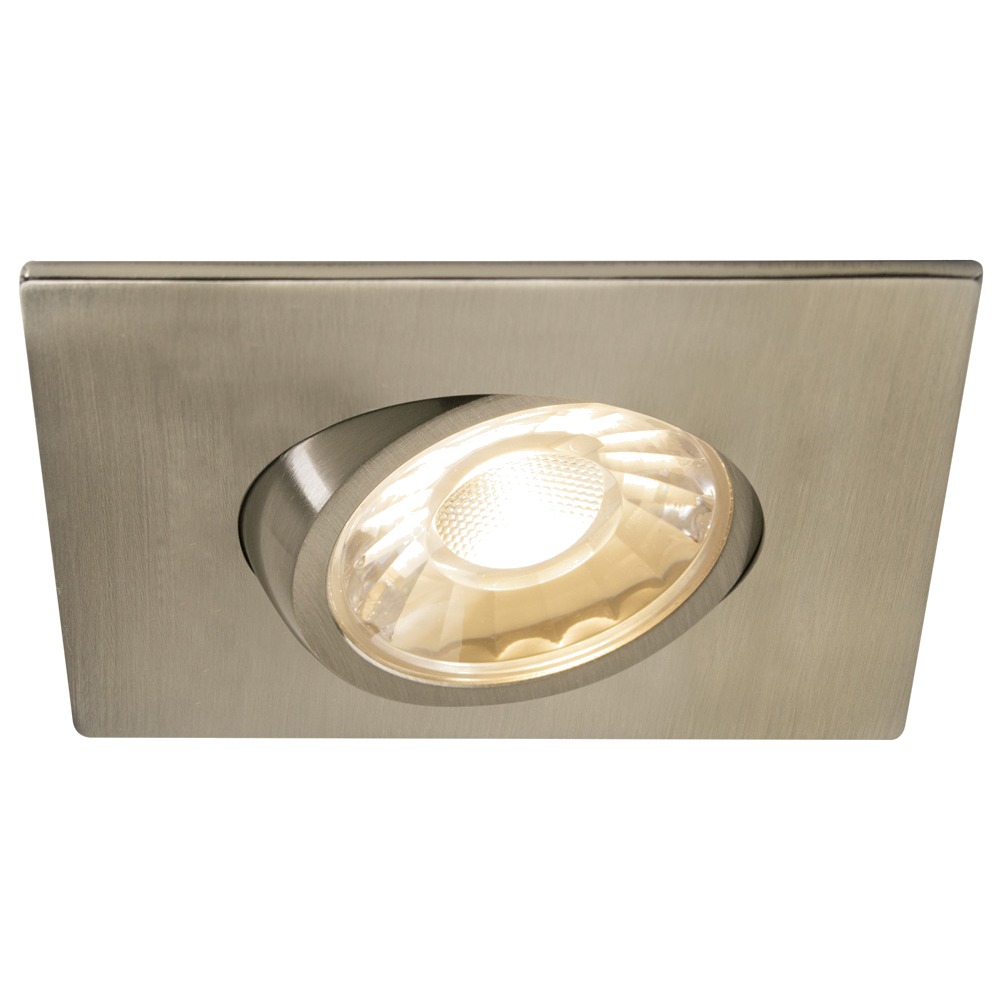

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90BN

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-50K-90BN
Brand: LITELINE
SKU: RA3S-7G-50K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3S-7G-50K-90BN

Brand: LITELINE

Small aperture, big personality: the 3" LUNA LED square gimbal recessed fixture RA3S-7G-50K-90BN gives you a crisp square trim in a warm Brushed Nickel finish, with a tilting head that lets you aim light exactly where you want it. If you have been searching for square downlights, a 3 inch recessed light, an adjustable "pot light", a gimbal downlight or a compact recessed downlight for a retrofit, this is the little workhorse that does it all — general ceiling lighting, wall washing, art and feature walls, kitchen counters, hallways and stairwells.

Inside the durable airtight aluminum body sits a 7 watt LED module producing up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood, paint and fabrics look true. An anodized blue heat sink keeps airflow around the LED source, and the 45° beam spread shapes a clean, controlled pool of light. The class II 170 mA electronic driver runs on 100-135V AC, 50/60 Hz with a 0.95 power factor and is dimmable with standard TRIAC/ELV dimmers. Projected life is 70% at 33,000 hours, it is cETLus certified, LM79 and LM80 tested, rated for wet locations and approved for direct contact with insulation, with an operating range of -40°C to +40°C. Cut-out is Ø 2 3/4" (70 mm), the fixture measures 4 5/8" (117 mm) with a 2 5/16" (59 mm) depth, and it is backed by a lifetime warranty.

It is a natural fit in Canadian homes and businesses: bathrooms and showers (wet location rated), covered porches and soffits, insulated ceilings where IC contact matters, condos, boutiques, cafés, offices and hotel corridors. Two spring-loaded clips let it snap into almost any ceiling material, and three quick-connect push-in terminals plus the 18" FT6 cable with DC 2.1 connector make wiring fast on site. Mixing finishes across a project? Pair it with the 3" LUNA LED square gimbal recessed fixture RA3S-7G-30K-90WH or the 3" LUNA LED square gimbal recessed fixture RA3S-7G-30K-90BK. Add the RA3S-7G-50K-90BN to your next lighting plan and aim light like a pro.

Built to last, built to aim
The LUNA 3" square gimbal is built around a durable airtight aluminum body with an adjustable gimbal, so the light head tilts to direct the beam toward a feature wall, a backsplash, a headboard or artwork instead of straight down. An anodized blue heat sink sits behind the LED source to maximize airflow and keep the module cool over time — the reason this square recessed downlight holds its output where a poorly cooled fixture fades. The trim finish on this SKU is BN (Brushed Nickel), a softer, warmer look than white or black that blends beautifully with stainless appliances and modern hardware.

Light quality you can see
A 7 watt LED module delivers up to 745 lumens with uniform intensity and 96 lumens per watt efficacy, while a typical CRI of 90 renders colour faithfully — important over kitchen counters, in bathrooms, in retail displays and anywhere finishes are being judged. The lens produces a 45° beam spread, wide enough for general ambient coverage yet tight enough to create layered accents when fixtures are spaced along a hallway or a feature wall.

Technical specifications
SKU: RA3S-7G-50K-90BN
Brand: LITELINE
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Driver: 170mA dimmable class II electronic
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Dimensions: 4 5/8" (117mm), 2 5/16" (59mm), 3 11/32" (85mm), 1 1/2" (38mm), 1 13/16" (46mm)
Cable: 18" (457mm) FT6 rated with DC 2.1 connector
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Certification: cETLus, LM79, LM80
Class II: Yes
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime

Wiring and installation
Installation is deliberately simple: two spring-loaded clips hold the fixture in almost any ceiling material, and the extruded aluminum hardwire box uses three quick-connect push-in terminals for fast, tool-light wiring. The 18" (457 mm) FT6 rated cable with DC 2.1 connector between driver and fixture is approved for use in plenums and suspended ceilings. Plan a Ø 2 3/4" (70 mm) hole cut, confirm a 100-135V AC supply, and pair the fixture with a TRIAC or ELV dimmer for smooth control. Because it is approved for direct contact with insulation and rated for wet locations, it can go into insulated attics, bathroom ceilings and covered outdoor soffits without extra enclosures.

Applications, matching fixtures and documentation
Think tight kitchen galleys in a Montréal condo, a basement renovation with low joist depth, a shower ceiling, a café counter, a clinic corridor, or accent rows over a stone fireplace. To keep one look across an entire floor while changing trim colour or colour temperature, the same LUNA 3" square gimbal platform is offered as the 3" LUNA LED square gimbal recessed fixture RA3S-7G-27K-90BN, the 3" LUNA LED square gimbal recessed fixture RA3S-7G-35K-90BN and the dim-to-warm 3" LUNA LED square gimbal recessed fixture RA3S-7G-DTW-90BK. Accessories such as vapour barrier extenders, the new construction mounting kit and the 2 3/4" round pre-mounting plate for 3" LUNA LED fixtures are sold separately. The full technical PDF spec sheet is available in the Documentation tab for dimensions, cut-out and electrical details before you order.
