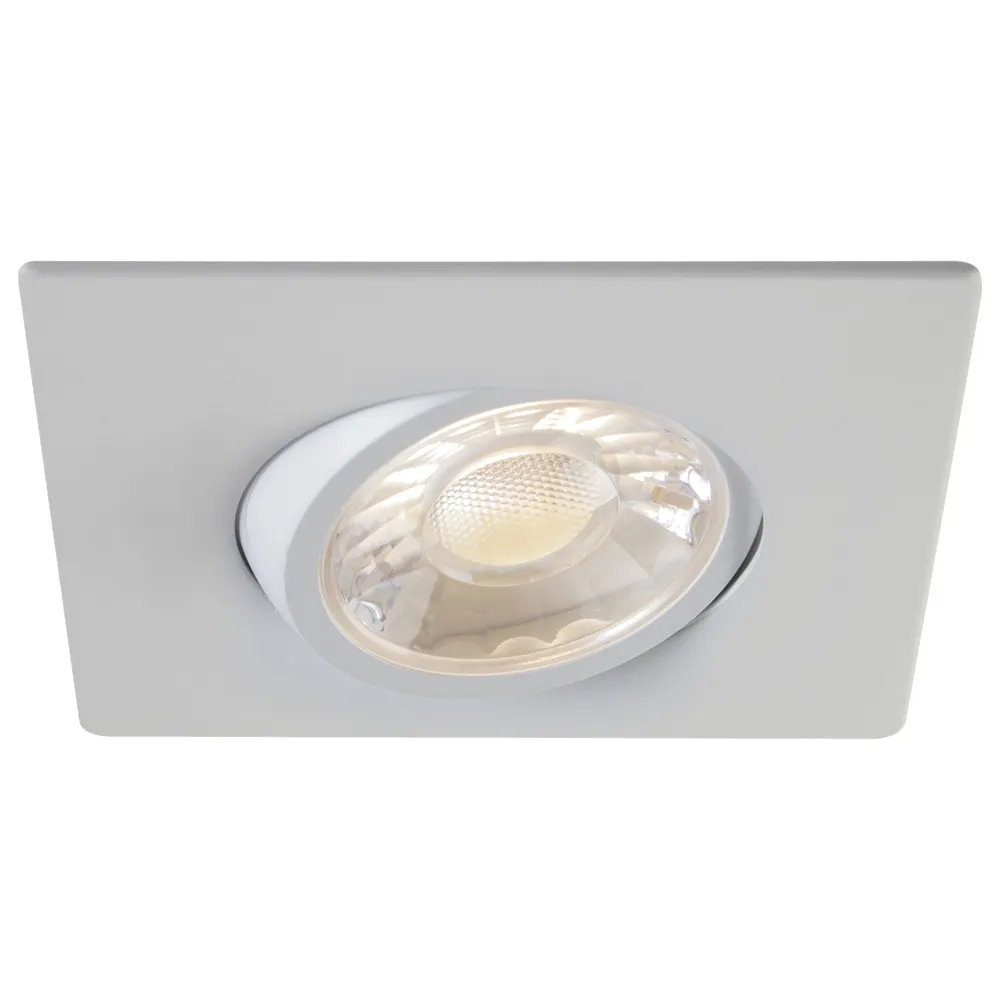

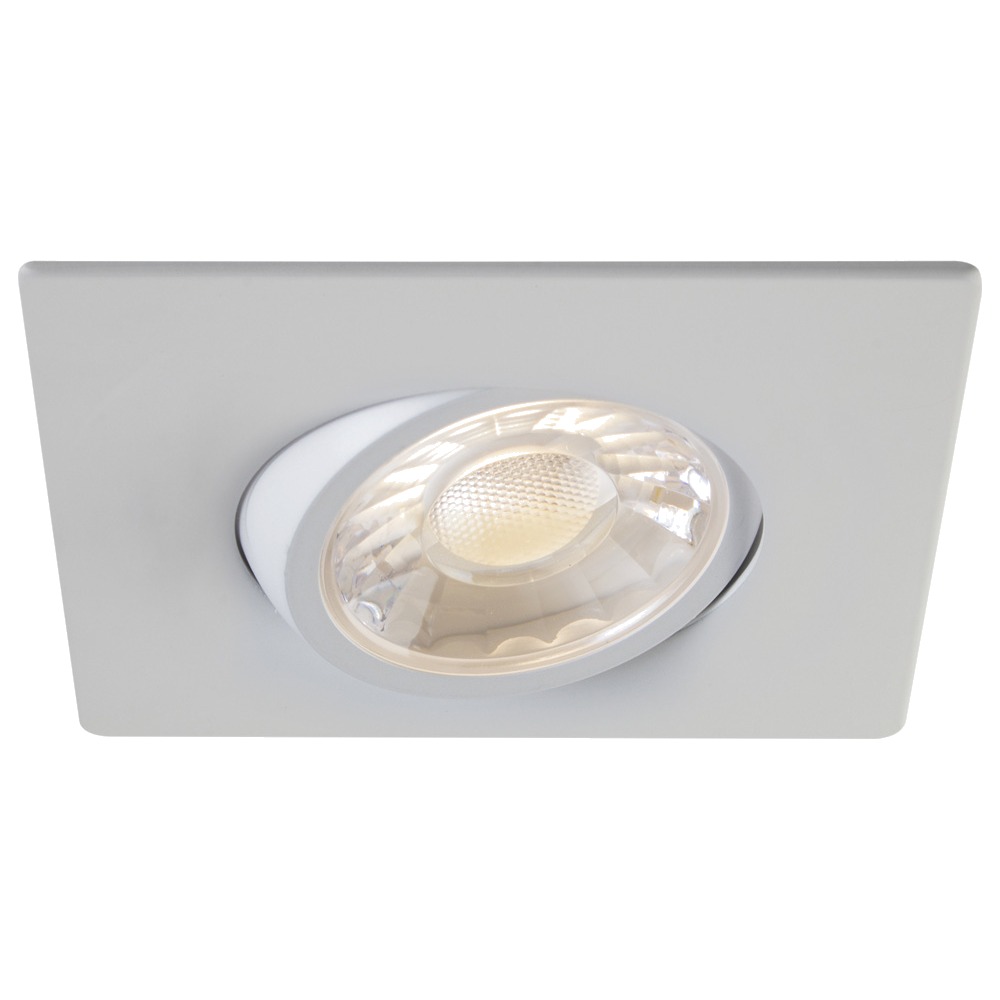

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-27K-90WH

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-27K-90WH
Brand: LITELINE
SKU: RA3S-7G-27K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-27K-90WH

Brand: LITELINE

Bright, tidy and easy to aim: the 3" LUNA LED square gimbal recessed fixture (SKU RA3S-7G-27K-90WH) is the small square downlight that lets you point light exactly where you want it. People call it a 3-inch gimbal pot light, an adjustable recessed downlight, a square LED insert or simply a directional recessed light — whatever the name, it does the same job beautifully. The adjustable gimbal tilts to graze a stone feature wall, wash artwork, light a kitchen island or aim down a stairwell, while the crisp square trim in white keeps ceilings looking architectural instead of busy. It suits new builds and retrofits alike, in homes, condos, boutiques, cafés, clinics and offices, and it drops into a small opening so you can add real light without cutting up the ceiling.

Under that clean trim is a durable airtight aluminum body with an anodized blue heat sink that keeps airflow around the LED module, so light output stays steady. The 7W LED delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 that makes skin tones, wood grain and paint colours look true. Its 45° beam spread gives controlled, glare-managed light, and dimming is smooth on industry standard TRIAC/ELV dimmers. The class II electronic 170mA driver runs on 100-135V AC, 50/60Hz, with a 0.95 power factor and projected life of 70% at 33,000 hrs. It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, LM79 and LM80 tested, and backed by a Lifetime warranty. Operating range: -40°C to +40°C (-40°F to +104°F). Finish: White.

From a Québec bathroom ceiling to a covered porch, a retail display wall or a basement renovation, this LED pot light handles Canadian realities — insulated ceilings, cold entryways, damp rooms. Two spring-loaded clips grip most ceiling materials, and the included 18" FT6 cable with DC 2.1 connector makes the hookup quick. Match it with the same fixture in black, 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BK, or brushed nickel, 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BN, or step up in colour temperature with 3" Luna LED square gimbal recessed fixture RA3S-7G-30K-90WH. Plan your ceiling layout and light it right.

Built to last, built to aim
The LUNA square gimbal is made around a durable airtight aluminum body with an adjustable gimbal, so a single fixture can serve as a general downlight or as a directional accent. An anodized blue heat sink sits behind the LED module to maximize airflow, which protects the diodes and keeps brightness consistent year after year. The gimbal tilts 30° and the square trim gives a clean, architectural line on the ceiling — a favourite for designers who want square downlights instead of round pot lights. Finish on this model is White, and the same fixture is offered in Black and Brushed Nickel.

Light quality you can see
The 7 watt LED module produces up to 745 lumens of uniform intensity at an efficient 96 lumens per watt. A typical CRI of 90 renders colours honestly, which matters over a kitchen counter, a vanity, a merchandising display or a dental chair. The lens creates a 45° beam spread for controlled, comfortable light, and dimming is supported with industry standard TRIAC/ELV dimmers so you can take the room from task-bright to evening-soft.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
Certification: cETLus
Class II: Yes
Colour: White
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2 3/4" (70mm)
Input: 100-135V AC, 50/60Hz
LM79: Yes
LM80: Yes
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W
Operating Temperature: -40°C+40°C (-40°F+104°F)

Wiring and installation
Electrical work is straightforward: an extruded aluminum hardwire box holds the 170mA dimmable class II electronic driver with 100-135V AC input, and three quick connect push-in terminals make wiring fast. An 18" FT6 rated cable with DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Two spring-loaded clips let the fixture attach to most ceiling materials, and it is approved for direct contact with insulation as well as for wet locations, so covered porches, soffits and bathrooms are all fair game. Accessories are sold separately, including a pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, a new construction mounting kit with hanger bars, brackets and screws, vapour barrier extenders for new construction and remodel work, and a 60" flexible connector — the answer to the common "recessed lighting vapor barrier" question on Canadian job sites.

Where it works and what pairs with it
Use it over kitchen islands and hallways, in bathrooms and laundry rooms, along a corridor of a condo, in boutique display ceilings, restaurant booths, reception areas and small offices. Mix finishes room by room with 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BK or 3" Luna LED square gimbal recessed fixture RA3S-7G-27K-90BN, choose a cooler tone with 3" Luna LED square gimbal recessed fixture RA3S-7G-35K-90WH, or go dim-to-warm in the same size with 3" Luna LED square gimbal recessed fixture RA3S-7G-DTW-90WH. The complete technical PDF spec sheet for RA3S-7G-27K-90WH is available in the Documentation tab for cut-out dimensions, driver details and approvals.
