3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90WH
Brand: LITELINE
SKU: RA3-7G-30K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-30K-90WH

Brand: LITELINE

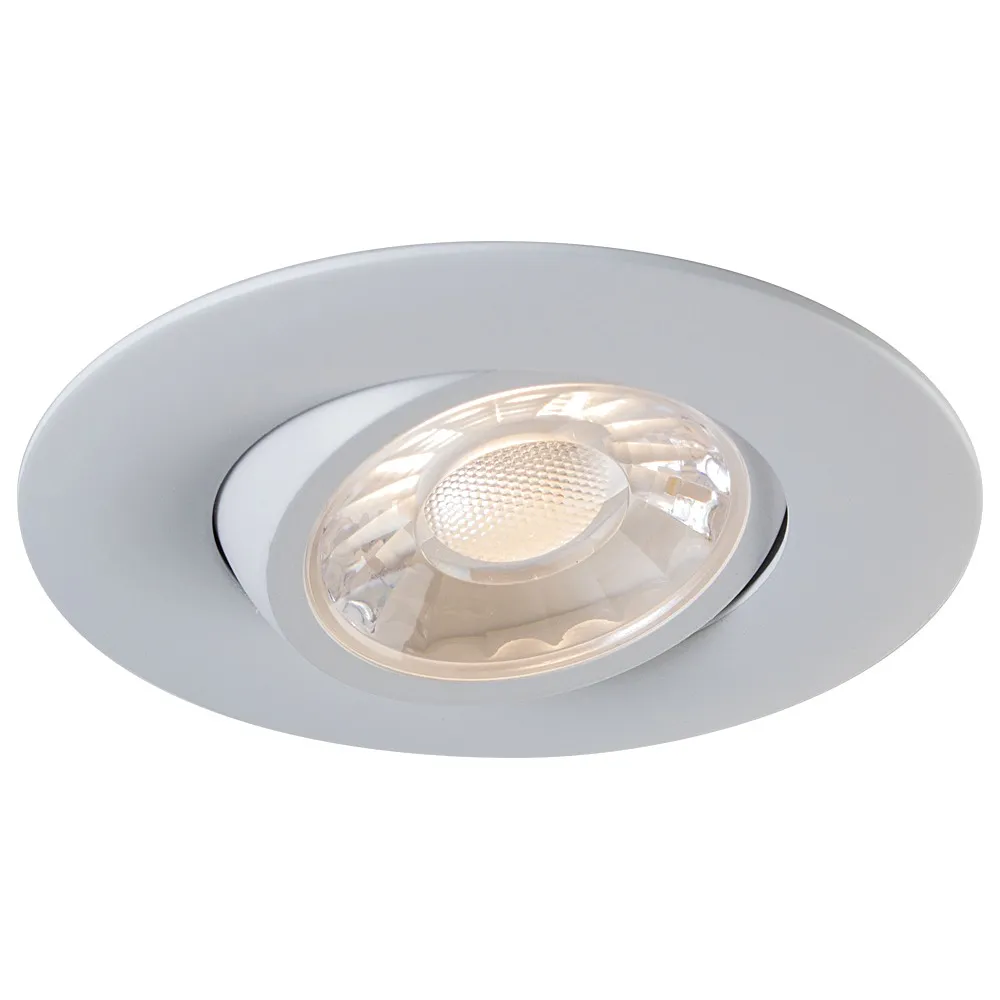

Small aperture, big personality: the LITELINE 3" LUNA gimbal recessed fixture (SKU RA3-7G-30K-90WH) is the little pot light that finally lets you aim your light exactly where you want it. People look for it as a 3-inch recessed downlight, an adjustable gimbal LED, a directional slim downlight or simply a swivel pot light — it's all the same idea: a compact, low-profile downlight with a tilting gimbal head that turns a flat ceiling into a layer of light you actually control. Use it to wash an accent wall, graze stone or brick, highlight artwork and open shelving, light a kitchen island, or lay down a clean, even run of general lighting through a hallway, condo living room or retail floor.

Behind the white trim is a serious little engine. The 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood tones, paint colours, food and fabrics read true. Colour temperature is warm and flattering, and this fixture also features colour temperature dimming from 3000 K to 1800 K — dim it down and the light gets cozier, just like a halogen used to. It runs on 100-135V AC, 50/60Hz through a dimmable class II electronic driver (170mA) and is compatible with TRIAC/ELV dimmers. The airtight aluminum body with anodized blue heat sink keeps the LED cool, the lens gives a tidy 45° beam spread, and the head tilts 30°. Cut hole is Ø 2¾" (70mm). It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for -40°C to +40°C, with a projected life of 70% at 33,000 hrs and a lifetime warranty.

That combination makes it a favourite for Canadian renovations: kitchens and hallways, basements with tight joist spaces, covered porches and soffits, bathrooms and showers, closets, retail displays, boutiques, cafés and offices. Because it's insulation-contact and wet-location approved, it goes straight into insulated ceilings without a box around it. Want the same fixture in another finish or another colour temperature? See the 3" Luna gimbal recessed fixture RA3-7G-30K-90BK, the brushed nickel RA3-7G-30K-90BN, the warmer RA3-7G-27K-90WH or the neutral RA3-7G-35K-90WH. Plan your layout, order your count, and give every room the light it deserves.

Built to last, built to aim
The LUNA 3" gimbal starts with a durable airtight aluminum body paired with an adjustable gimbal head that tilts 30°, so you can point the beam at a feature wall, a painting or a counter instead of settling for straight down. An anodized blue heat sink sits behind the LED to maximize airflow and keep the light source cool, which is exactly what protects colour consistency and lumen output over the years. Two spring-loaded clips let the fixture attach to any ceiling material, and the compact 3⅛"/85mm body with a 1½" (38mm) profile slips into shallow cavities where a traditional housing simply won't go. The trim finish on this model is white, the most forgiving choice on painted drywall ceilings.

Light quality and dim-to-warm
This is a general application LED downlight with a 7 watt module that maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90 — high enough that skin tones, timber, tile and merchandise all look natural. The lens shapes a 45° beam spread, wide enough for general ambient coverage yet tight enough to accent. Its signature feature is colour temperature dimming from 3000 K to 1800 K: as you lower the level, the light shifts from a clean warm white toward a candle-like glow, the effect people love in dining rooms, bedrooms, restaurants and hotel lobbies. LM79 and LM80 testing are both listed on the spec sheet.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable class II electronic driver with 100-135V AC, 50/60Hz input and a power factor of 0.95. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast — a real time saver when you're installing a dozen units in a day. Cut a Ø 2¾" (70mm) hole, connect, tuck the driver into the cavity, squeeze the clips and you're done. The fixture is compatible with industry standard TRIAC/ELV dimmers; for the list of compatible dimmers, consult liteline.com/lunadimmers.

Technical specifications
SKU: RA3-7G-30K-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power factor: 0.95
Hole cut: Ø 2¾" (70mm)
Operating temperature: -40°C+40°C (-40°F+104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Warranty: Lifetime

Where it works, accessories and documentation
Because it is suitable for wet locations and approved for direct contact with insulation, this recessed gimbal light handles bathrooms and showers, covered entries and soffits, kitchens, hallways, stairwells, basements, walk-in closets, boutiques, cafés, dental and medical offices and retail display walls. Accessories are sold separately: the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, the P-2810 2¾" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders — a must in many Canadian insulated ceilings. For mixed-finish projects, pair it with the RA3-7G-DTW-90BK, the RA3-7G-DTW-90BN or the RA3-7G-DTW-90WH. The full technical PDF (RA3-7G-30K-90WH Spec Sheet), with dimensions and the ordering guide, is in the Documentation tab.

Technical Files
