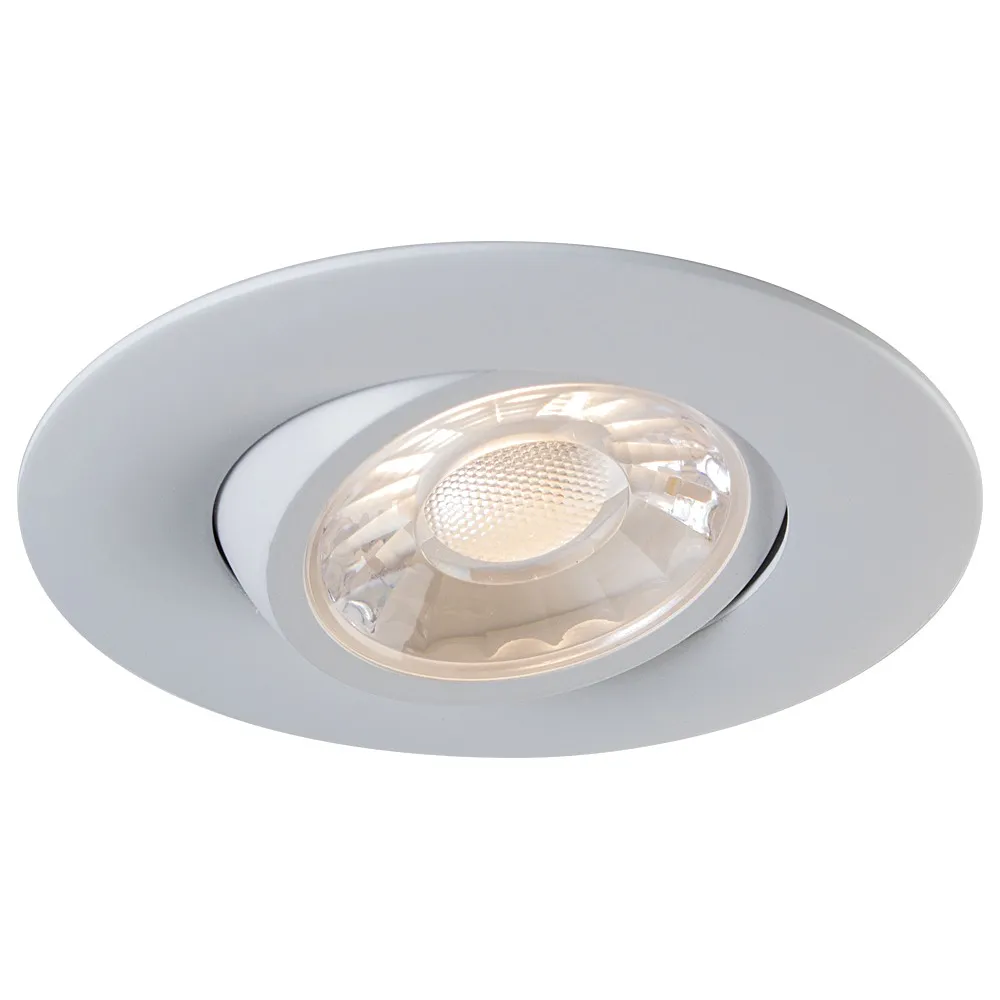

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90WH
Brand: LITELINE
SKU: RA3-7G-35K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-35K-90WH

Brand: LITELINE

Small aperture, big impact: the 3" LUNA gimbal recessed fixture RA3-7G-35K-90WH gives you a tight, adjustable beam of high-quality light from a housing that disappears into the ceiling. Call it a recessed downlight, a pot light, a gimbal spot or an adjustable LED downlight — it's the same idea: a compact, tilting fixture you aim exactly where the light needs to land. Because the gimbal pivots, you can wash a stone fireplace, graze a feature wall, highlight artwork or simply push light onto a kitchen island instead of the floor. It suits retrofit work as much as new construction, and it's just as at home in a condo hallway as in a boutique, a dental clinic or a restaurant. This is the white trim version, a finish that blends into almost any ceiling.

Under the hood, a 7 W LED module delivers up to 745 lumens at 96 lumens per watt, so you get real punch from a fixture that sips power. A typical CRI of 90 keeps skin tones, wood grain and paint colours looking honest, and the lens produces a controlled 45° beam spread for clean, directional pools of light. The body is durable airtight aluminum with an anodized blue heat sink for maximum airflow around the LED, and the trim finish here is white (WH). It runs on a 170 mA dimmable Class II electronic driver, 100-135V AC, 50/60 Hz, with a power factor of 0.95, and it dims smoothly on industry-standard TRIAC/ELV dimmers. Certified cETLus, suitable for wet locations and approved for direct contact with insulation, it operates from -40°C to +40°C (-40°F to +104°F), carries a projected life of 70% at 33,000 hours, and is backed by a lifetime warranty.

Where does it shine? Kitchens, hallways, bathrooms and covered porches at home; showrooms, offices, salons and hospitality spaces on the commercial side. The Ø 2 3/4" (70 mm) hole cut and two spring-loaded clips mean it drops into almost any ceiling material, and the wet-location rating plus the -40°C cold-weather range make it a sensible choice for Canadian soffits, entryways and unheated spaces. Need a different look or a different white? The same fixture is offered in 3" LUNA gimbal recessed fixture RA3-7G-35K-90BK and 3" LUNA gimbal recessed fixture RA3-7G-35K-90BN, and in warmer tones such as RA3-7G-27K-90WH. Add this LITELINE gimbal to your project and aim your light exactly where you want it.

Built to last, built to fit
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal that lets you tilt the light source after installation — no guessing at layout time. An anodized blue heat sink sits behind the LED to keep airflow moving and heat away from the diode, which is exactly what protects light output over the long haul. Two spring-loaded clips hold the fixture in place and let it attach to virtually any ceiling material, from drywall to plaster to wood. With a Ø 2 3/4" (70 mm) hole cut, it slips into tight ceiling cavities where a larger recessed pot light simply won't go, and the gimbal tilts up to 30° for accent and wall-wash work.

Light quality you can see
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, with a typical CRI of 90. Ninety CRI is the threshold where merchandise, food, artwork and skin tones stop looking flat — a real advantage in retail, dining rooms, bathrooms and vanity areas. The lens shapes a 45° beam spread, tight enough to create defined pools of light on a counter or a feature wall, wide enough to space fixtures comfortably in a hallway or open-plan room. At 96 lumens per watt, a run of these LED downlights keeps connected load low without sacrificing brightness.

Electrical and installation details
The extruded aluminum hardwire box houses a 170 mA dimmable Class II electronic LED driver with 100-135V AC input and a power factor of 0.95. Three "Quick connect" push-in terminals make wiring fast, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture — approved for use in plenums and suspended ceilings. Dimming runs on industry-standard TRIAC/ELV dimmers; for a list of compatible dimmers, visit liteline.com/lunadimmers. The fixture is approved for wet locations and for direct contact with insulation, is cETLus certified, and is rated for operating temperatures from -40°C to +40°C (-40°F to +104°F).

Technical specifications
SKU: RA3-7G-35K-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Hole cut: Ø 2 3/4" (70 mm)
Input: 100-135V AC, 50/60 Hz
Dimming tech: TRIAC/ELV
Class II: Yes
Power factor: 0.95
Certification: cETLus
LM79 / LM80: Yes
Projected life: 70% @ 33,000 hrs
Operating temperature: -40°C to +40°C (-40°F to +104°F)
Warranty: Lifetime
Trim finish: White

Applications, accessories and documentation
Think kitchen perimeters and islands, corridors, walk-in closets, bathrooms and covered entries at home; changing rooms, product displays, reception desks and treatment rooms in commercial settings. Accessories are sold separately: the SLM-60-FC 60" flexible connector is made for LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip is designed for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit includes hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders cover new construction and remodel applications — a common request on Québec and Prairie projects. Smart control is available through the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer, 120V, and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-Way Switch, both compatible with the WiZ App. Mixing finishes across one job is easy with RA3-7G-35K-90BK or RA3-7G-35K-90BN, while the dim-to-warm LUNA gimbal RA3-7G-DTW-90WH offers a colour-shifting alternative in the same platform. The full technical PDF spec sheet is available in the Documentation tab for dimensions, photometrics and ordering details.
