3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90WH
Brand: LITELINE
SKU: RA3-7G-27K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-27K-90WH

Brand: LITELINE

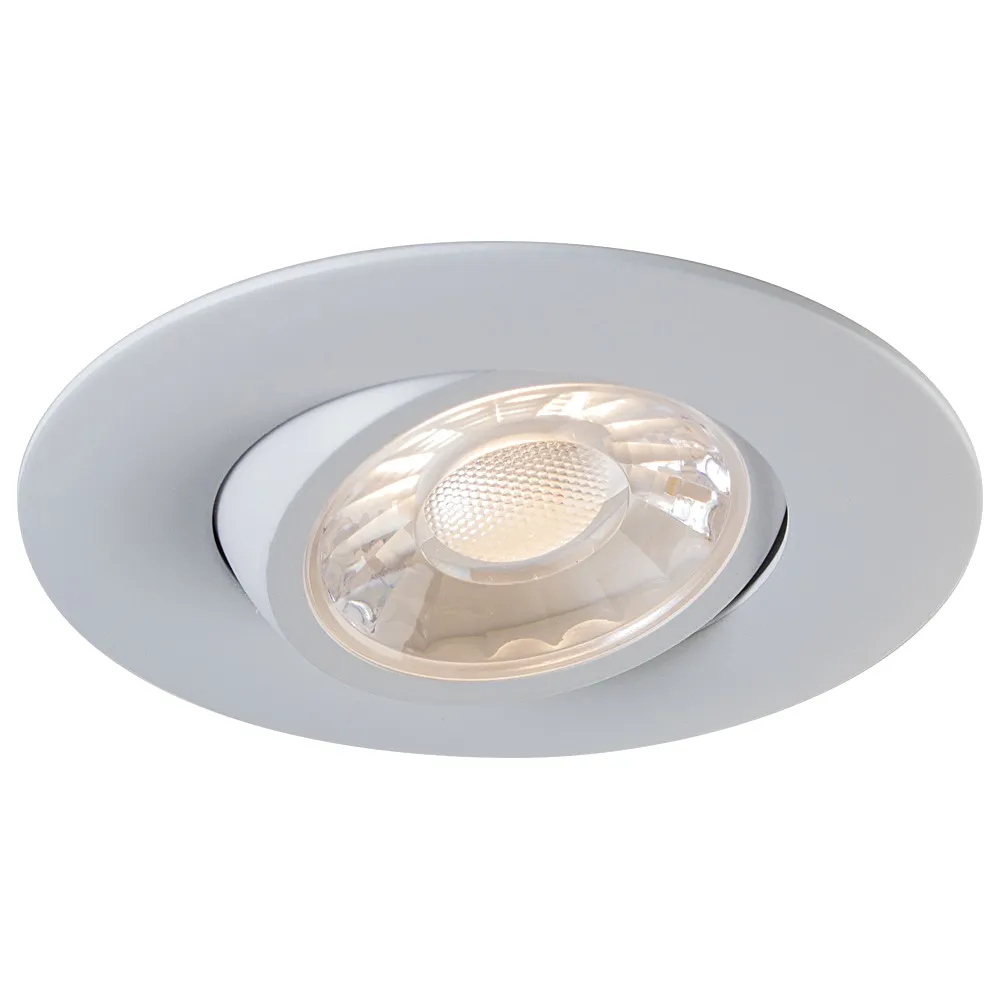

Small aperture, big personality: the LITELINE 3" LUNA gimbal recessed fixture (SKU RA3-7G-27K-90WH) is the little aimable recessed downlight that lets you point light exactly where it belongs. Whether you call it a pot light, a gimbal downlight, an adjustable recessed light or simply a 3-inch LED downlight, this white-trim model is built for retrofit work: no housing to frame in, just a round hole in the ceiling, two spring clips and you're lit. It's a favourite for hallways, sloped ceilings, feature walls, kitchen counters and anywhere a fixed downlight would send light to the wrong place.

Inside the durable airtight aluminum body sits a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and merchandise all read true. The dim-to-warm engine shifts from 3000 K to 1800 K as you dim, giving you crisp working light at full output and a candle-like glow in the evening, using TRIAC/ELV dimming on industry-standard dimmers. An anodized blue heat sink keeps the LED cool, the gimbal tilts up to 30°, and the lens gives a tidy 45° beam spread. Input is 100-135V AC, 50/60Hz, power factor 0.95, projected life 70% @ 33,000 hrs, cETLus certified, Class II, suitable for wet locations and approved for direct contact with insulation. Hole cut is Ø 2 3/4" (70 mm) and the fixture measures 4 5/8" (117 mm). Lifetime warranty.

From a Montréal condo reno to a west-coast covered porch, this fixture handles Canadian realities: insulated ceilings, cold entryways (operating range -40°C to +40°C) and bathrooms or showers where a wet-location rating matters. Contractors love it for kitchens, closets, stairwells, offices, boutiques and restaurant seating; homeowners love the warm dimming at night. Mixing finishes in one project? Pair it with the 3" Luna gimbal recessed fixture in black or the brushed nickel version. Grab your layout, count your holes and order today.

Built to last, built to aim
The LUNA 3" gimbal starts with a durable airtight aluminum body and an adjustable gimbal that tilts up to 30°, so you can wash a stone fireplace, graze a brick wall or drop light on a countertop without buying a separate accent fixture. An anodized blue heat sink sits behind the LED to maximize airflow and protect the light source, which is how this 3 inch recessed downlight holds its projected life of 70% @ 33,000 hrs. Two spring-loaded clips let the fixture attach to virtually any ceiling material, making it a clean retrofit downlight for drywall, plaster or panelled ceilings.

Light quality and dim-to-warm
The 7 watt LED module produces up to 745 lumens of uniform intensity with a typical CRI of 90 — high enough that finishes, fabrics and food look the way the designer intended. The lens shapes a 45° beam spread, wide enough for general recessed lighting layouts yet controlled enough for accenting. What sets this SKU apart is colour temperature dimming: as you lower the dimmer, the light travels from 3000 K down to 1800 K, mimicking the cozy shift of an incandescent lamp. It works with industry standard TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Model: RA3-7G-27K-90WH
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Power factor: 0.95
Dimming: Yes, TRIAC/ELV
Hole cut: Ø 2 3/4" (70 mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Operating temperature: -40°C+40°C (-40°F+104°F)
Certification: cETLus
Class II: Yes
LM79 / LM80: Yes
Projected life: 70% @ 33,000 hrs
Trim finish: WH (White)
Warranty: Lifetime

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input. Three "Quick connect" push-in terminals make wiring fast, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. Cut a Ø 2 3/4" (70 mm) hole, make your connections, tuck the box above the ceiling, squeeze the clips and set the gimbal. Because the fixture is IC rated for direct contact with insulation and suitable for wet locations, it suits insulated attics, soffits, covered porches and shower ceilings alike. Accessories are sold separately: a 60" flexible connector (SLM-60-FC) for LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and vapour barrier extenders VBE-1, VBE-2 and VBE-5 — a real answer to the recessed lighting vapour barrier question in Canadian builds.

Applications, matching fixtures and documentation
Think kitchen perimeters and islands, hallway runs, walk-in closets, stair soffits, bathroom and shower ceilings, home theatres, hotel corridors, boutiques, cafés and clinic waiting rooms — anywhere a small, aimable, dimmable downlight beats a big fixed one. To keep one look across a job, match this white trim with the black Luna gimbal or the brushed nickel Luna gimbal, and see the white dim-to-warm Luna gimbal in the same family. Full photometrics, dimensions and the ordering guide are in the technical spec sheet available in the Documentation tab of this page.

Technical Files
