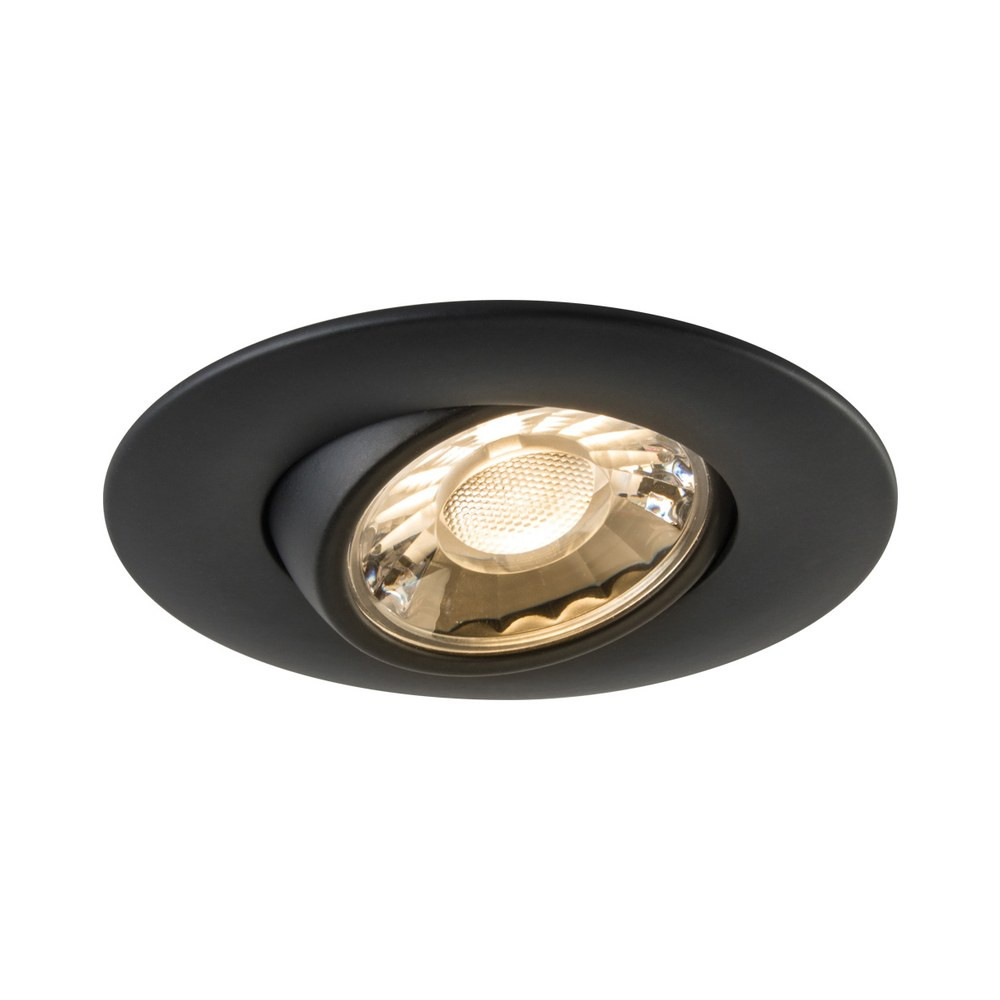

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90BK
Brand: LITELINE
SKU: RA3-7G-35K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-35K-90BK

Brand: LITELINE

Aim your light exactly where you want it. The 3" LUNA GIMBAL RECESSED FIXTURE (SKU RA3-7G-35K-90BK) is a compact recessed downlight — what most people call a pot light or 3 inch LED gimbal — with a fully adjustable gimbal that tilts so you can wash a wall, highlight a fireplace, graze a stone feature or simply drop clean, even light onto a countertop. In a black trim finish, it disappears into dark ceilings and reads as a crisp shadow line instead of a shiny ring, which is exactly the look designers ask for in modern condos, kitchens and retail interiors. It is built for retrofit work as much as for new construction, so it slips into renovation ceilings without a fight.

Behind that small aperture is a serious little engine: a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise look true. The lens produces a 45° beam spread, tight enough to feel intentional, wide enough to cover. It runs on a 170 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input, and it dims smoothly on industry standard TRIAC/ELV dimmers. The airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, and the fixture is cETLus certified, suitable for wet locations, approved for insulated ceilings and rated for direct contact with insulation. Operating temperature range is -40°C to +40°C (-40°F to +104°F), projected life is 70% at 33,000 hours, power factor 0.95, and it is backed by a lifetime warranty.

Put it over a kitchen island, in a hallway, in a bathroom or shower ceiling, on a covered porch or in a boutique, clinic or café — anywhere a Canadian project needs small, controlled, high-quality light. The Ø 2 3/4" (70 mm) hole cut and two spring loaded clips let it mount into virtually any ceiling material, and three quick connect push-in terminals make wiring fast. Accessories are sold separately, including the P-2810 pre-mounting plate, the P-NCMK-1 new construction mounting kit, VBE vapour barrier extenders and the SLM-60-FC flexible connector. Prefer a warmer glow or a different trim? Compare the 3" LUNA gimbal recessed fixture RA3-7G-27K-90BK, the RA3-7G-30K-90BK or the dim-to-warm RA3-7G-DTW-90BK. Order yours today.

Built to last, built to aim
The LUNA 3" gimbal starts with a durable airtight aluminum body and an adjustable gimbal that lets you point the light where the room actually needs it. An anodized blue heat sink sits behind the LED to keep airflow moving and thermals under control, which is what protects light output and colour over the long haul. The black trim finish keeps the aperture visually quiet, a favourite for dark ceilings, accent walls and commercial interiors where you want the light and not the pot light itself to be noticed. Two spring loaded clips let the fixture attach to virtually any ceiling material, so drywall, plaster and finished basement ceilings are all fair game for this 3 inch recessed downlight.

Light quality you can trust
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, a healthy 96 lumens per watt. The typical CRI of 90 means colours stay honest — ideal over kitchen counters, in retail displays, in bathrooms and anywhere people judge finishes and fabrics. The lens delivers a 45° beam spread, a versatile angle for general downlighting and for accenting art, shelving or feature walls. LM79 and LM80 testing are both listed for this platform, so the photometric and lumen maintenance claims are backed by standardized measurement.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 45°
Certification: cETLus
Class II: Yes
CRI: 90
Dimming: Yes
Dimming tech: TRIAC/ELV
Hole cut: Ø 2 3/4" (70 mm)
Input: 100-135V AC, 50/60 Hz
Lumens: 745
Lumens per watt: 96
Power factor: 0.95
Projected life: 70% @ 33,000 hrs
Operating temperature: -40°C+40°C (-40°F+104°F)
Wattage: 7W
Warranty: Lifetime
SKU: RA3-7G-35K-90BK

Electrical, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 170 mA dimmable Class II electronic driver with 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings — a real advantage in commercial renovations. Three "Quick connect" push-in terminals speed up wiring on site, and the fixture is compatible with industry standard TRIAC/ELV dimmers. Because it is rated for wet locations and approved for direct contact with insulation, it can go into a shower ceiling, a covered entry or an insulated attic ceiling cavity without extra enclosures. Accessories are sold separately: the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the SLM-60-FC 60" flexible connector, the VBE-1, VBE-2 and VBE-5 vapour barrier extenders, plus the LC-CRTL-DIM-1 Wi-Fi dimmer and LC-CRTL-3WAY-1 Wi-Fi 3-way switch.

Applications, matching fixtures and documentation
Use it in rows down a hallway, on a 4-foot grid in an open-plan living space, angled toward a kitchen backsplash, over a bathroom vanity, in a basement renovation, or throughout a boutique, clinic, office or restaurant. Mixing finishes across a project is easy: the same fixture is offered as RA3-7G-35K-90BN in brushed nickel and RA3-7G-35K-90WH in white, while the dim-to-warm RA3-7G-DTW-90BK shifts from 3000 K to 1800 K as you dim, for living rooms and hospitality spaces that want a candlelit feel at night. The full technical spec sheet for RA3-7G-35K-90BK is available in the Documentation tab, with dimensions, mounting details and the complete ordering guide for your submittals.
