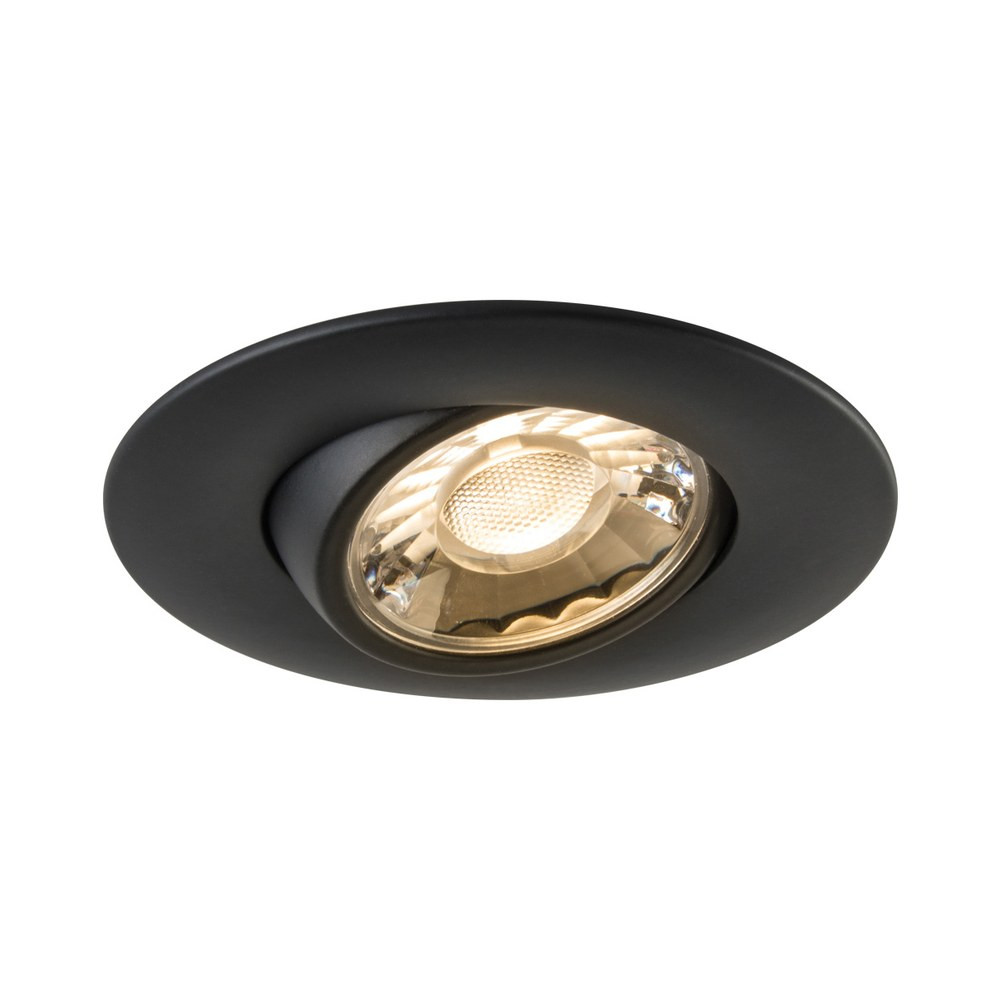

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90BK
Brand: LITELINE
SKU: RA3-7G-30K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-30K-90BK

Brand: LITELINE

Small aperture, big impact: the LITELINE LUNA 3" gimbal recessed fixture is the little pot light that lets you aim light exactly where you want it. Known by installers as a 3 inch gimbal downlight, an adjustable recessed light, an eyeball trim or simply a surface and gimbal LED downlight, this all-in-one unit replaces the old can-plus-trim routine with a single slim housing that drops straight into the ceiling. Homeowners use it to wash an accent wall, light a kitchen island or add discreet recessed lighting to a hallway, a sloped ceiling or a covered porch, while contractors and small businesses reach for it in retail displays, reception areas and boutique ceilings where a tidy, low-profile look matters. SKU RA3-7G-30K-90BK comes in a black trim finish that quietly disappears into darker ceilings and keeps the focus on what the light is showing off.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, so you get real downlight punch from a fixture that sips power. The typical CRI of 90 renders skin tones, wood grain, paint colours and merchandise the way they actually look, and the 45° beam spread keeps the light controlled rather than scattered. Colour temperature runs 3000 K~1800 K: the fixture dims from a clean warm white down to a candle-like glow, and it works with industry standard TRIAC/ELV dimmers. The airtight aluminum body carries an anodized blue heat sink for airflow, a Class II 170mA dimmable electronic driver with 100-135V AC 50/60Hz input, a power factor of 0.95 and an 18" FT6 rated cable with DC 2.1 connector. It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for -40°C+40°C (-40°F+104°F), projected at 70% @ 33,000 hrs and backed by a lifetime warranty.

This is the fixture for kitchens, bathrooms, basements, stairwells, soffits, condos and cottages, plus cafés, salons, galleries and offices across Canada where insulated ceilings and cold temperatures are part of the job. It needs a Ø 2¾" (70 mm) hole cut and installs with two spring loaded clips and three quick connect push-in terminals, so retrofits go fast. Matching finishes are available: see the 3" Luna gimbal recessed fixture RA3-7G-30K-90BN in brushed nickel and the 3" Luna gimbal recessed fixture RA3-7G-30K-90WH in white. Order your Luna gimbals today and aim your light where it counts.

Built to last, built to install fast
The LUNA RA3-7G-30K-90BK is built around a durable airtight aluminum body with an adjustable gimbal, so the light head tilts to aim at artwork, a fireplace, a backsplash or a product shelf. An anodized blue heat sink is included to maximize airflow around the LED light source, which is what keeps output and colour stable over the long haul. Two spring loaded clips let the fixture attach to virtually any ceiling material, and the black trim finish gives a clean, low-glare look in dark or painted ceilings. Because it is a 3 inch recessed downlight built as one piece, there is no separate can and trim to order or align.

Light quality and dim-to-warm behaviour
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, with a typical CRI of 90 for faithful colour rendering. The lens creates a 45° beam spread, tight enough to shape a space without hot spots at the edges. Colour temperature dimming runs from 3000 K to 1800 K, meaning the warm white light gets progressively warmer and cozier as you dim, the way an incandescent used to behave. The fixture is compatible with industry standard TRIAC/ELV dimmers; verify your dimmer model before ordering a full project quantity.

Electrical, driver and installation
Power comes from an extruded aluminum hardwire box holding a 170mA dimmable Class II electronic LED driver with 100-135V AC, 50/60Hz input and a power factor of 0.95. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast on site. Plan a Ø 2¾" (70 mm) hole cut, and remember the fixture is approved for direct contact with insulation and suitable for wet locations, so covered porches, soffits and shower ceilings are all fair game. Operating temperature range is -40°C+40°C (-40°F+104°F), which suits unheated Canadian garages and exterior soffits.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
CRI: 90
Dimming: Yes, TRIAC/ELV
Hole Cut: Ø 2¾" (70mm)
Input: 100-135V AC, 50/60Hz
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W
LM79 / LM80: Yes

Applications, options and documentation
Think condo hallways, basement renovations, kitchen perimeters, bedroom reading zones, staircases, restaurant booths, boutique shelving and office corridors, anywhere a small aperture gimbal downlight can highlight a surface without dominating the ceiling. For new construction and remodel work, vapour barrier extenders, a new construction mounting kit with hanger bars, a round pre-mounting plate with driver attachment clip and a flexible connector are listed as accessories for LUNA fixtures and are sold separately. Prefer the same fixture in another finish or another colour temperature? Compare the 3" Luna gimbal recessed fixture RA3-7G-27K-90BK, the 3" Luna gimbal recessed fixture RA3-7G-35K-90BK or the 3" Luna gimbal recessed fixture RA3-7G-DTW-90BK. The full technical spec sheet is available in the Documentation tab for dimensions, accessory codes and installation details.

Technical Files
