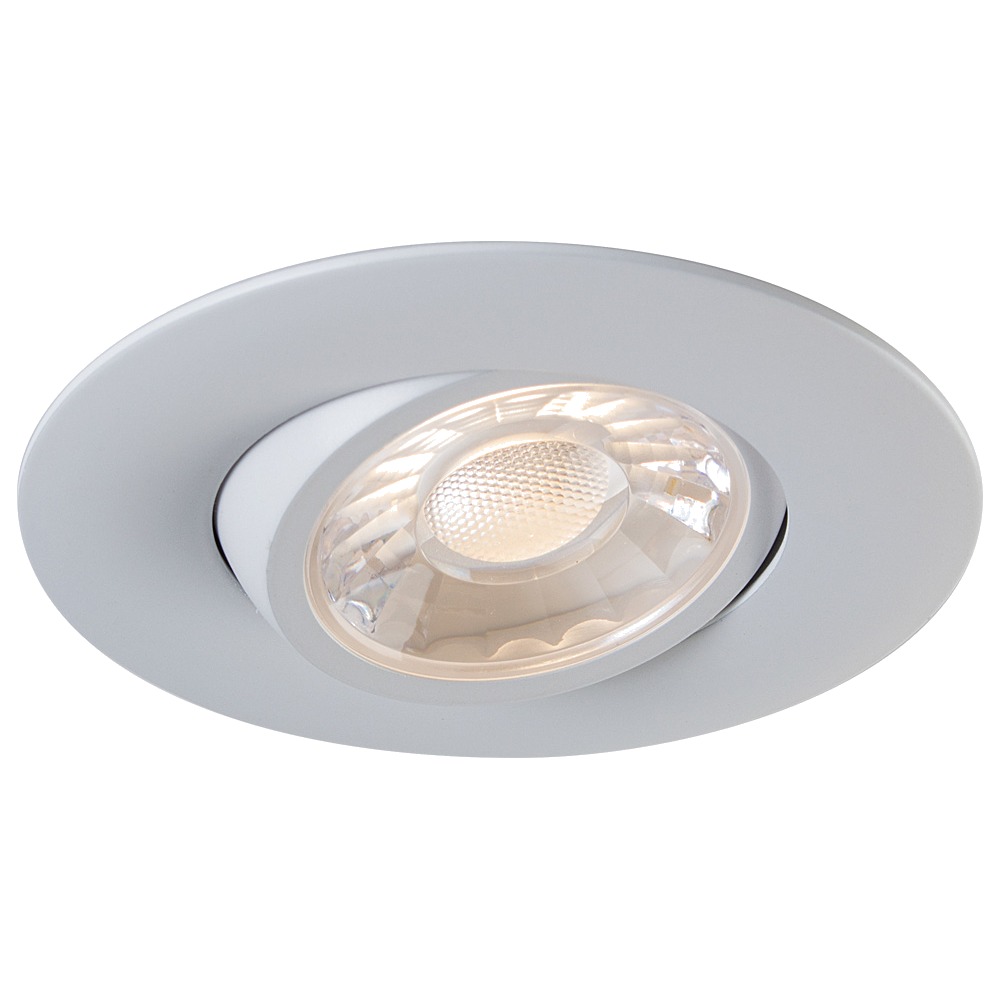

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90WH
Brand: LITELINE
SKU: RA3-7G-DTW-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA3-7G-DTW-90WH

Brand: LITELINE

Warm, cozy light that dims down like a candle — that's the promise of the 3" LUNA gimbal recessed fixture RA3-7G-DTW-90WH from LITELINE. Call it a recessed downlight, a pot light, an adjustable gimbal light or simply a 3-inch LED downlight: it's the small-aperture fixture homeowners and contractors reach for when they want clean ceilings, aimable beams and light that actually flatters a room. The tilting gimbal lets you point the beam exactly where it belongs — a stone fireplace, a gallery wall, a kitchen island, a stair run — instead of washing the floor with light nobody needs. Because it's a retrofit-friendly design, it drops into a small hole and finishes flush, which makes it just as popular for renovations as for new construction.

This is a 7 watt dim-to-warm LED downlight that delivers up to 745 lumens, a generous 96 lumens per watt and a typical CRI of 90 so wood, paint, skin tones and fabrics look true. The colour temperature dims from 3000 K down to 1800 K, so a bright, clean white at full output becomes a soft candlelight glow as you lower the dimmer — it works with industry standard TRIAC/ELV dimmers. The airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, the 45° beam spread keeps the light controlled, and the white trim finish blends into most ceilings. Power factor is 0.95, input is 100-135V AC, 50/60Hz, it's Class II, cETLus certified, LM79 and LM80 tested, rated for wet locations and for direct contact with insulation, with a projected life of 70% at 33,000 hrs and a lifetime warranty.

Use it in kitchens, hallways, bedrooms, living rooms, finished basements, showers and covered porches, and in boutiques, cafés, clinics and offices where a warm, low-glare ceiling matters. With an operating range of -40°C to +40°C (-40°F to +104°F), it handles Canadian entryways, three-season rooms and unheated spaces without complaint. The hole cut is Ø 2¾" (70mm), mounting uses two spring loaded clips on any ceiling material, and the 18" FT6 rated cable with DC 2.1 connector links the fixture to the extruded aluminum hardwire box with its three quick connect push-in terminals. Prefer the same fixture in a darker trim? See the 3" Luna gimbal recessed fixture in black or brushed nickel. Order the RA3-7G-DTW-90WH and light your ceilings the warm way.

Built to last, built to breathe
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal that tilts to aim light where you want it. Inside, an anodized blue heat sink maximizes airflow around the LED light source, which is exactly what keeps a compact 3" LED downlight stable over the long run. The trim is finished in white (the 90WH suffix), a neutral choice that disappears into painted drywall, plaster and wood ceilings alike. Two spring loaded clips let the fixture attach to any ceiling material, so retrofits into an existing ceiling are quick and clean.

Dim-to-warm light quality
This general application fixture uses a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90. The headline feature is colour temperature dimming: from 3000 K down to 1800 K. At full brightness you get a crisp, useful white for cooking and cleaning; as you turn the dimmer down, the light shifts toward a deep amber, candle-like glow for evenings and entertaining. The lens delivers a controlled 45° beam spread, which keeps the light on the surfaces you care about and off your eyes.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
Colour: WH (white trim)
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2¾" (70mm)
Input: 100-135V AC, 50/60Hz
LM79 / LM80: Yes
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Operating Temperature: -40°C+40°C (-40°F+104°F)
Warranty: Lifetime
Wattage: 7W
SKU: RA3-7G-DTW-90WH

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable class II electronic LED driver with 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector joins the driver to the fixture, and that assembly is approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring fast — no wire nuts to fight with above your head. Cut a Ø 2¾" (70mm) hole, connect, tuck the driver into the cavity, squeeze the clips and you're done. The fixture is suitable for wet locations and approved for direct contact with insulation, so it goes into shower ceilings, soffits and insulated attics without an extra enclosure.

Compatibility, applications and documents
Use industry standard TRIAC/ELV dimmers for smooth dim-to-warm control. Accessories listed for this family are sold separately and include the SLM-60-FC flexible connector for LUNA fixtures, the P-2810 round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel work — a real answer to the "recessed lighting vapor barrier" question in Canadian climates. Typical projects: a grid of downlights over a kitchen island, accent lighting in a condo living room, warm ambience in a restaurant dining room, or a covered deck that stays inviting after dark. Need fixed colour temperatures instead of dim-to-warm? Compare the 3" Luna gimbal recessed fixture 3000K white or the 3" Luna gimbal recessed fixture black. The full technical PDF spec sheet is in the Documentation tab for dimensions, ordering guide and approvals.
