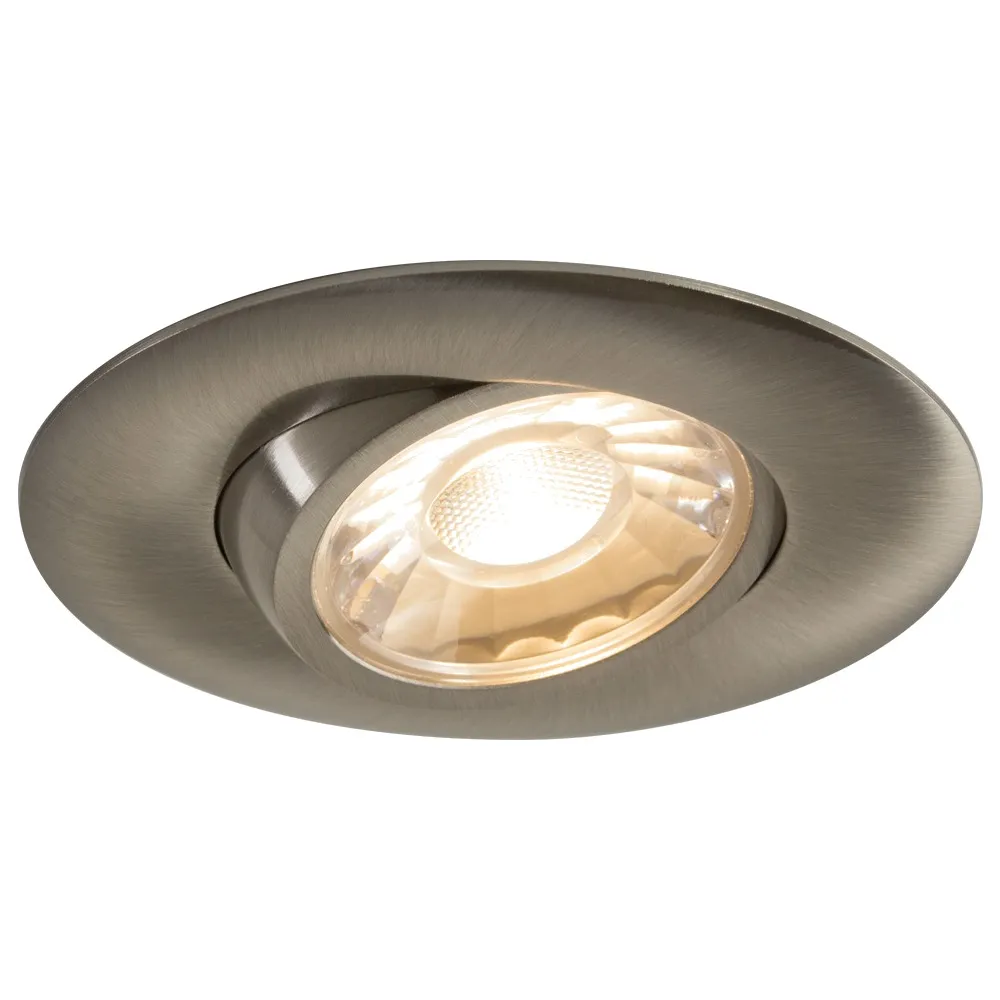

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90BN

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-30K-90BN
Brand: LITELINE
SKU: RA3-7G-30K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3-7G-30K-90BN

Brand: LITELINE

Small aperture, big impact: the 3" LUNA Gimbal Recessed Fixture by LITELINE (SKU RA3-7G-30K-90BN) is the compact recessed downlight you reach for when you want clean ceilings and light exactly where you aim it. People search for it as a 3 inch pot light, a gimbal LED downlight, an adjustable recessed light or simply a directional LED downlight — it is all of those in one tidy brushed nickel package. The tilting gimbal lets you swing the beam off vertical, so you can wash a stone fireplace, graze a feature wall, highlight artwork, light a kitchen island or aim a row of accents down a hallway instead of dropping flat light straight onto the floor.

This is a 7 watt LED fixture that delivers up to 745 lumens at an efficient 96 lumens per watt, with a warm 3000 K colour temperature and a typical CRI of 90 so skin tones, wood, paint and fabrics look true. The lens produces a controlled 45° beam spread, and the gimbal tilts up to 30°. Inside is a durable airtight aluminum body with an anodized blue heat sink for maximum airflow around the LED, paired with a 170 mA dimmable Class II electronic driver in an extruded aluminum hardwire box (100-135V AC, 50/60 Hz, power factor 0.95). It is dimmable with standard TRIAC/ELV dimmers, cETLus certified, LM79 and LM80 tested, rated for wet locations and approved for direct contact with insulation. Projected life is 70% at 33,000 hours, backed by a lifetime warranty. Cut-out is Ø 2 3/4" (70 mm), and it operates from -40°C to +40°C (-40°F to +104°F).

It belongs in kitchens, bathrooms, showers, hallways, basements, condos and covered porches, and works just as well in boutiques, clinics, offices and restaurants — anywhere a Canadian renovation needs small, efficient, dimmable recessed lighting that survives our winters and our humidity. Two spring-loaded clips let it mount in almost any ceiling material, and the 18" FT6 rated cable with DC 2.1 connector is approved for plenums and suspended ceilings. Want the same fixture in another finish or a different white? See the 3" LUNA gimbal recessed fixture RA3-7G-30K-90BK in black or the 3" LUNA gimbal recessed fixture RA3-7G-30K-90WH in white. Order your LUNA gimbals and light your project the way you meant to.

Built to last, built to breathe
The LUNA RA3-7G-30K-90BN uses a durable airtight aluminum body with an adjustable gimbal, so the trim stays flush while the optic pivots up to 30° toward whatever you want to feature. An anodized blue heat sink sits directly behind the LED module to keep airflow — and therefore light output and colour stability — where it needs to be over the long haul. The brushed nickel trim (BN in the ordering guide) gives a soft metallic edge that pairs beautifully with stainless appliances, nickel faucets and modern hardware, while the small Ø 2 3/4" (70 mm) hole cut keeps ceilings looking calm instead of perforated.

Light quality you can see
Seven watts produce up to 745 lumens, which works out to 96 lumens per watt — real efficiency compared to the halogen cans this style of fixture replaces, often using up to 80% less energy for comparable accent light. The fixed 3000 K colour temperature is a warm white that flatters wood floors, warm paint and quartz counters, and the typical CRI 90 rendering means reds and skin tones stay natural — important in bathrooms, retail displays and dining rooms. The lens sets a 45° beam spread, tight enough to shape a wall wash or an island, wide enough to overlap comfortably in a general downlighting layout.

Electrical and installation
The fixture ships with an extruded aluminum hardwire box containing a 170 mA dimmable Class II electronic driver, 100-135V AC, 50/60 Hz input, power factor 0.95. Three "Quick connect" push-in terminals make the wiring fast, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. Two spring-loaded clips secure the housing to virtually any ceiling material for a clean retrofit. Dimming is TRIAC/ELV compatible with industry standard dimmers; for the tested dimmer list, consult liteline.com/lunadimmers. Rated for wet locations and approved for direct contact with insulation, it also handles an operating range of -40°C to +40°C (-40°F to +104°F).

Technical specifications
SKU: RA3-7G-30K-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per Watt: 96
CCT: 3000 K
CRI: 90
Beam Angle: 45°
Hole Cut: Ø 2 3/4" (70 mm)
Input: 100-135V AC, 50/60 Hz
Dimming Tech: TRIAC/ELV
Power Factor: 0.95
Class II: Yes
Certification: cETLus
LM79 / LM80: Yes
Projected Life: 70% @ 33,000 hrs
Operating Temperature: -40°C+40°C (-40°F+104°F)
Warranty: Lifetime

Where to use it, and what to plan for
Use rows of these 3" gimbal pot lights to graze a brick chimney in a living room, tilt them over a kitchen backsplash, aim them at a shower niche (wet location rated), or line a basement stairwell in a Québec or Ontario renovation. Commercially, they suit boutique display walls, clinic corridors, café seating and small office reception areas. Accessories in the LUNA family are sold separately and worth planning for: the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars and brackets, the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders — a real concern in insulated Canadian ceilings. The complete technical PDF (RA3-7G-30K-90BN Spec Sheet) is in the Documentation tab with dimensions and the full ordering guide. Matching the finish across a project is easy: compare the RA3-7G-30K-90BK black gimbal, the RA3-7G-30K-90WH white gimbal, or the dim-to-warm RA3-7G-DTW-90BN in brushed nickel.

Technical Files
