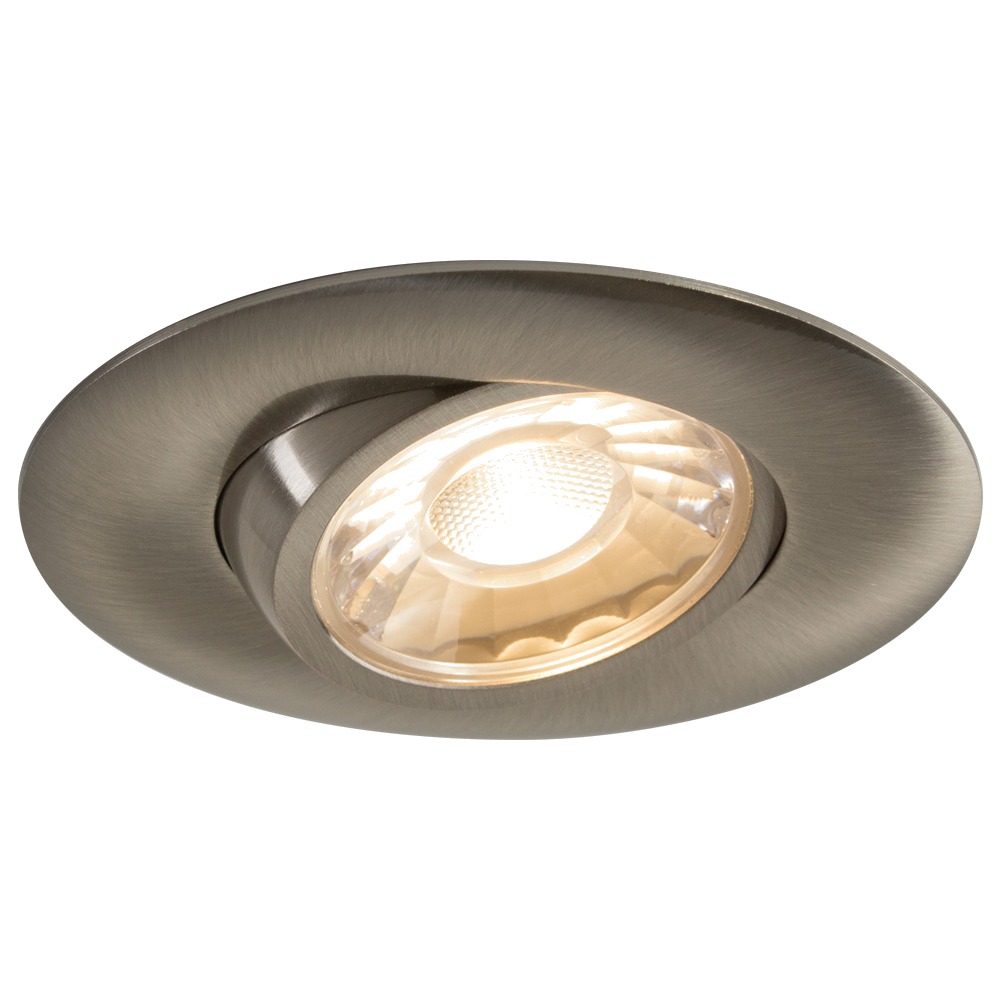

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90BN

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-35K-90BN
Brand: LITELINE
SKU: RA3-7G-35K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3-7G-35K-90BN

Brand: LITELINE

Point the light exactly where you want it — the 3" LUNA gimbal recessed fixture RA3-7G-35K-90BN from LITELINE is the small-aperture recessed downlight (the "pot light" everyone asks for) that tilts to wash a wall, graze a stone fireplace or highlight artwork instead of just staring straight down. This is a complete LED recessed lighting unit: an airtight aluminum body with an adjustable gimbal, a hardwire box and a dimmable driver, all designed for retrofit work where you simply cut the hole, connect the wires and clip it in. Homeowners use it for kitchens, hallways and bathrooms; contractors love it for condo renovations, offices, boutiques and restaurants where a clean, discreet ceiling is the whole point.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood, paint and merchandise look true. The light source is dim-to-warm: as you lower the level, the colour temperature travels from 3000 K down to 1800 K, mimicking the cozy glow of an incandescent bulb, and it works with industry standard TRIAC/ELV dimmers. The lens gives a comfortable 45° beam spread, input is 100-135V AC, 50/60Hz, power factor is 0.95, and the unit is Class II. It is cETLus certified, suitable for wet locations and approved for direct contact with insulation, with an operating range of -40°C to +40°C (-40°F to +104°F), a projected life of 70% at 33,000 hours and a lifetime warranty. Hole cut is Ø 2 3/4" (70mm) and the trim finish here is brushed nickel.

Because it is rated for wet and insulated ceilings and handles Canadian cold down to -40°C, this LUNA gimbal is just as comfortable over a shower, in a covered porch soffit or in a garage as it is above a kitchen island. Use several on one dimmer for a warm, restaurant-style evening ambiance, or aim them along a corridor in a clinic or retail shop. Matching finishes are available: 3" LUNA gimbal recessed fixture RA3-7G-35K-90BK in black and 3" LUNA gimbal recessed fixture RA3-7G-35K-90WH in white. Order your RA3-7G-35K-90BN today and give your ceiling the warm, adjustable light it deserves.

Built to last, built to breathe
The LUNA 3" gimbal starts with a durable airtight aluminum body and an adjustable gimbal that lets you aim the beam instead of settling for a fixed downlight. Inside, an anodized blue heat sink keeps airflow moving around the LED light source, which is what protects light output and colour over the long haul. Two spring-loaded clips hold the fixture in any ceiling material, and the compact build with a 30° tilt lets it slip into tight plenums, sloped ceilings and thin bulkheads where a full recessed housing would never fit. The trim finish on this SKU is brushed nickel, a warm metallic that blends with stainless appliances and modern hardware.

Light quality and dim-to-warm
The 7 watt LED module produces up to 745 lumens of uniform intensity with a typical CRI of 90, a level of colour rendering that makes a real difference over a vanity, a dining table or a display case. The real signature here is dim-to-warm: the colour temperature shifts from 3000 K to 1800 K as you dim, so a bright, crisp kitchen at supper becomes a candle-like lounge later in the evening. Photometric performance is documented through LM79 and LM80 testing, and the 45° beam spread from the lens gives soft, even coverage without harsh hot spots.

Electrical and installation
The extruded aluminum hardwire box houses a 170mA dimmable Class II electronic LED driver with 100-135V AC input, and it connects to the fixture through an 18" FT6 rated cable with a DC 2.1 connector — approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast, even when you are installing a dozen units in one afternoon. Cut a Ø 2 3/4" (70mm) hole, feed the wires, push in the clips and you are done. Pair the fixtures with standard TRIAC/ELV dimmers; LITELINE publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
SKU: RA3-7G-35K-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K~1800 K (dim-to-warm)
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Hole cut: Ø 2 3/4" (70mm)
Operating temperature: -40°C+40°C (-40°F+104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Class II: Yes
Warranty: Lifetime

Applications, accessories and documentation
Think kitchen perimeters and islands, bathroom ceilings and showers, hallways, walk-in closets, basement renovations, covered entries, plus offices, salons, cafés and boutiques that need a tidy ceiling and flattering light. Accessories are sold separately: the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel work — a must in Canadian insulated ceilings. If you prefer a fixed 3000 K or a cooler look elsewhere in the project, the same housing is offered in other colour temperatures such as RA3-7G-30K-90BN and RA3-7G-27K-90BN, or in the dim-to-warm brushed nickel version RA3-7G-DTW-90BN. The full technical PDF spec sheet is available in the Documentation tab for your submittals and inspections.

Technical Files
