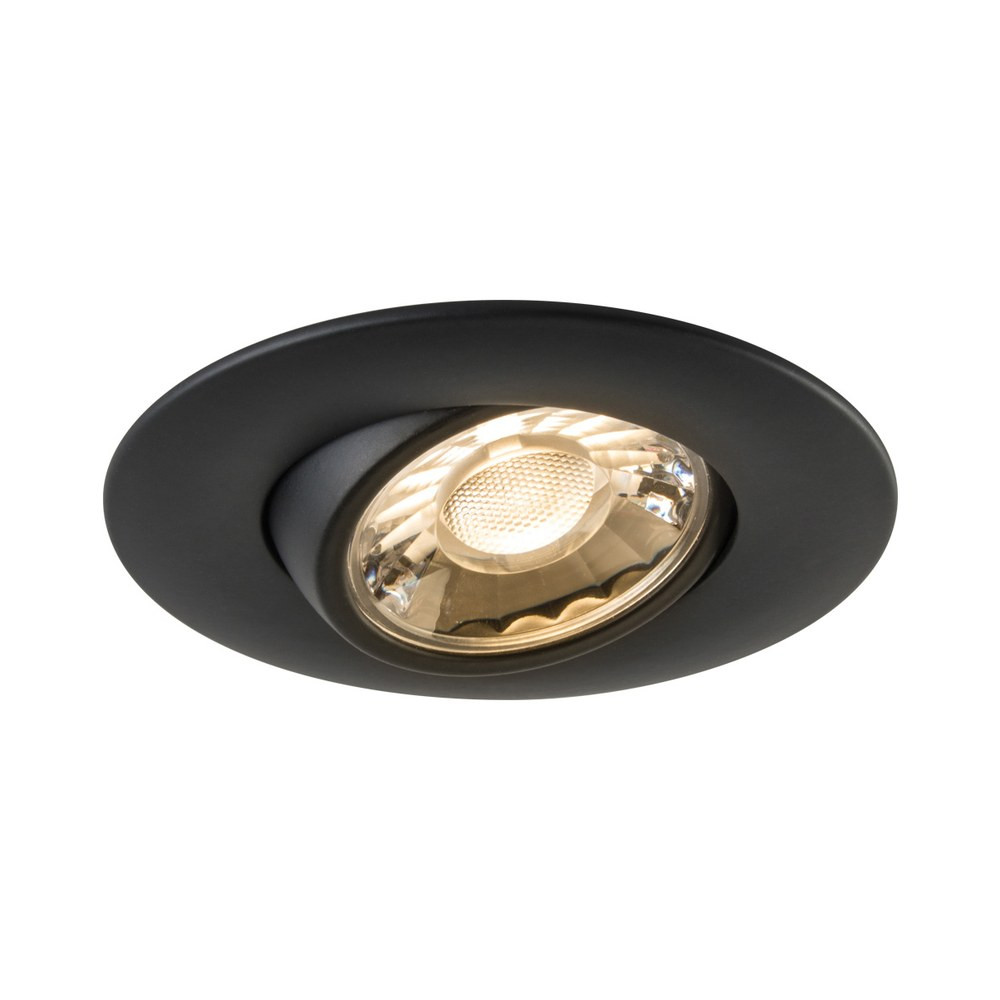

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-40K-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-40K-90BK
Brand: LITELINE
SKU: RA3-7G-40K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-40K-90BK

Brand: LITELINE

Small aperture, big impact: the 3" LUNA gimbal recessed fixture from LITELINE (model RA3-7G-40K-90BK) is the little adjustable downlight that lets you aim light exactly where it matters. Shoppers look for it under many names — recessed lighting, pot light, 3 inch LED gimbal, adjustable recessed downlight, directional LED downlight — and it answers all of them in one compact, easy-to-install package. Its tilting gimbal head swivels inside the trim so you can wash a stone fireplace, graze a feature wall, highlight artwork, or line up a crisp row of accent lights over a kitchen island, all without changing the ceiling layout.

This is a 7 W LED fixture that delivers up to 745 lumens — an efficient 96 lumens per watt — with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise look true. The lens produces a controlled 45° beam spread, and the head tilts up to 30° for precise aiming. It runs on 100-135V AC, 50/60 Hz through a dimmable Class II electronic LED driver, and it is dimmable with industry standard TRIAC/ELV dimmers. The airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, it is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for operating temperatures from -40°C to +40°C (-40°F to +104°F), and backed by a lifetime warranty with a projected life of 70% at 33,000 hours. Power factor is 0.95, and the black trim finish disappears into dark ceilings for a discreet look.

With a Ø 2 3/4" (70 mm) hole cut and two spring loaded clips, it drops into virtually any ceiling material, which makes it a favourite for condo renos, basements, hallways, closets, sloped ceilings, bathrooms, covered porches and soffits across Canada — plus retail displays, boutiques, cafés and offices. Prefer the same fixture in another look or colour temperature? See the 3" Luna gimbal recessed fixture RA3-7G-30K-90BK, the warmer RA3-7G-27K-90BK, or the dim-to-warm RA3-7G-DTW-90BK. Plan your layout, order your quantity and give every room light that points where you want it.

Built to last, built to install fast
The LUNA gimbal starts with a durable airtight aluminum body and an adjustable gimbal head, so the optic moves while the trim stays flush and clean. An anodized blue heat sink sits behind the LED to keep airflow — and therefore light output and colour — stable over the long run. Two spring loaded clips hold the fixture in almost any ceiling material, and the Ø 2 3/4" (70 mm) hole cut means a fast retrofit with a standard hole saw. The gimbal tilts up to 30°, which is exactly what you need on sloped ceilings, over shelving, or when a row of fixtures has to be aimed at a wall instead of straight down.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90, so colours stay honest — a real advantage in kitchens, bathrooms, galleries and retail. The lens delivers a 45° beam spread: tight enough to create accents and pools of light, wide enough to layer smoothly when fixtures are spaced in a grid. At 96 lumens per watt, a full ceiling of these draws very little power compared with the halogen pot lights they replace, which can cut lighting energy use dramatically in a renovation.

Electrical, driver and dimming
Power comes from an extruded aluminum hardwire box housing a 170 mA dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring quick and tidy — a real time saver when you are installing a dozen units in one afternoon. The fixture dims with industry standard TRIAC/ELV dimmers; always confirm your dimmer against the manufacturer's compatible dimmer list before you close the ceiling.

Technical specifications
SKU: RA3-7G-40K-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Hole cut: Ø 2 3/4" (70mm)
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Class II: Yes
Power factor: 0.95
Operating temperature: -40°C+40°C (-40°F+104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime
Trim finish: Black

Applications, accessories and documentation
Because it is suitable for wet locations and approved for direct contact with insulation, this LED recessed light works under a covered porch, in a soffit, in a bathroom ceiling or in an insulated attic ceiling without a separate housing. Contractors use it for whole-condo retrofits, basement finishing, hallway runs and retail display lighting; homeowners love it over islands, in mudrooms and along stairwells. Accessories are sold separately and include the P-2810 pre-mounting plate with driver attachment clip for 3" LUNA fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the SLM-60-FC flexible connector for LUNA fixtures, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel work. Need a different finish or colour temperature in the same family? Compare the 3" Luna gimbal RA3-7G-35K-90BK, the brushed nickel RA3-7G-30K-90BN or the white dim-to-warm RA3-7G-DTW-90WH. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit package.
