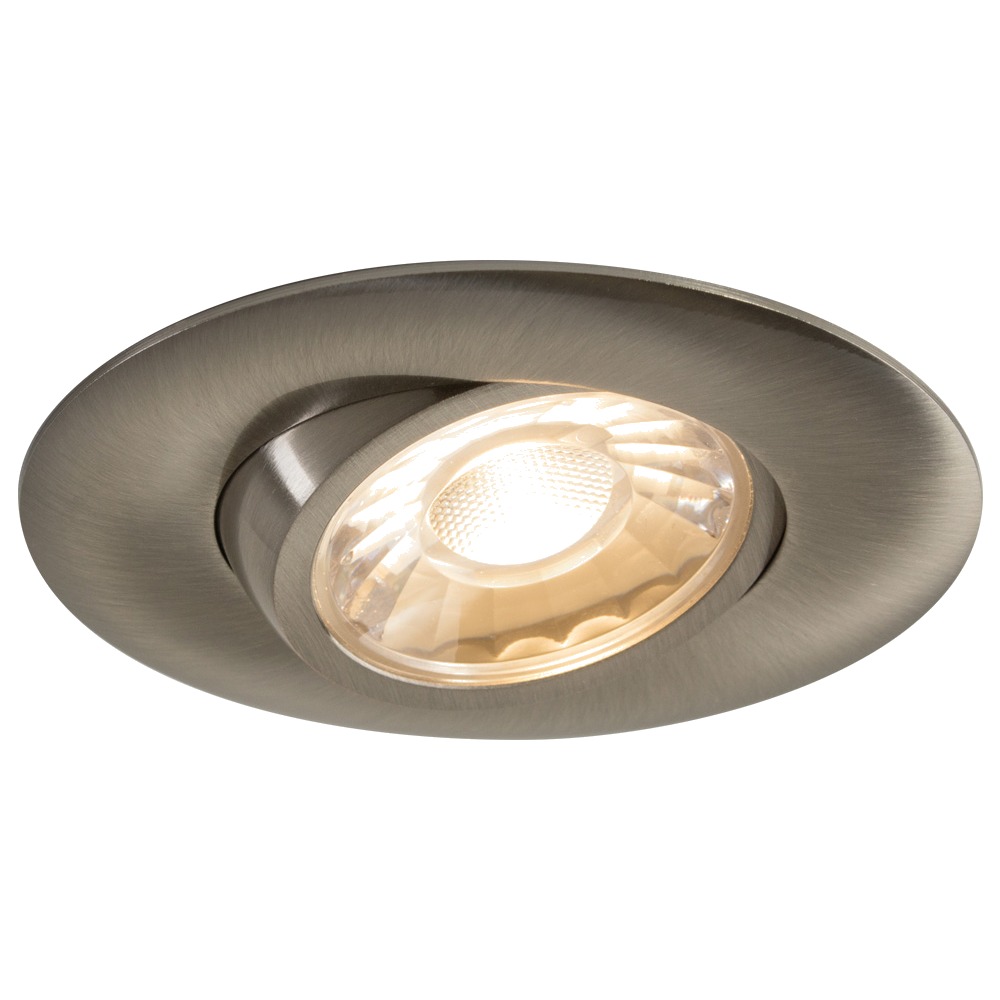

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90BN

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90BN
Brand: LITELINE
SKU: RA3-7G-27K-90BN
Price: 75.97 CAD
Availability: InStock

SKU: RA3-7G-27K-90BN

Brand: LITELINE

Small aperture, big impact: the 3" LUNA gimbal recessed fixture RA3-7G-27K-90BN gives you a tight, tidy ceiling hole and a light head you can aim exactly where you want it. Whether you call it a recessed downlight, a pot light, a gimbal spot or simply a 3-inch LED downlight, this is the fixture people reach for when they want discreet ceiling lighting that still does real work — washing an art wall, grazing a stone fireplace, lighting a kitchen island or lining a hallway with clean, evenly spaced points of light. The adjustable gimbal tilts up to 30°, so you can correct for sloped ceilings, highlight cabinetry, or aim away from a TV screen without moving the housing. It is a retrofit-friendly solution: no can, no bulky housing, just a slim LED head, a remote driver box and two spring clips.

Under the brushed nickel trim sits a durable airtight aluminum body with an anodized blue heat sink that keeps airflow moving around the LED source. The 7 watt LED module produces up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood grain, paint colours and skin tones read true. This version is specified in 3000 K colour temperature and offers colour temperature dimming from 3000 K down to 1800 K, for a candle-like glow as you dim. It runs on a 170mA dimmable class II electronic driver with 100-135V AC, 50/60Hz input, dims with industry standard TRIAC/ELV dimmers, and delivers a 45° beam spread. Power factor is 0.95, projected life is 70% at 33,000 hrs, and it is cETLus certified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, and backed by a Lifetime warranty.

This little downlight earns its place in kitchens, bathrooms, showers, covered porches, basements, closets, retail displays, boutique hotels, offices and restaurants — anywhere a 2¾" (70mm) hole cut is all the ceiling you can spare. Its -40°C to +40°C operating range and wet location rating suit Canadian soffits, entryways and three-season rooms. Need a different look or colour temperature? The same fixture is offered as 3" Luna gimbal recessed fixture RA3-7G-27K-90WH in white, 3" Luna gimbal recessed fixture RA3-7G-27K-90BK in black, and in warmer or cooler options like 3" Luna gimbal recessed fixture RA3-7G-35K-90BN. Order your RA3-7G-27K-90BN and light the room the way you pictured it.

Built to disappear into the ceiling
The LUNA 3" gimbal is built around a durable airtight aluminum body fitted with an adjustable gimbal ring, so the visible part is little more than a brushed nickel trim and an aimable light head. An anodized blue heat sink sits behind the LED module to provide maximum airflow to the light source, which is what keeps output and colour stable over the long haul. Two spring loaded clips let the fixture attach to any ceiling material — drywall, plaster, wood, T-bar-adjacent millwork — and the gimbal tilts up to 30° for accent aiming. The head's beam angle of 45° is the sweet spot for general downlighting that can also be turned into wall wash or accent light.

Light quality and dim-to-warm behaviour
This 7 watt LED downlight produces up to 745 lumens with uniform intensity and a typical CRI of 90, which matters a lot in kitchens, bathrooms and retail, where you want true reds, warm woods and accurate merchandise colour. Specified at 3000 K, it also offers colour temperature dimming from 3000 K to 1800 K: dim the circuit and the light drifts warmer, the way an incandescent or a candle does. Efficacy is 96 lumens per watt and power factor is 0.95, so you get soft, flattering light without a heavy electrical load.

Technical specifications
SKU: RA3-7G-27K-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
Colour: Brushed Nickel
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2¾" (70mm)
Input: 100-135V AC, 50/60Hz
LM79 / LM80: Yes
Operating Temperature: -40°C+40°C (-40°F+104°F)
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W

Wiring, driver and installation
Power comes from an extruded aluminum hardwire box holding a 170mA dimmable class II electronic driver with 100-135V AC input. Three Quick Connect push-in terminals make line, neutral and ground wiring fast, and an 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture — a combination approved for use in plenums and suspended ceilings. Cut a Ø 2¾" (70mm) hole, drop the driver box above the ceiling, click the connector, squeeze the clips and you are done. Pair the circuit with a compatible TRIAC/ELV dimmer; Liteline publishes its compatible dimmer list at liteline.com/lunadimmers. Because the fixture is approved for direct contact with insulation and rated for wet locations, it can go in insulated attics, shower ceilings and covered outdoor soffits.

Accessories, family options and documentation
Accessories are sold separately: the SLM-60-FC 60" flexible connector for use with SlimLED and LUNA fixtures, the P-2810 2¾" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and vapour barrier extenders VBE-1, VBE-2 and VBE-5 — a real answer to the common "recessed lighting vapor barrier" question in Canadian builds. OnCloud smart controls LC-CRTL-3WAY-1 and LC-CRTL-DIM-1, compatible with the WiZ App, round out the system. Matching finishes and colour temperatures are available across the family, including 3" Luna gimbal recessed fixture RA3-7G-30K-90BN and the dim-to-warm 3" Luna gimbal recessed fixture RA3-7G-DTW-90BN. The full technical PDF spec sheet is in the Documentation tab for your submittals and inspections.

Technical Files
