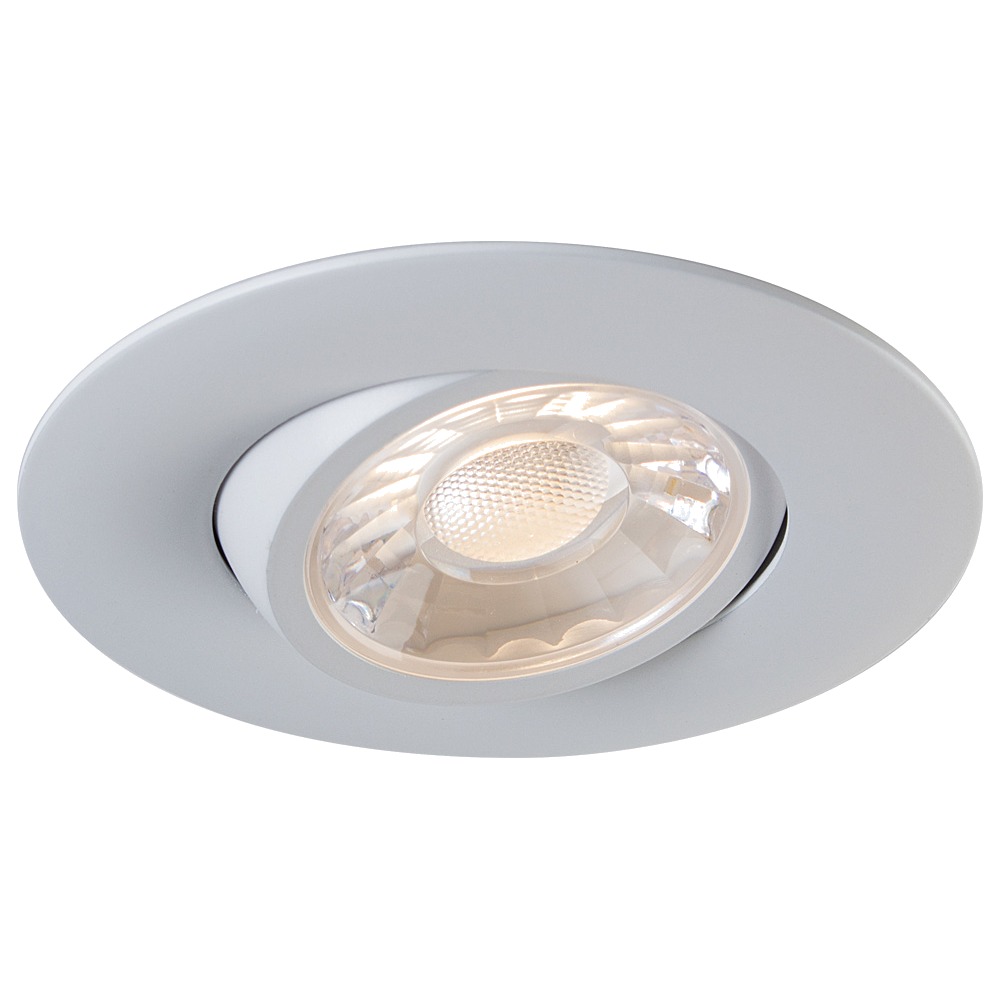

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90WH
Brand: LITELINE
SKU: RA3-7G-50K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-50K-90WH

Brand: LITELINE

Small aperture, big impact: the 3" LUNA gimbal recessed fixture from LITELINE is the little recessed downlight that lets you point light exactly where you want it. Known by installers as a 3 inch pot light, a gimbal trim, an adjustable recessed light or simply a directional LED downlight, this model (SKU RA3-7G-50K-90WH) combines a compact aluminum body with a tilting gimbal so you can wash an accent wall, highlight artwork, graze a stone fireplace or light a kitchen island without changing fixtures. It suits retrofit work as much as new builds, in homes, condos, boutiques, offices and hospitality spaces where a discreet ceiling aperture matters more than a bulky housing.

Under the hood, a 7 watt LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and merchandise all look true. The lens produces a 45° beam spread, and the fixture is dim-to-warm: colour temperature travels from 3000 K down to 1800 K as you lower the light, a candlelit effect that is genuinely cosy in the evening. It runs on 100-135V AC, 50/60Hz through a 170mA dimmable Class II electronic driver, dims with industry-standard TRIAC/ELV dimmers, holds a 0.95 power factor, and is rated for an operating range of -40°C to +40°C (-40°F to +104°F). It is cETLus certified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, with a projected life of 70% @ 33,000 hrs and a lifetime warranty. Hole cut is Ø 2 3/4" (70 mm).

Put it to work in hallways, bedrooms, kitchens, covered porches, showers and closets, or line a series of them down a retail aisle, a reception desk or a restaurant banquette. Its airtight aluminum body and insulation contact approval make it a smart fit for Canadian ceilings where air sealing and attic insulation are part of the job. Matching finishes and colour temperatures are available across the family, including 3" Luna gimbal recessed fixture RA3-7G-DTW-90WH, RA3-7G-DTW-90BK in black and RA3-7G-DTW-90BN in brushed nickel. Plan your layout, order your quantity, and give every room light you can aim.

Built to last, built to breathe
The LUNA gimbal starts with a durable airtight aluminum body paired with an adjustable gimbal, so the light source tilts where the design calls for it instead of staring straight down. Inside, an anodized blue heat sink maximizes airflow around the LED, which is exactly what keeps output and colour stable over the years in a small 3 inch recessed light. Two spring loaded clips hold the fixture in the ceiling and grip drywall, plaster, wood or T-bar-adjacent surfaces, so the same gimbal downlight works in a renovation opening and in fresh new-construction drywall. Trim finishes in the family cover black, brushed nickel and white.

Light quality and dim-to-warm
This is a general application fixture with a 7 watt LED module that maintains uniform intensity and produces up to 745 lumens, with a typical CRI of 90 for rich, honest colour. The lens sets a 45° beam spread, a versatile angle that covers general ambient lighting and still has enough punch for accent work. The dim-to-warm behaviour is the star: as you dim, the colour temperature shifts from 3000 K down to 1800 K, replicating the warm glow people love from incandescent and halogen sources, while drawing a fraction of the energy. LM79 and LM80 testing back the photometric and lumen maintenance claims, and projected life is 70% @ 33,000 hrs.

Electrical and installation details
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast, which contractors appreciate when there are thirty openings to finish in a day. Cut a Ø 2 3/4" (70 mm) hole, connect, tuck the driver above the ceiling, squeeze the clips and you are done. Pair it with industry-standard TRIAC/ELV dimmers; the manufacturer publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2 3/4" (70mm)
Input: 100-135V AC, 50/60Hz
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Operating Temperature: -40°C+40°C (-40°F+104°F)
Warranty: Lifetime
Wattage: 7W

Applications, accessories and documentation
Because it is rated for wet locations and approved for direct contact with insulation, this recessed downlight handles covered entries, soffits, shower ceilings and insulated attic bays as easily as a living room. Think tilt-to-aim rows over a kitchen island, grazing light on a feature wall in a condo lobby, display lighting in a boutique, or soft evening levels in a restaurant where the dim-to-warm curve does the mood work for you. Accessories are sold separately and include the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and VBE-1, VBE-2 and VBE-5 vapour barrier extenders. For full details, the technical PDF spec sheet for RA3-7G-50K-90WH is available in the Documentation tab. Building a whole floor? Match apertures with 3" Luna gimbal recessed fixture RA3-7G-30K-90WH or RA3-7G-27K-90WH.
