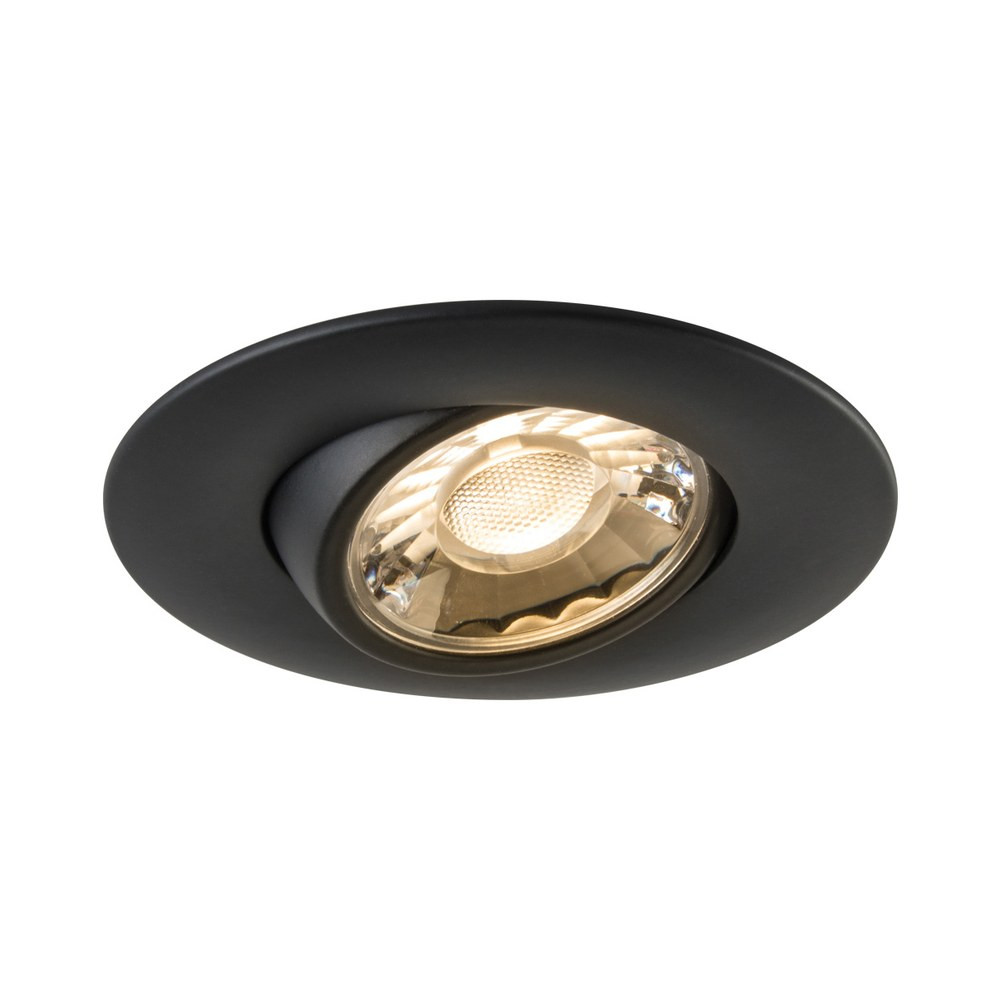

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-27K-90BK
Brand: LITELINE
SKU: RA3-7G-27K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-27K-90BK

Brand: LITELINE

Small aperture, big impact: the LITELINE 3" LUNA gimbal recessed fixture (SKU RA3-7G-27K-90BK) is the little aimable downlight that quietly makes a room look designed. People search for it as a 3 inch gimbal pot light, an adjustable recessed downlight, a directional LED pot light or simply a small recessed LED light — and it answers to all of those names. The all-in-one LED module and trim tilt inside a durable airtight aluminum body, so you can point the light exactly where it matters: a piece of art, a fireplace stone wall, a kitchen island, a shower niche, a retail display. It is designed for both residential renovations and commercial projects, and it installs as a retrofit downlight in existing ceilings as easily as in new work.

Under the black trim you get a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and merchandise all look true. The 45° beam spread gives a controlled, glare-aware pool of light instead of a flat wash, and the fixture is dimmable with industry standard TRIAC/ELV dimmers. The class II electronic driver runs on 100-135V AC, 50/60Hz, with a 0.95 power factor, and comes in an extruded aluminum hardwire box fitted with three quick connect push-in terminals plus an 18" FT6 rated cable with DC 2.1 connector approved for plenums and suspended ceilings. It is cETLus certified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, rated from -40°C to +40°C, projected at 70% at 33,000 hrs and backed by a Lifetime warranty. Hole cut is Ø 2¾" (70mm).

Put it over a bathroom vanity or inside a shower, along a hallway, in a basement with tight joists, under a soffit or a porch canopy, in a boutique, café or office — anywhere a 3" aperture and an adjustable beam beat a big fixed can. The black trim disappears into dark ceilings and adds contrast to white ones. Matching finishes are available: see the 3" LUNA gimbal recessed fixture in brushed nickel and the 3" LUNA gimbal recessed fixture in white. Ready to aim your light where it counts? Add the LUNA gimbal to your project list today.

Built to last, built to hide
The LUNA 3" gimbal starts with a durable airtight aluminum body and an adjustable gimbal that lets you tilt the optic after the ceiling is closed. Inside, an anodized blue heat sink maximizes airflow around the LED light source, which is how a compact 3 inch LED pot light keeps its output stable year after year. Two spring loaded clips hold the fixture in place and let it attach to any ceiling material, from drywall to tongue-and-groove to a suspended ceiling tile. Because the housing is airtight and approved for direct contact with insulation, it belongs in insulated ceilings without a separate box.

Light quality you can see
The 7 watt LED module produces uniform intensity up to 745 lumens, a real 96 lumens per watt, with a typical CRI of 90 for honest colour rendering on cabinetry, tile, paint and merchandise. The lens delivers a 45° beam spread — wide enough to layer evenly on a ceiling grid, tight enough to accent. Colour temperature is 3000 K, the warm-neutral white most Canadian homeowners ask for in kitchens, baths and living areas, and it stays consistent across every fixture on the run.

Technical specifications
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CCT: 3000 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Power factor: 0.95
Class II: Yes
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Hole cut: Ø 2¾" (70mm)
Operating temperature: -40°C to +40°C (-40°F to +104°F)
Certification: cETLus, LM79, LM80
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime
Trim finish: BK (black)
SKU: RA3-7G-27K-90BK

Wiring, dimming and installation
Power comes from a 170mA dimmable class II electronic LED driver housed in an extruded aluminum hardwire box with three quick connect push-in terminals, so wiring is fast even overhead on a ladder. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. For dimmable recessed lighting, pair it with industry standard TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers. Useful accessories are sold separately and include the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, the P-2810 2¾" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, vapour barrier extenders VBE-1, VBE-2 and VBE-5, and the OnCloud smart Wi-Fi controls LC-CRTL-DIM-1 dimmer (120V) and LC-CRTL-3WAY-1 3-way switch, both compatible with the WiZ App.

Where it works and what else to look at
Use rows of these gimbals to wash a hallway, aim them at a stone fireplace or a gallery wall, tuck them into a shower or over a tub thanks to the wet location rating, light a covered porch or soffit, or build a clean grid in a condo, dental clinic, boutique or restaurant. If your project calls for the same body with colour temperature dimming from 3000 K down to 1800 K, look at the dim-to-warm versions: 3" LUNA gimbal dim-to-warm in black, brushed nickel or white. The full technical PDF (RA3-7G-27K-90BK Spec Sheet) is in the Documentation tab with dimensions, accessory codes and ordering details for your electrician or inspector.
