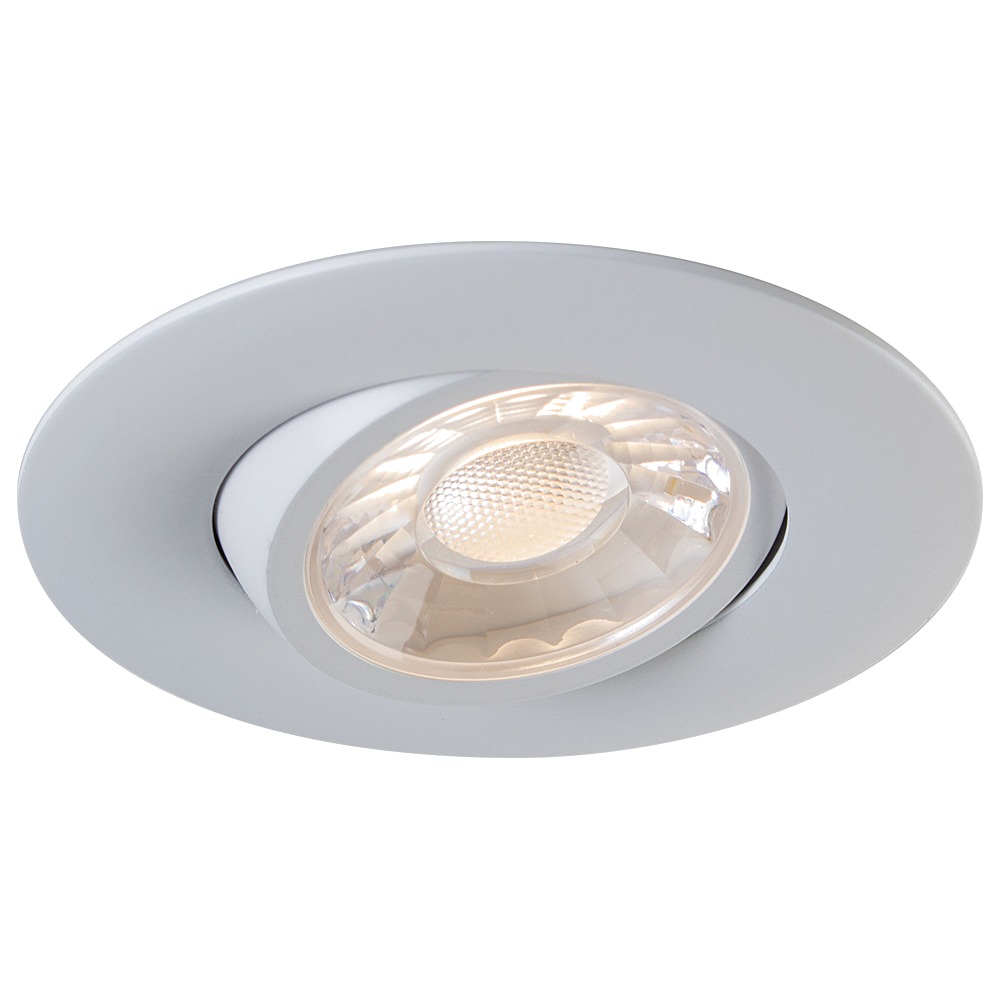

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-40K-90WH

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-40K-90WH
Brand: LITELINE
SKU: RA3-7G-40K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-40K-90WH

Brand: LITELINE

Small aperture, big presence: the 3" LUNA gimbal recessed fixture from LITELINE, model RA3-7G-40K-90WH, is the little recessed downlight that lets you aim light exactly where you want it. People call it a pot light, a 3-inch LED recessed light, an adjustable downlight or a gimbal trim — whatever the name, the idea is the same: a compact, airtight housing with a tilting gimbal head that swivels to graze a stone wall, wash a bookcase, highlight artwork or simply drop a clean pool of light on a kitchen island. It installs in a ceiling cutout with two spring-loaded clips, so it works in new construction as well as in retrofit jobs where you are cutting into an existing ceiling.

Under the white trim you get a durable airtight aluminum body with an anodized blue heat sink that keeps airflow moving around the LED module — the honest reason a small fixture can run reliably year after year. The 7 W LED module delivers up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint and fabrics look the way they should. The lens produces a 45° beam spread and the gimbal tilts up to 30°. Power comes from a dimmable Class II electronic driver rated 170 mA with 100-135V AC, 50/60Hz input, and the fixture dims smoothly on industry-standard TRIAC/ELV dimmers. It is cETLus certified, suitable for wet locations, approved for direct contact with insulation, operates from -40°C to +40°C, has a 0.95 power factor, LM79 and LM80 data, a projected life of 70% at 33,000 hrs and a lifetime warranty. Hole cut is Ø 2 3/4" (70 mm).

This is the fixture for kitchens, hallways, bathrooms and showers, covered porches, basements, stairwells, condos, boutiques, cafés, clinics and office corridors — anywhere a Canadian ceiling needs discreet, aimable light that laughs at humidity and cold. The white trim disappears into a painted ceiling; if your project calls for another look, the same fixture is offered in 3" LUNA gimbal recessed fixture RA3-7G-30K-90BK and 3" LUNA gimbal recessed fixture RA3-7G-30K-90BN, or in the dim-to-warm version 3" LUNA gimbal recessed fixture RA3-7G-DTW-90WH. Plan your layout, order your quantity and get the light pointed exactly where it matters.

Built to last in a tight ceiling
The LUNA 3" gimbal starts with a durable airtight aluminum body and an adjustable gimbal yoke that lets the optic tilt within the trim. Inside, an anodized blue heat sink maximizes airflow around the LED light source, which is what keeps output and colour stable over the long run in a small recessed downlight. Two spring-loaded clips hold the fixture to any ceiling material, and the compact format — 3 31/32" (85 mm) outside, 2 5/16" (59 mm) deep, with a 1 7/8" (48 mm) and 4 5/8" (117 mm) footprint on the driver box side — slips into shallow cavities where a full housing simply will not go.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens, a very efficient 96 lumens per watt. A typical CRI of 90 means whites stay clean and reds stay rich — a real difference in kitchens, bathrooms, retail displays and anywhere people look closely at colour. The lens shapes a 45° beam spread, tight enough to be directional but wide enough to overlap comfortably when fixtures are laid out on a grid. Tilt the gimbal up to 30° to aim at a backsplash, a feature wall, shelving or a piece of art.

Electrical, dimming and installation
The extruded aluminum hardwire box houses a 170 mA dimmable class II electronic LED driver with 100-135V AC input, connected to the fixture by an 18" (457 mm) FT6 rated cable with a DC 2.1 connector — approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast on site, a real time-saver when a contractor is installing a dozen units in one afternoon. Cut a Ø 2 3/4" (70 mm) hole, make your connections, squeeze the clips and you are done. The fixture is dimmable on TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Model: RA3-7G-40K-90WH
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 7W
Lumens: 745
Lumens per watt: 96
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Hole cut: Ø 2 3/4" (70 mm)
Power factor: 0.95
Operating temperature: -40°C to +40°C (-40°F to +104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Applications, accessories and documentation
Think open-concept kitchens with a row of gimbals angled at the counter, a hallway in a Montréal condo, a basement rec room with low joists, a shower or covered entry where the wet location rating matters, or a small clinic and boutique that need clean, high-CRI accent light. Accessories are sold separately and are made for this family: the SLM-60-FC 60" flexible connector for use with SlimLED and LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel work. For smart control, the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer (120V) and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-way switch work with the WiZ App. Need a different colour temperature or finish on the same project? See 3" LUNA gimbal recessed fixture RA3-7G-27K-90WH, 3" LUNA gimbal recessed fixture RA3-7G-35K-90BN or the dim-to-warm 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BK. The full technical PDF spec sheet is in the Documentation tab for your electrician, your designer or your permit package.
