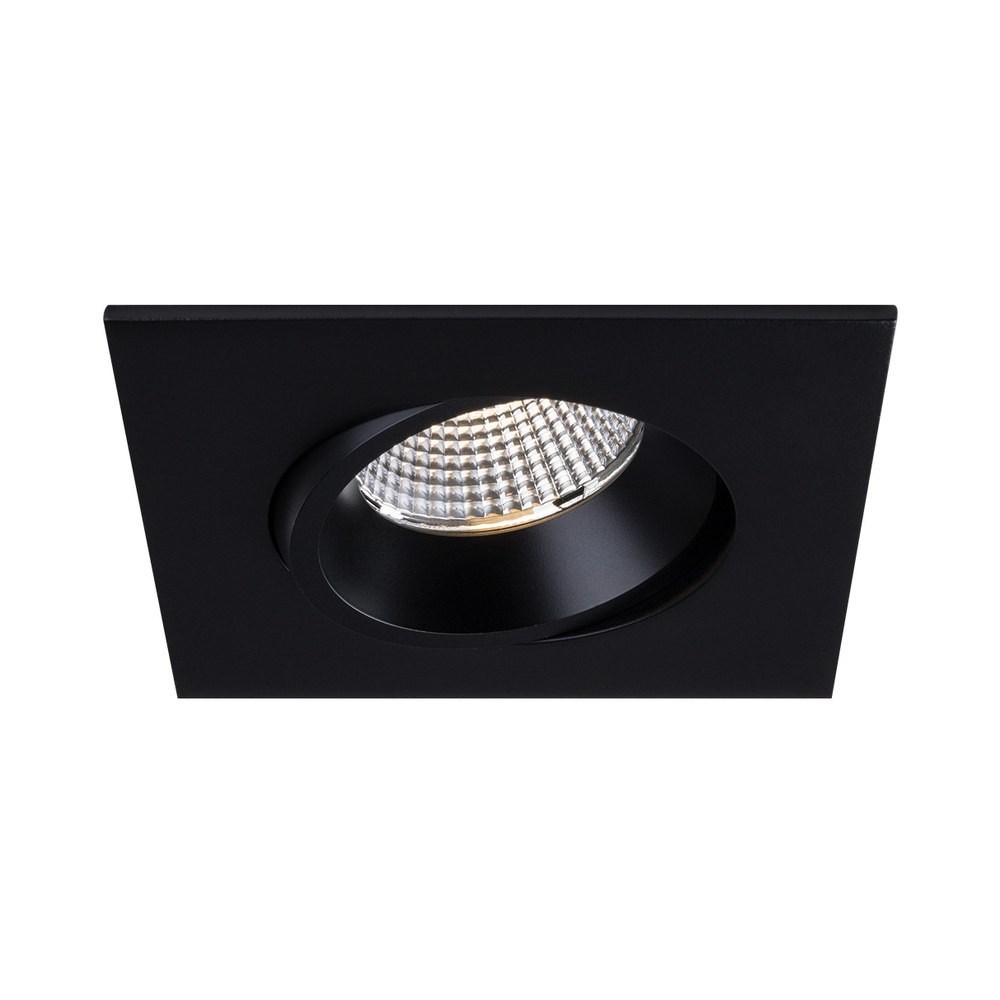

3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90BK

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90BK
Brand: LITELINE
SKU: RA35S-12RG-DTW90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35S-12RG-DTW90BK

Brand: LITELINE

Say goodbye to flat, glary ceilings. The 3.5" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA35S-12RG-DTW90BK) by LITELINE is the little square pot light that does the heavy lifting — an aimable, low-glare recessed downlight with a deep-set optic and a black trim that quietly disappears into the ceiling. People search for it as a square downlight, a gimbal pot light, a directional recessed light or simply a small square LED recessed fixture, and it answers to all of those names. Because the gimbal tilts, you can wash a stone fireplace, graze a feature wall, light artwork, or keep a straight line of task light over a kitchen island — all from the same trim, all from the same 3 5/8" hole.

This version delivers up to 1160 lumens from a 12 watt LED module (up to 102 lumens per watt), with a typical CRI of 95+ so wood, paint, skin tones and merchandise look the way they should. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so one box covers every room in the house. Lumen output by CCT: 1040 at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K. The 38° beam and 40° tilt (20° each way) give crisp, directional light; dimming runs smoothly from 100% to 10% on standard forward-phase / reverse-phase TRIAC/ELV dimmers. Input is 100-135V AC, 50/60Hz, power factor greater than 0.90, Class II, cETLus certified and Energy Star qualified, rated for wet locations and direct contact with insulation, airtight, with a projected life of 70% at 50,000 hours and a lifetime warranty.

From a Montréal condo hallway to a Calgary showroom, this fixture is at home in kitchens, living rooms, bedrooms, corridors, covered porches and soffits, bathrooms and showers (wet location approved), retail displays, boutique hotels and offices. The airtight, IC-rated body is exactly what Canadian energy codes and cold-climate ceilings ask for, and the -20°C to 40°C operating range handles unheated spaces. Prefer a fixed, non-aimable optic in the same 3.5" square? Look at the 3.5" LUNA LED square recessed fixture RA35S-12F-27K-90BK. Need the same gimbal in another finish? Try the RA35S-12RG-DTW90WH in white or the RA35S-12RG-DTW90BN in brushed nickel. Add it to your cart and give your ceiling the clean, adjustable look it deserves.

Built to last, built to breathe
The LUNA Designer Series starts with a durable airtight aluminum body fitted with an adjustable regressed gimbal. An anodized blue heat sink sits behind the LED module to maximize airflow and keep junction temperatures in check — the real secret behind a projected life of 70% at 50,000 hours. The trim measures 4 3/8" (111mm) square at the ceiling and 3 3/16" (78mm) in depth behind it, with a 3 5/8" (92mm) hole cut, so this square LED pot light drops into tight joist bays, sloped soffits and renovation ceilings without drama. Two spring-loaded clips grip any ceiling material, from drywall to wood plank.

Light quality you can see
Regressing the optic pushes the source up and away from your line of sight, which is what makes this fixture so comfortable to sit under. The 38° beam spread is tight enough to sculpt and wide enough to cover, and the gimbal tilts 40° (20° in each direction) to aim exactly where you want. With a typical CRI of 95+ and a colour selectable switch right on the fixture, you can set 2700 K for a warm living room, 3000 K or 3500 K for kitchens and hallways, 4000 K for a workshop or garage and 5000 K for a commercial back-of-house — five selectable colour temperatures in one SKU, decided on site instead of at the order desk.

Technical specifications
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, Energy Star, Class II
Finish: Black (BK)
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box houses a 12 watt (300mA) dimmable Class II electronic LED driver with 100-135V AC input, and connects to the fixture through an 18" (457mm) FT6 rated cable with a DC 2.1 connector — approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make the line, neutral and ground connections fast, which matters when you are installing twenty recessed downlights in an afternoon. Because the housing is airtight and approved for direct contact with insulation, no separate IC box is required. On dimmers, stay with industry standard forward-phase / reverse-phase TRIAC/ELV models and always test one fixture on the circuit before finishing the whole ceiling.

Applications, options and documentation
Think kitchen islands and perimeter wall-wash, hotel corridors, bathroom and shower ceilings (wet location approved), covered entries and exterior soffits, retail shelving, café counters and clinic waiting rooms. Mix aimable gimbals with fixed trims in the same ceiling for a coherent look: the fixed RA35S-12F-27K-90BK, RA35S-12F-27K-90WH, or the non-DTW gimbal RA35S-12RG-90BK. Accessories such as pre-mounting plates, new construction mounting kits and vapour barrier extenders are sold separately. The full technical PDF (RA35S-12RG-DTW90BK Spec Sheet) is in the Documentation tab with dimensions, the lumen-per-CCT table and the complete ordering guide.

Technical Files
