3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90WH

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90WH
Brand: LITELINE
SKU: RA35S-12RG-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35S-12RG-90WH

Brand: LITELINE

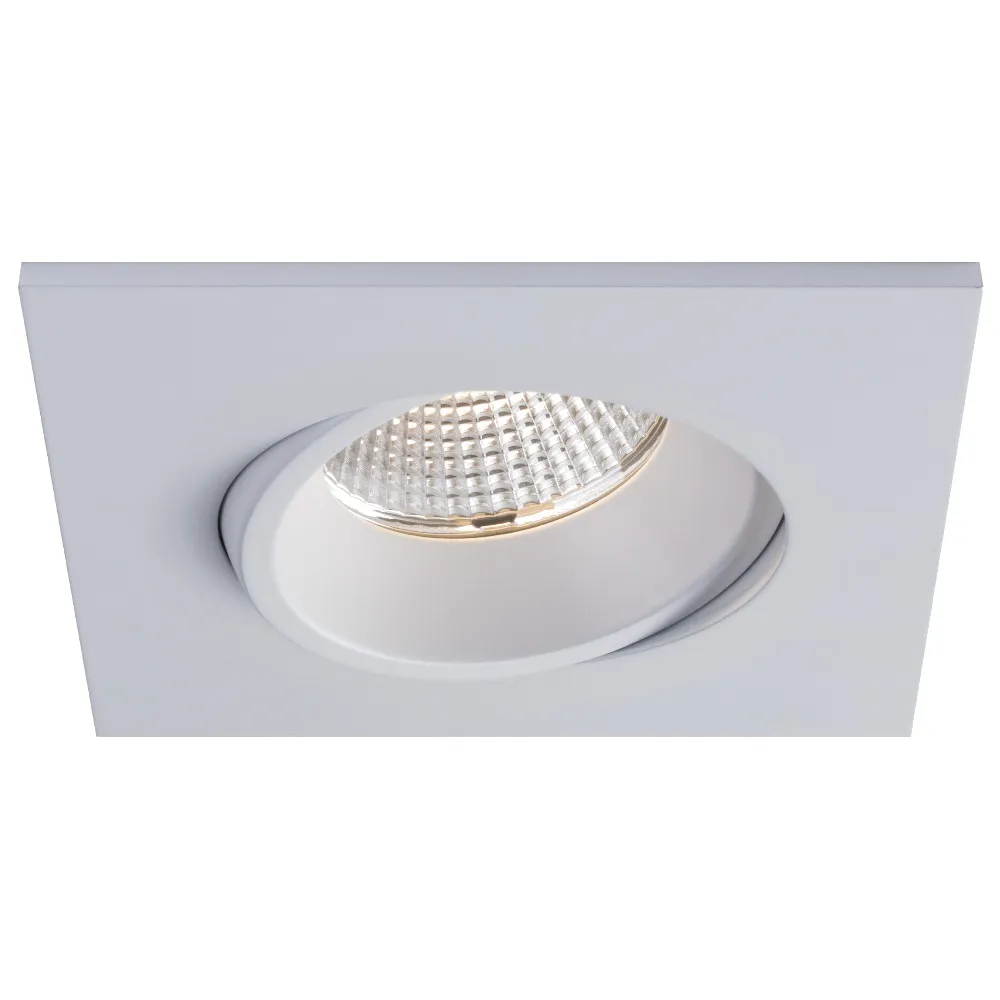

Some pot lights just fill a ceiling with light — this one shapes it. The 3.5" LUNA LED Square Regressed Gimbal Recessed Fixture by LITELINE, model RA35S-12RG-90WH, is a compact square recessed downlight with a tiltable, deep-set gimbal that hides the LED source well inside the housing for a soft, low-glare beam. If you have been searching for square downlights, adjustable pot lights, aimable recessed lighting or a small commercial-grade downlight in a clean white trim, this is the kind of fixture that does the heavy lifting in kitchens, hallways, retail displays and feature walls without stealing the show.

Under that discreet white trim sits a durable airtight aluminum body with an anodized blue heat sink that keeps airflow moving around the LED module. The fixture delivers up to 1160 lumens at 12 watts (up to 102 lumens per watt) with a typical CRI of 95+, so skin tones, wood, paint and merchandise all read true. An on-fixture colour selectable switch lets you pick between five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — right on the job site, and the 38° beam spread plus 40° tilt lets you aim light exactly where it belongs. Runs on 100-135V AC, 50/60 Hz, dims smoothly from 100% to 10% with forward-phase / reverse-phase TRIAC/ELV dimmers, carries a power factor above 0.90, is Energy Star qualified and cETLus certified, suitable for wet locations and approved for direct contact with insulation. Projected life is 70% at 50,000 hours, backed by a lifetime warranty. Hole cut: Ø 3 5/8" (92 mm).

Because it is airtight, wet-location rated and IC-approved, this recessed fixture works just as well over a shower or in a covered porch ceiling as it does in a condo living room, a boutique, a clinic corridor or an office — a real advantage in Canadian builds where insulated, vapour-sealed ceilings are the norm. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make wiring fast. Pair it with the flat-lens version, the 3.5" Luna LED square recessed fixture in white, or match finishes across a project with the black and brushed nickel gimbal versions. Plan your layout and order yours today.

Built to disappear into the ceiling
The LUNA Designer Series was developed around one idea: a flexible, low-glare, good-looking luminaire that contractors, builders, homeowners and designers can all agree on. The RA35S-12RG-90WH uses a durable airtight aluminum body with an adjustable regressed gimbal, plus an anodized blue heat sink that provides maximum airflow for the LED light source — the kind of thermal design that helps an LED hold its output year after year. The square white trim sits tight to the ceiling, while the regressed optic pushes the light source deep inside, so what you see is the light on your surfaces rather than a bright dot in your eyes.

Light quality you can trust
This general application fixture features an LED module that maintains uniform intensity, producing up to 1160 lumens with a typical CRI of 95+. The on-fixture colour selectable switch gives you five white tones — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — meaning one SKU covers a warm residential living room and a crisp commercial back-of-house. Measured output at 12W is 1040 lumens at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K. The lens delivers a 38° beam spread and the gimbal tilts 40° with 20° of visible rotation each way, ideal for grazing a stone wall or highlighting artwork and shelving.

Technical specifications
Model: RA35S-12RG-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CRI: 95+
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60 Hz
Dimming: 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Dimensions: 4 3/8" (111 mm) x 3 3/8" (85 mm) trim, 3 1/16" (78 mm) / 4 3/16" (106 mm) body, 15/16" (34 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, Class II
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Colour: WH (White)

Electrical and installation
The fixture is fed by an extruded aluminum hardwire box housing a 12 watt (300 mA) dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, so you can tuck the box neatly above a T-bar grid. Three quick-connect push-in terminals speed up wiring, and two spring-loaded clips attach the housing to any ceiling material — drywall, plaster or panel. Because the body is airtight and approved for direct contact with insulation, it can go straight into an insulated attic ceiling; accessories such as vapour barrier extenders, pre-mounting plates and new construction mounting kits exist for these 3 1/2" LUNA LED fixtures and are sold separately. Dimming runs 100% to 10% on industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers.

Where it works and what to read
Think kitchens and islands, bathrooms and showers (wet location rated), hallways, staircases, basements with limited plenum depth, covered exterior soffits, plus retail shops, salons, clinics, restaurants and offices where a 95+ CRI and an aimable beam make merchandise and finishes look their best. Mixing flat and gimbal versions on the same ceiling keeps a consistent aperture: use the 3.5" Luna LED square recessed fixture for general wash and this regressed gimbal for accents, or specify black or brushed nickel trims for darker ceilings. The full technical PDF spec sheet for RA35S-12RG-90WH is available in the Documentation tab for your plans, submittals and inspections.
