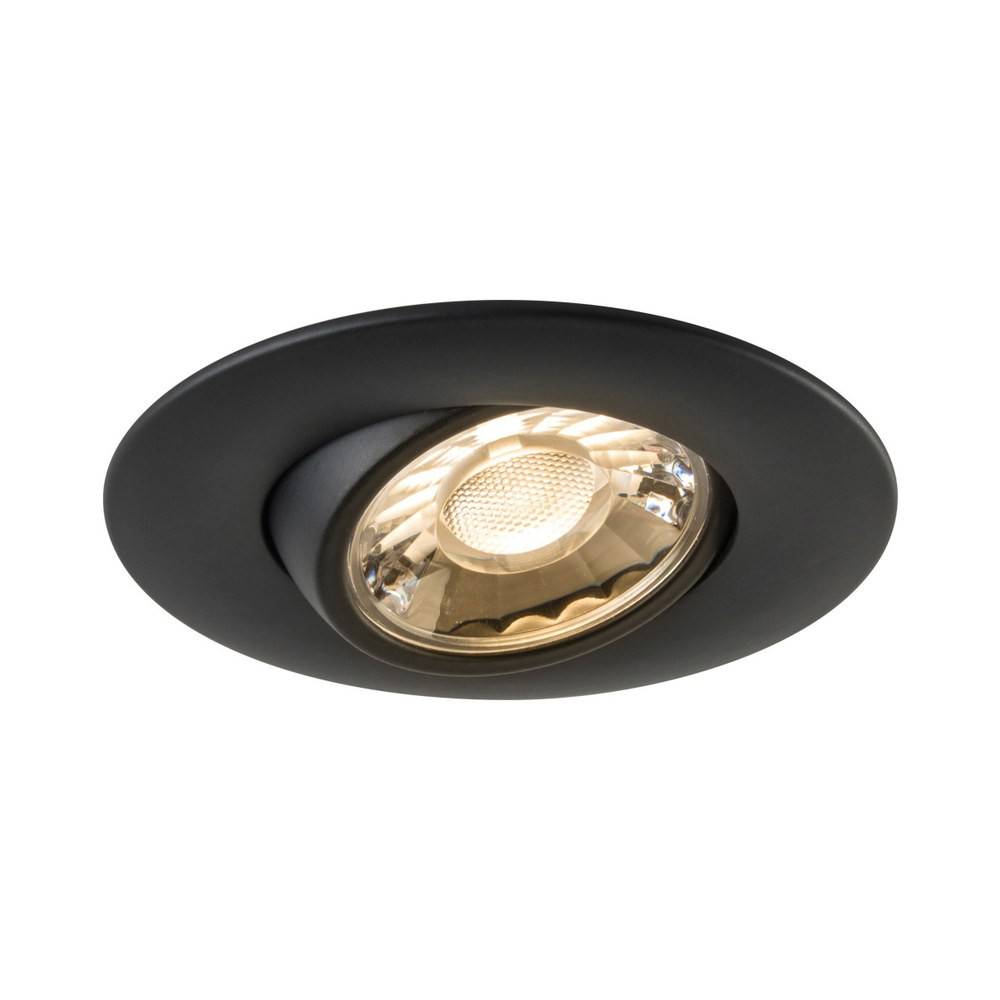

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-DTW-90BK
Brand: LITELINE
SKU: RA3-7G-DTW-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA3-7G-DTW-90BK

Brand: LITELINE

Small aperture, big personality: the 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BK is the aimable little downlight that finally lets you point light exactly where you want it. Known on job sites as a 3 inch gimbal pot light, an adjustable recessed downlight or simply a directional LED pot light, this Liteline LUNA is built for retrofit work: no housing to buy, no can to wrestle into a joist bay, just a compact airtight body that drops into a round hole and locks in place. Its dim-to-warm engine makes it a favourite for living rooms, bedrooms, hallways, kitchens, condos, boutiques, restaurants and hospitality projects where the mood needs to shift from bright and functional to soft and golden as the evening goes on. The black trim finish keeps the ceiling clean and discreet, letting the beam do the talking instead of the fixture.

Behind that small face sits real performance: a 7 watt LED module delivering up to 745 lumens at 96 lumens per watt, with a typical CRI of 90 so skin tones, wood, paint and fabrics look the way they should. Colour temperature dims from 3000 K down to 1800 K, following the warm glow of an incandescent as you lower the dimmer, and the fixture works with industry standard TRIAC/ELV dimmers. The durable aluminum body includes an anodized blue heat sink for maximum airflow, an adjustable gimbal with 30° of tilt, and a lens producing a 45° beam spread. Input is 100-135V AC, 50/60Hz through a 170mA dimmable Class II electronic driver, power factor 0.95, with a projected life of 70% at 33,000 hrs, cETLus certification, LM79 and LM80 data, and a lifetime warranty. It is suitable for wet locations, approved for direct contact with insulation, and fits a Ø 2 3/4" (70 mm) hole cut.

Use it over a kitchen island, along a hallway, in a sloped ceiling, in a covered porch or a bathroom thanks to the wet location rating — a real advantage in Canadian homes where showers, entryways and exterior soffits all need reliable light. Contractors love the two spring loaded clips and the three quick connect push-in terminals for fast wiring, plus the 18" FT6 rated cable with DC 2.1 connector approved for plenums and suspended ceilings. Prefer another finish? The same fixture is offered as 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BN in brushed nickel and 3" LUNA gimbal recessed fixture RA3-7G-DTW-90WH in white. Order your RA3-7G-DTW-90BK and aim your light with confidence.

Built to last, built to install fast
The LUNA RA3-7G-DTW-90BK uses a durable airtight aluminum body with an adjustable gimbal, so you can tilt the beam 30° toward a feature wall, a painting, a backsplash or a fireplace. An anodized blue heat sink sits behind the LED to maximize airflow and keep the light source cool, which is exactly what protects colour consistency and lifespan over the years. Two spring loaded clips let the fixture attach to any ceiling material, and the compact format slips into a Ø 2 3/4" (70 mm) hole cut, making this a clean choice for retrofit and renovation work where opening the ceiling is not an option.

Light quality and dim-to-warm
This is a dim-to-warm recessed light: the colour temperature travels from 3000 K down to 1800 K as you lower the dimmer, reproducing the cozy amber glow people associate with incandescent and halogen lamps. With a typical CRI of 90, colours stay rich and natural, an important detail in kitchens, dining rooms, retail displays and restaurants. The lens delivers a 45° beam spread, wide enough for general ambient coverage yet controlled enough for accenting when the gimbal is aimed. Output reaches up to 745 lumens from only 7 watts, so a row of these small apertures replaces bulky, power-hungry fixtures while using a fraction of the energy of halogen.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K~1800 K
Certification: cETLus
Class II: Yes
Colour: BK
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2 3/4" (70 mm)
Input: 100-135V AC, 50/60Hz
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 7W
Operating Temperature: -40°C+40°C (-40°F+104°F)

Electrical, dimming and compatibility
Power comes from an extruded aluminum hardwire box housing a 170mA dimmable Class II electronic LED driver with 100-135V AC input and a power factor of 0.95. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, while three quick connect push-in terminals make wiring quick and tidy. The fixture is compatible with industry standard TRIAC/ELV dimmers; pairing it with a quality dimmer is what unlocks the full dim-to-warm curve down to 1800 K. Accessories listed for this family — the SLM-60-FC 60" flexible connector, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders — are sold separately and cover new construction, remodel and vapour barrier situations.

Where it works and what to read next
Because it is suitable for wet locations and approved for direct contact with insulation, this gimbal pot light handles bathrooms, showers, covered patios and insulated ceilings as easily as a hallway or a walk-in closet. Designers use it in condo corridors, boutique change rooms, café seating areas and hotel suites; homeowners line it along kitchen cabinetry or angle it at a stone wall. If your project calls for a single fixed colour temperature instead of dim-to-warm, look at the matching 3" LUNA gimbal recessed fixture RA3-7G-30K-90BK, and for other trim finishes see the white RA3-7G-DTW-90WH or the brushed nickel RA3-7G-DTW-90BN. The full technical PDF spec sheet for RA3-7G-DTW-90BK is available in the Documentation tab with dimensions, photometrics and mounting details for your submittal package.
