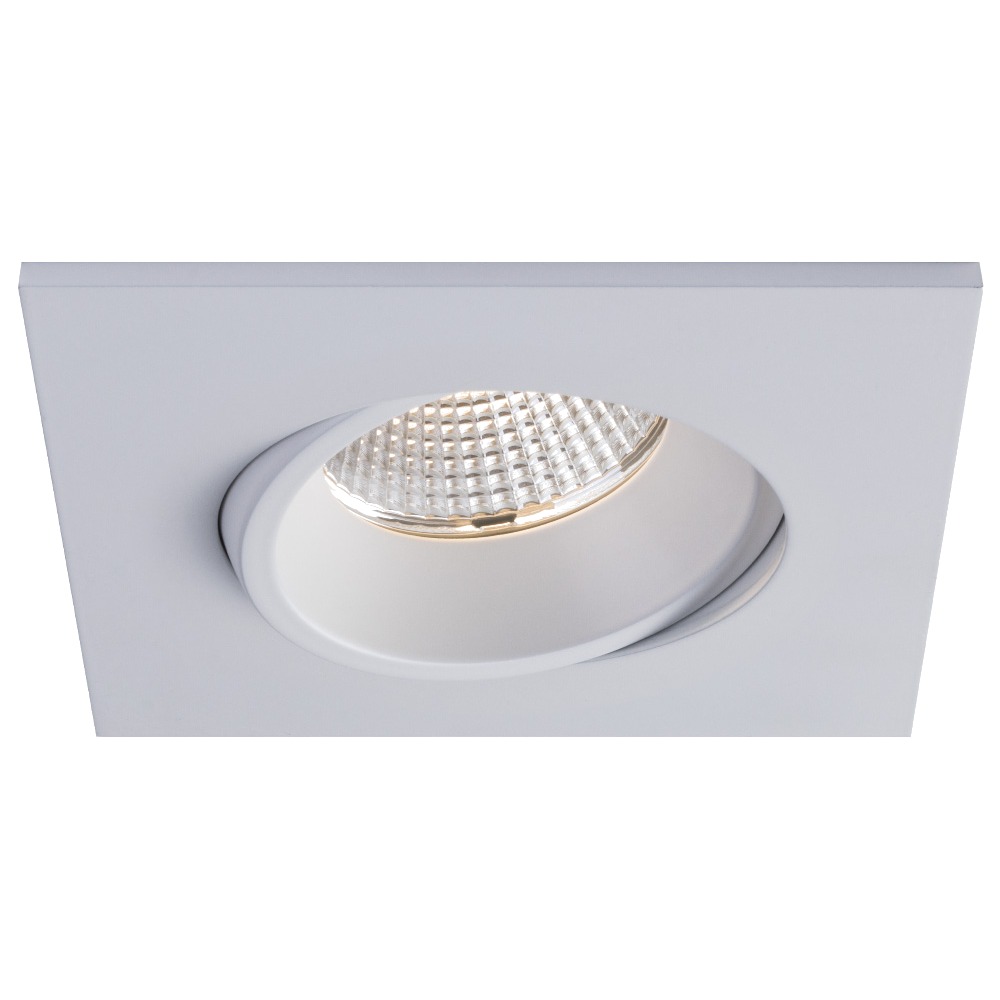

3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90WH

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90WH
Brand: LITELINE
SKU: RA35S-12RG-DTW90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35S-12RG-DTW90WH

Brand: LITELINE

Small aperture, big personality: the 3.5" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA35S-12RG-DTW90WH) by LITELINE is the little square pot light that finally lets you aim your light exactly where you want it. People look for it as a square downlight, an adjustable recessed downlight, a gimbal pot light or simply a directional LED downlight — it's all the same idea: a deep-set, low-glare optic mounted in a tilting gimbal, wrapped in a crisp white square trim. Use it to wash a stone fireplace, graze a feature wall, pick out artwork, light a kitchen island from an angled ceiling, or build a clean grid of accent lighting through a condo, a boutique or a showroom.

Under the trim, this is a serious little performer. The 12 watt LED module delivers up to 1160 lumens at up to 102 lumens per watt, with a typical CRI of 95+ so wood tones, paint colours, food and fabrics look true. An on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so you can fine-tune warmth room by room without reordering (1040 lumens at 2700 K, 1090 at 3000 K, 1135 at 3500 K, 1160 at 4000 K and 1145 at 5000 K). The 38° beam spread and 40° tilt keep the light tight and intentional, while dimming runs smoothly from 100% down to 10% on standard forward-phase / reverse-phase TRIAC/ELV dimmers. The airtight aluminum body with anodized blue heat sink is cETLus certified, ENERGY STAR qualified, suitable for wet locations, approved for direct contact with insulation, rated 70% at 50,000 hours, and backed by a lifetime warranty. Hole cut: Ø 3 5/8" (92 mm).

It's a natural fit for living rooms, hallways, bedrooms, kitchens, finished basements, covered porches and — thanks to the wet location rating — showers and tub areas, plus retail, offices, hotels and restaurants. Canadian builders will appreciate the airtight, insulation-contact construction for tight envelopes and attic-adjacent ceilings. Want the same square LUNA look without the tilt? See the 3.5" LUNA LED square recessed fixture in white, or match the gimbal version in black or brushed nickel. Aim it, dim it, love it — add it to your project today.

Built to last, built to aim
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and this square gimbal version shows exactly why. The housing is a durable airtight aluminum body with an adjustable regressed gimbal that tilts up to 40°, so you can point the beam at a wall, a countertop or a piece of art long after the drywall is closed. An anodized blue heat sink sits behind the LED module to maximize airflow and keep the light source cool, which is what protects colour consistency and lifespan over the years. The white square trim measures 4 3/8" (111 mm) across with a 3 3/8" (85 mm) inner square, stands 4 3/16" (106 mm) deep, and drops into a Ø 3 5/8" (92 mm) hole cut.

Light quality you can actually see
This general application fixture uses an LED module that maintains uniform intensity, producing up to 1160 lumens with a typical CRI of 95+ — the kind of colour rendering that makes white cabinetry read white and skin tones look healthy. The on-fixture colour selectable switch offers five CCT settings (2700 K, 3000 K, 3500 K, 4000 K, 5000 K), letting one SKU cover a warm living room and a crisp workspace. Lumen output by setting: 1040 lm at 2700 K, 1090 lm at 3000 K, 1135 lm at 3500 K, 1160 lm at 4000 K and 1145 lm at 5000 K. The lens delivers a controlled 38° beam spread, and the regressed optic pushes the source deep into the trim to cut glare in sightlines.

Driver, wiring and dimming
Power comes from an extruded aluminum hardwire box housing a 12 watt (300 mA) dimmable Class II electronic LED driver with 100-135V AC, 50/60 Hz input and a power factor greater than 0.90. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast on site. Dimming runs from 100% to 10% and is compatible with industry standard forward-phase / reverse-phase TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Two spring loaded clips let the fixture attach to virtually any ceiling material, and the unit operates from -20°C to 40°C (-4°F to 104°F).

Technical specifications
SKU: RA35S-12RG-DTW90WH
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: Up to 1160
Efficacy: Up to 102 lumens per watt
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K, selectable
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60 Hz
Power factor: >0.90
Dimming: 100%-10%, forward/reverse-phase TRIAC/ELV
Hole cut: Ø 3 5/8" (92 mm)
Colour: White
Certification: cETLus, ENERGY STAR
Class II: Yes
Operating temperature: -20°C~40°C
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Where it works, and what pairs with it
Because it is airtight, wet location rated and approved for direct contact with insulation, this square LED pot light handles the ceilings Canadian homes are actually built with: insulated attics, sloped ceilings, covered entries, bathrooms and shower zones. On the commercial side, it's a smart pick for boutiques, restaurants, dental and medical offices, hotel corridors and office lobbies where a small aperture and high CRI matter. Accessories such as pre-mounting plates, new construction plates, mounting kits and vapour barrier extenders are sold separately — a common request in searches for recessed lighting vapour barrier solutions. For consistent design across a whole floor, mix this gimbal with the fixed square LUNA in white, black or brushed nickel, or with the single-CCT regressed gimbal version. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit package.
