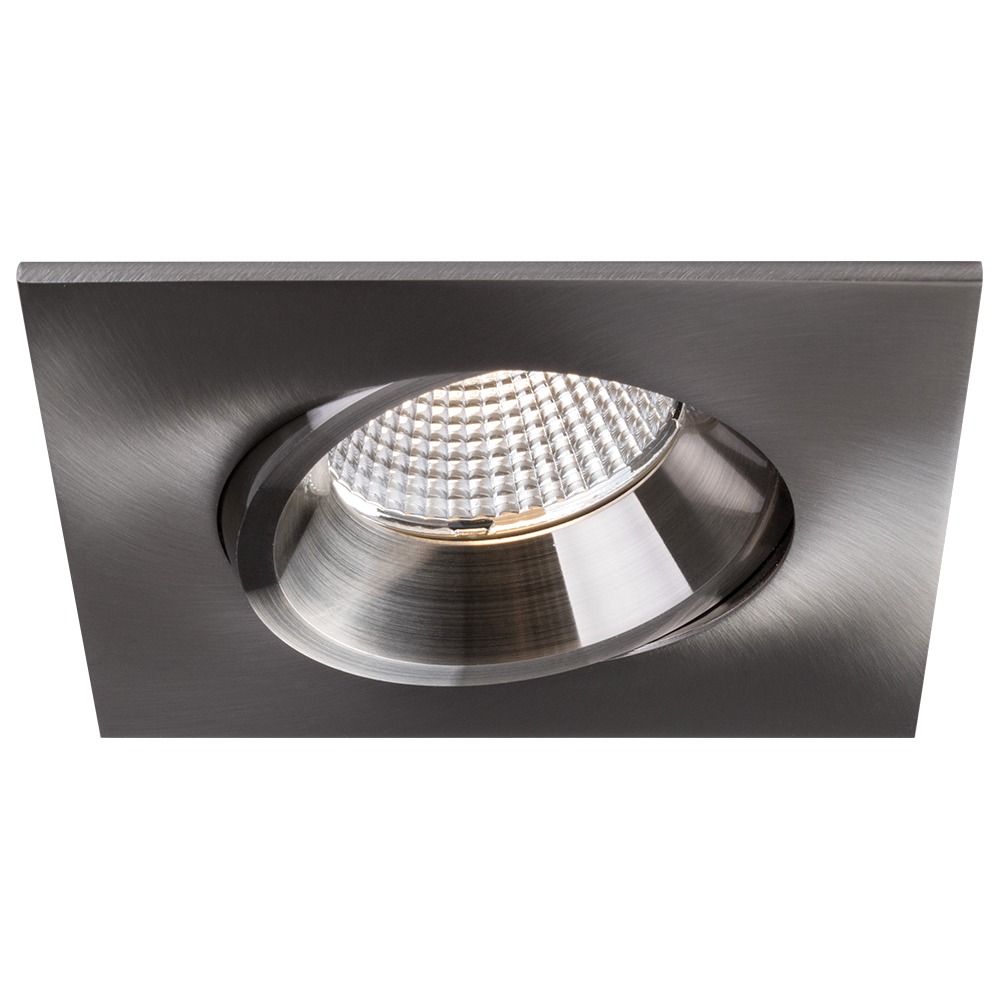

3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90BN

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-DTW90BN
Brand: LITELINE
SKU: RA35S-12RG-DTW90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA35S-12RG-DTW90BN

Brand: LITELINE

Say goodbye to flat, glary ceilings. The 3.5" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA35S-12RG-DTW90BN) from LITELINE is the little square downlight that does the work of a much bigger fixture: a deep-set, tiltable optic hidden inside a crisp square trim in a Brushed Nickel finish. People look for it as a square pot light, a recessed gimbal downlight, an adjustable recessed light or simply a directional LED downlight — it's all the same idea: light you can aim exactly where you want it, without a bright hot spot staring back at you.

Part of the LUNA Designer Series, this ceiling recess mount fixture delivers up to 1160 lumens from just 12 watts, for an efficacy of up to 102 lumens per watt, and a typical CRI of 95+ so wood, paint, skin tones and merchandise look the way they should. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — with rated output of 1040 lm at 2700 K, 1090 lm at 3000 K, 1135 lm at 3500 K, 1160 lm at 4000 K and 1145 lm at 5000 K. The 38° beam spread and 40° tilt let you wall-wash or accent at will. Inside: a durable airtight aluminum body with an anodized blue heat sink, a 12 watt (300 mA) dimmable Class II electronic driver, 100-135V AC 50/60Hz input, power factor above 0.90, smooth 100%-10% dimming on forward/reverse-phase TRIAC/ELV dimmers, cETLus certified, Energy Star, suitable for wet locations and approved for direct contact with insulation, rated 70% at 50,000 hours and backed by a lifetime warranty.

It's a natural for kitchens, hallways, bedrooms, sloped ceilings, bathrooms and covered porches, retail displays, clinics, offices and hospitality — anywhere a Canadian renovation calls for tidy, low-glare recessed lighting that stands up to insulated attics and cold weather (operating range -20 °C to 40 °C). Hole cut is Ø 3 5/8" (92 mm), so it drops into the same opening as the rest of the family, including the 3.5" LUNA square regressed gimbal fixture RA35S-12RG-90BN and the fixed-optic 3.5" LUNA square recessed fixture RA35S-12F-27K-90BN. Mix aimable and fixed heads on the same ceiling and order yours today.

Built to disappear into the ceiling
The LUNA 3.5" square regressed gimbal is built around a durable airtight aluminum body with an adjustable regressed gimbal, plus an anodized blue heat sink that keeps airflow — and LED life — at its best. Recessing the optic behind the square trim is what kills the glare: you see the effect of the light, not the source. The gimbal tilts up to 40° so you can graze a stone feature wall, pull art out of the shadows or angle light away from a TV screen. Overall dimensions are 4 3/8" (111 mm) and 3 3/8" (85 mm) across the trim, with a 1 5/16" (34 mm) profile and an aperture assembly measuring 3 1/16" (78 mm) by 4 3/16" (106 mm). The Brushed Nickel trim of this RA35S-12RG-DTW90BN is one of four finishes offered in the series (BK / BN / OB / WH).

Light quality you can actually see
With a typical CRI of 95+, this is the kind of colour selectable downlight you want over a kitchen island, a vanity or a retail counter, where dull, washed-out colour is instantly obvious. The on-fixture switch steps through 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — five selectable colour temperatures — so one box covers warm residential rooms and crisp commercial spaces alike, and lets you correct the ambience after drywall is up. The 38° beam spread is a true general-purpose distribution: tight enough to feel directional, wide enough to space out on a normal 8-foot ceiling.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20 °C~40 °C (-4 °F~104 °F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, Energy Star, Class II
Colour: Brushed Nickel
Warranty: Lifetime

Wiring and installation
Two spring-loaded clips hold the fixture to any ceiling material, so remodel work goes fast: cut the 92 mm hole, wire the box, push the housing up. The extruded aluminum hardwire box carries a 12 watt (300 mA) dimmable Class II electronic LED driver with three quick connect push-in terminals for fast wiring, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector between driver and fixture — approved for use in plenums and suspended ceilings. Because the unit is airtight, wet location rated and approved for direct contact with insulation, it suits insulated attics, bathrooms and covered exterior ceilings; vapour barrier extenders and new construction mounting hardware are listed as accessories and are sold separately. Always confirm your dimmer against the manufacturer's compatible dimmer list before final commissioning.

Where it works and what to pair it with
Think open-concept kitchens and hallways, stairwells, sloped ceilings where a fixed downlight would spill sideways, hotel corridors, boutiques, dental and medical clinics, offices and restaurant seating. On a job, most designers alternate aimable and fixed heads: pair this one with the 3.5" LUNA square regressed gimbal RA35S-12RG-90BN, choose a darker trim like the 3.5" LUNA square regressed gimbal RA35S-12RG-DTW90BK or a white one with the 3.5" LUNA square regressed gimbal RA35S-12RG-DTW90WH, and fill general areas with the fixed 3.5" LUNA square recessed fixture RA35S-12F-27K-90WH. The complete technical PDF spec sheet for RA35S-12RG-DTW90BN is in the Documentation tab, with dimensions, lumen table per CCT and the full ordering guide.
