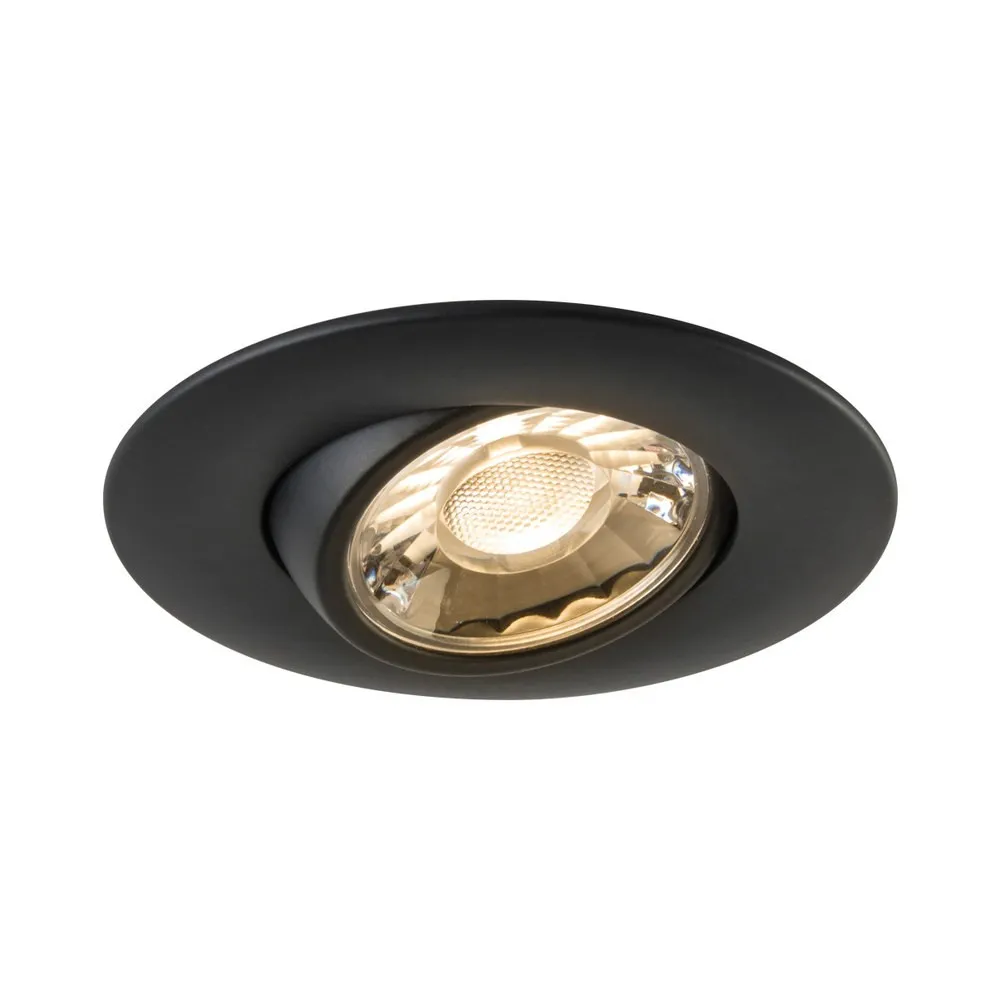

3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90BK

Name: 3" LUNA GIMBAL RECESSED FIXTURE - RA3-7G-50K-90BK
Brand: LITELINE
SKU: RA3-7G-50K-90BK
Price: 70.97 CAD
Availability: InStock

SKU: RA3-7G-50K-90BK

Brand: LITELINE

Small aperture, big impact: the 3" LUNA gimbal recessed fixture from LITELINE (SKU RA3-7G-50K-90BK) is the kind of little downlight that quietly makes a whole room look designed. People call it a 3 inch pot light, a mini recessed downlight, an adjustable LED gimbal or simply a directional spot — whatever you call it, it is a complete, easy-to-install LED luminaire with an integrated driver, built for retrofit and new work alike. Because the trim tilts, you can aim the beam exactly where it belongs: down a stone feature wall, across a row of kitchen cabinets, onto artwork, or straight down as clean general lighting. Its black finish disappears into the ceiling plane, which is exactly what designers want when they don't want to see the fixture at all — just the light.

This model delivers up to 745 lumens from only 7 watts, an efficiency of 96 lumens per watt, so you get real downlight output while sipping energy compared to old halogen cans. The LED module holds a typical CRI of 90, so wood, paint, skin tones and merchandise look true instead of washed out. Light leaves through a lens that shapes a tight, controlled 45° beam angle, and the fixture is fully dimmable on industry-standard TRIAC/ELV dimmers through its 170 mA class II electronic driver with 100-135V AC, 50/60 Hz input. The airtight aluminum body carries an anodized blue heat sink for maximum airflow around the LED, power factor is 0.95, and projected life is 70% at 33,000 hours. It is cETLus certified, approved for wet locations and for direct contact with insulation, rated from -40°C to +40°C, and backed by a Lifetime warranty.

Put it to work in kitchens, hallways, bedrooms, basements, closets, stairwells, covered porches and soffits, and in bathrooms and showers where a wet location rated pot light is required. Contractors love it for condo remodels, retail boutiques, cafés, offices and clinics where a 3-inch aperture keeps the ceiling clean. It cuts into a Ø 2 3/4" (70 mm) hole and clips in with two spring-loaded clips, so it goes into almost any ceiling material fast. Prefer a different look or colour? The same LUNA gimbal is offered in other finishes and colour temperatures, including 3" LUNA gimbal recessed fixture RA3-7G-30K-90BK and 3" LUNA gimbal recessed fixture RA3-7G-27K-90WH. Plan your layout and light your project right.

Built to last, built to disappear
The LUNA 3" gimbal is made around a durable airtight aluminum body with an adjustable gimbal, so the light aims where you need it while the housing stays sealed against the ceiling cavity. Inside, an anodized blue heat sink keeps airflow moving around the LED light source, which is what protects output and colour over the long haul. Two spring-loaded clips hold the fixture in the ceiling and let it attach to virtually any ceiling material, from drywall to plywood soffits. The black trim finish is part of the BK / BN / WH family, and it is the choice most installers make when they want the aperture to visually vanish in a dark or high ceiling.

Light quality you can see
A 7 watt LED module produces up to 745 lumens with uniform intensity — no hot spots, no patchy scallops — at a typical CRI of 90. That high colour rendering matters in kitchens where food has to look appetizing, in bathrooms where make-up and grooming need honest light, and in retail where fabric and finishes have to sell themselves. The fixture lens provides a 45° beam spread, a well-controlled cone that layers nicely when the fixtures are spaced in a row, and the gimbal tilts to aim that cone at a wall, a backsplash or a display shelf.

Electrical, dimming and installation
Power comes from an extruded aluminum hardwire box housing a 170 mA dimmable class II electronic LED driver with 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings, and three Quick Connect push-in terminals make wiring fast — a real time saver when you're installing a whole floor of downlights. The fixture is dimmable with industry-standard TRIAC/ELV dimmers; for the compatible dimmer list, consult liteline.com/lunadimmers. Cut a Ø 2 3/4" (70 mm) hole, tuck the driver box into the cavity, push the clips in and you're done. Approved for direct contact with insulation and suitable for wet locations, it works in insulated ceilings and in exterior soffits through Canadian winters, with an operating range of -40°C to +40°C (-40°F to +104°F).

Technical specifications
SKU: RA3-7G-50K-90BK
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
Certification: cETLus
Class II: Yes
Colour: Black
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 2 3/4" (70 mm)
Input: 100-135V AC, 50/60Hz
LM79 / LM80: Yes
Lumens: 745
Lumens per Watt: 96
Power Factor: 0.95
Projected Life: 70% @ 33,000 hrs
Wattage: 7W
Warranty: Lifetime

Accessories, matching fixtures and documentation
Liteline lists accessories sold separately for this platform: the SLM-60-FC 60" flexible connector for SlimLED and LUNA fixtures, the P-2810 2 3/4" round pre-mounting plate with driver attachment clip for 3" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1, VBE-2 and VBE-5 vapour barrier extenders for new construction and remodel applications — the answer to every "recessed lighting vapor barrier" question in cold-climate builds. Smart control is available through the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer, 120V, and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-Way Switch, both compatible with the WiZ App. To mix finishes or warmer tones on the same project, see the 3" LUNA gimbal recessed fixture RA3-7G-27K-90BK, the 3" LUNA gimbal recessed fixture RA3-7G-30K-90BN or the dim-to-warm 3" LUNA gimbal recessed fixture RA3-7G-DTW-90BK. The full technical PDF spec sheet is in the Documentation tab for your submittals and permit package.
