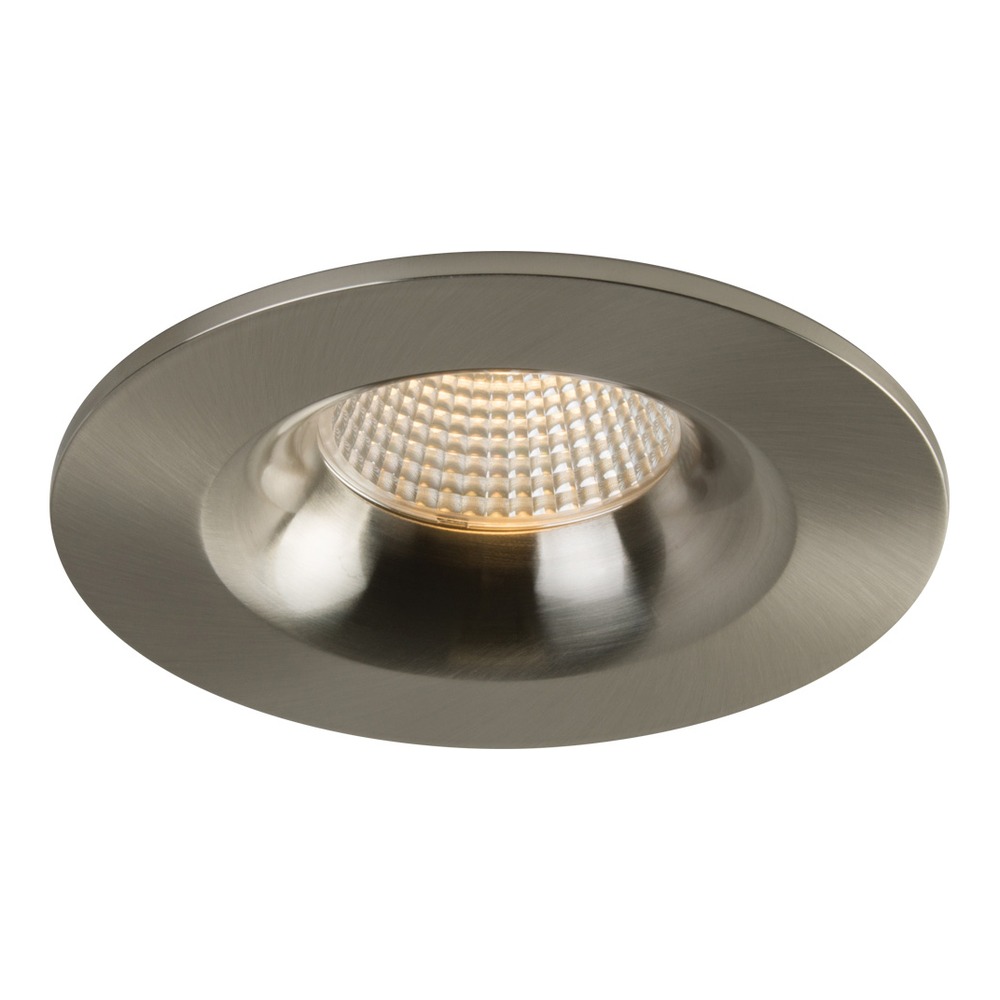

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-90BN
Brand: LITELINE
SKU: RA35-12F-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA35-12F-90BN

Brand: LITELINE

Give any room that warm, candle-like glow as you dim the lights: the 3.5" LUNA LED round recessed fixture RA35-12F-90BN by LITELINE is a compact dim-to-warm downlight built for people who want small aperture, big character. Call it a pot light, a recessed LED downlight or simply a round ceiling light — it is the fixture you install in kitchens, hallways, bedrooms, living rooms, condo entries, boutiques and restaurant dining rooms when you want clean ceilings and a light you can actually feel good under. The brushed nickel trim adds a soft metallic finish that blends with modern hardware and stainless appliances, and the fixed round trim keeps the look tidy from one end of the room to the other.

Under the trim, a 12 watt LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain and paint colours look true. The colour temperature shifts from 3000 K to 2000 K as you dim, mimicking the cozy warm-up of incandescent light, and the fixture is dimmable with industry standard TRIAC/ELV dimmers. A 38° beam spread gives controlled, uniform light, and the airtight aluminum body with anodized blue heat sink keeps the LED cool. It runs on 100-135V AC, 50/60Hz through a 300mA dimmable Class II electronic driver in an extruded aluminum hardwire box, with an 18" FT6 rated cable and DC 2.1 connector. Cut hole is Ø 3 5/8" (92mm). Rated for wet locations, approved for direct contact with insulation, cETLus certified, LM79 and LM80 tested, with a projected life of 70% at 33,000 hrs and a lifetime warranty.

This little downlight shines over kitchen islands and counters, along hallways, in bathrooms and covered porches thanks to its wet location rating, and in retail or hospitality spaces where colour quality sells the product. Canadian winters are no problem: it operates from -20°C to 40°C and sits safely in insulated ceilings. Two spring loaded clips grip any ceiling material and three quick connect push-in terminals make wiring fast. Matching finishes are available, including the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90WH and the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BK. Order your RA35-12F-90BN and light your project the warm way.

Built to last, built to disappear into the ceiling
The LUNA 3.5" round fixed fixture uses a durable airtight aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — the detail that keeps light output stable year after year. The trim is fixed and round, finished here in brushed nickel, with an overall profile of 4 3/8" (111mm) diameter and 3 3/8" (85mm) height, a 4 3/16" (106mm) trim face and a 15/16" (34mm) trim depth. Because it is airtight and approved for direct contact with insulation, it belongs in sealed ceilings where you do not want conditioned air leaking into the attic.

Light quality and dim-to-warm
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, which is what makes food, textiles and finishes look natural instead of washed out. The lens creates a 38° beam spread, tight enough to shape light on a counter or a hallway runner, wide enough for general ambient lighting when the fixtures are spaced in a row. As you dim, the colour temperature travels from 3000 K down to 2000 K, so evening light in a dining room or bedroom becomes genuinely relaxing rather than just dimmer.

Electrical and installation
Power comes from a 300mA dimmable Class II electronic LED driver housed in an extruded aluminum hardwire box, with 100-135V AC input and three quick connect push-in terminals for fast, tool-friendly wiring. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Two spring loaded clips attach the housing to any ceiling material through a Ø 3 5/8" (92mm) hole cut. Pair it with standard TRIAC/ELV dimmers for smooth control; power factor is greater than 0.90 and the operating range is -20°C to 40°C (-4°F to 104°F).

Technical specifications
Model: RA35-12F-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming Tech: TRIAC/ELV
Hole Cut: Ø 3 5/8" (92mm)
Power Factor: >0.90
Projected Life: 70% @ 33,000 hrs
Certification: cETLus
Class II: Yes
LM79 / LM80: Yes
Warranty: Lifetime

Applications, accessories and documentation
Think of rows of these recessed LED downlights over a kitchen island, in a basement renovation, in a hotel corridor or a clinic waiting room, or in a covered entryway where the wet location rating earns its keep. Accessories are sold separately: the P-3520 round pre-mounting plate and the P-3520NC new construction plate with driver attachment clip are made for 3½" LUNA LED fixtures, the RA35-XLRING-BN reducer ring matches the brushed nickel finish, the P-NCMK-1 new construction mounting kit adds hanger bars and brackets, and VBE-1 through VBE-4 vapour barrier extenders cover new construction and remodel work. For a full ceiling in one finish family, see the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BN or fixed colour versions such as the 3.5" Luna LED round recessed fixture RA35-12F-27K-90BN and the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN. The complete technical PDF spec sheet is in the Documentation tab.
