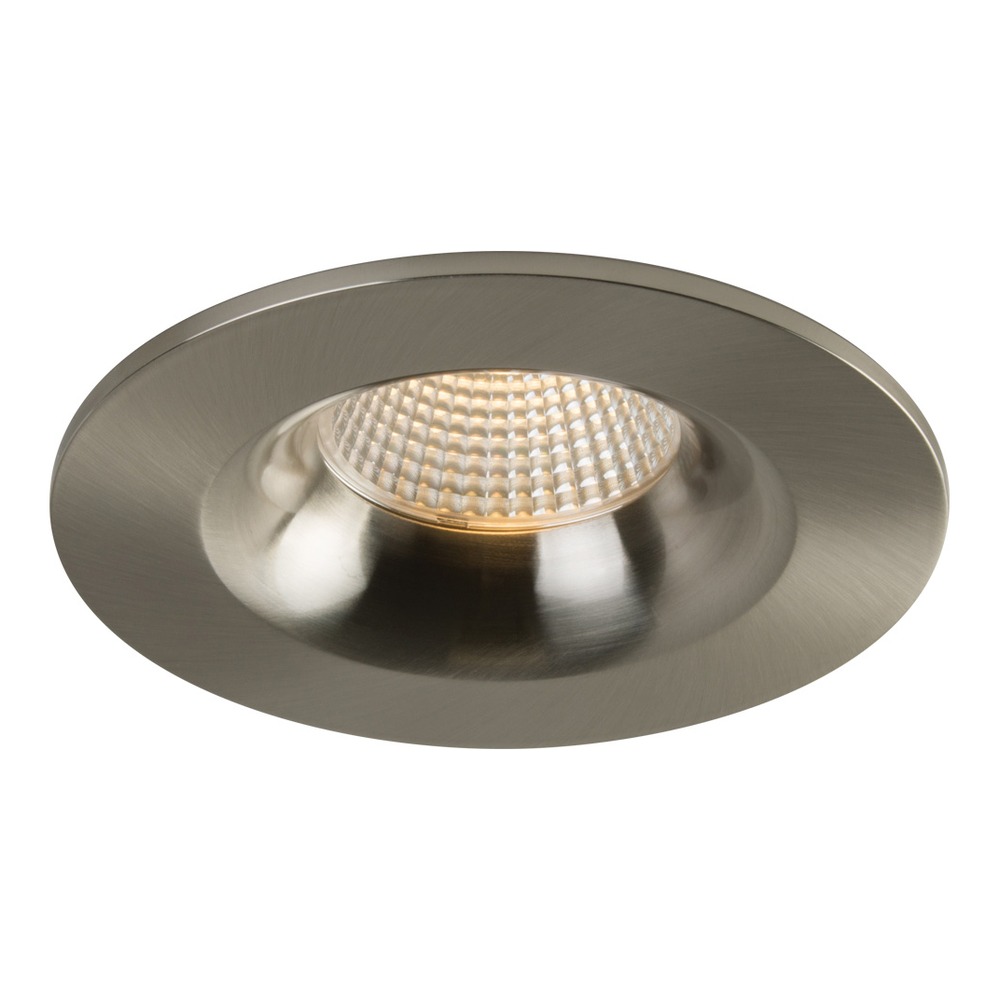

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90BN
Brand: LITELINE
SKU: RA35-12F-30K-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA35-12F-30K-90BN

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE (SKU RA35-12F-30K-90BN) gives you a clean, discreet ceiling opening and a warm, flattering pool of light. Call it a pot light, a round LED downlight, a recessed can or simply a ceiling light — this is the compact fixed downlight contractors reach for when they want rows of perfectly aligned round LED lights in a hallway, a kitchen island, a living room or a retail display. The brushed nickel trim keeps it quietly modern, and because it's an all-in-one LED module with its own remote driver box, there's no bulb to buy, no trim to guess at and no socket to fail.

Inside the durable airtight fixed aluminum body sits a 12 W LED module delivering up to 600 lumens at 57 lumens per watt, with an anodized blue heat sink keeping airflow — and lifespan — where it belongs. Light quality is the real story here: a typical CRI of 90 and a 3000 K colour temperature that dims all the way down to 2000 K, so wood, skin tones and finishes look right at full output and get cozier as you dial back. The 38° beam spread is focused without being harsh, dimming runs on industry-standard TRIAC/ELV dimmers, and the 300 mA class II electronic driver accepts 100-135 V AC, 50/60 Hz with a power factor above 0.90. It's cETLus certified, rated for wet locations, approved for direct contact with insulation, projected at 70% output after 33,000 hours and backed by a lifetime warranty.

This little downlight earns its keep in kitchens, bathrooms, entryways, covered porches, basements, condos, boutiques, clinics and offices — anywhere a 3 5/8" (92 mm) hole cut and an operating range of -20°C to 40°C matter in a Canadian build. Want the same fixture in another finish or colour temperature? See the 3.5" Luna LED round recessed fixture RA35-12F-30K-90WH in white, or step into a different look with the RA35-12F-27K-90BN and RA35-12F-40K-90BN. Plan your ceiling layout and order the quantity your project needs.

Built to disappear into the ceiling
The LUNA 3.5" round fixed downlight is built around a durable airtight fixed aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — the single best predictor of how long an integrated LED recessed light will hold its output. The fixture measures 4 3/8" (111 mm) across the trim with a 3 3/8" (85 mm) body, a 3 1/16" (78 mm) depth and a 4 3/16" (106 mm) span at the clips, and it drops into a Ø 3 5/8" (92 mm) hole cut. Two spring loaded clips attach it to any ceiling material, which is what makes it such a fast retrofit in existing drywall, plaster or panelled ceilings. This SKU ships with the brushed nickel (BN) trim finish.

Light quality and dim-to-warm control
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, so colours, cabinetry and merchandise read true instead of washed out. The lens delivers a 38° beam spread — tight enough to layer nicely over a counter or a hallway, wide enough to light a room when spaced properly. Colour temperature starts at 3000 K and warms to 2000 K as you dim, mimicking the glow of an incandescent as the evening goes on. Dimming is handled by industry-standard TRIAC/ELV dimmers; Liteline publishes its compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
Model: RA35-12F-30K-90BN
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming tech: TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5/8" (92mm)
Class II: Yes
LM79 / LM80: Yes
Projected life: 70% @ 33,000 hrs
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus
Warranty: Lifetime

Wiring and installation
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable class II electronic LED driver with 100-135 V AC input. Three "Quick connect" push-in terminals make wiring fast — no wire nuts, no fumbling above your head — and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture, approved for use in plenums and suspended ceilings. The fixture is suitable for wet locations and approved for direct contact with insulation, so it can go in an insulated attic ceiling, under a soffit or in a shower area without a separate housing. Accessories are sold separately, including the P-3520 round pre-mounting plate and the P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the VBE-1 to VBE-4 vapour barrier extenders, the RA35-XLRING-BN brushed nickel reducer ring, the SLM-60-FC flexible connector and the LC-CRTL-DIM-1 smart Wi-Fi dimmer.

Where it works, and what's on the page
Think kitchen downlights over an island, a run of dimmable LED downlights down a hallway, bathroom and ensuite ceilings, covered entries and porches, basement renos, condo corridors, dental clinics, salons, boutiques and small offices. Because the same 3½" platform is offered in several finishes and colour temperatures, you can keep one aperture size throughout a project and change the mood room by room — see the RA35-12F-35K-90BN, the RA35-12F-90BN or the dim-to-warm RA35-12F-DTW-90BN. The full technical PDF spec sheet is available in the Documentation tab for dimensions, the ordering guide and the accessory list.
