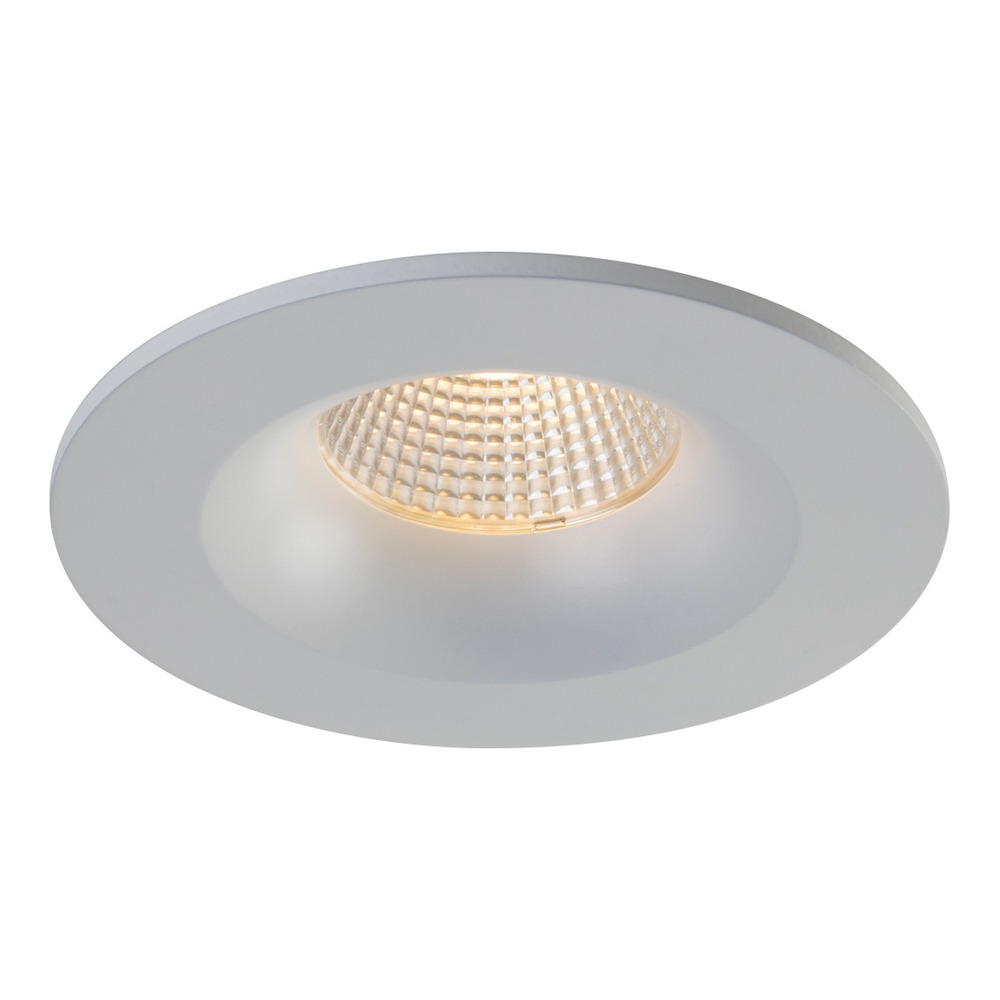

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-DTW-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-DTW-90WH
Brand: LITELINE
SKU: RA35-12F-DTW-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12F-DTW-90WH

Brand: LITELINE

Warm, cozy light that dims like a candle — that's the promise of the 3.5" LUNA LED Round Recessed Fixture RA35-12F-DTW-90WH from LITELINE. Call it a recessed downlight, a pot light, a round LED recessed light or simply a small ceiling can: this is the compact, low-profile version builders and homeowners reach for when they want clean ceilings and beautiful light without bulky housings. Its dim-to-warm technology shifts the colour of the light as you lower the dimmer, so evenings feel softer and more relaxed, exactly like the incandescent glow people miss. It's a favourite for kitchen downlights, hallways, bedrooms, living rooms, restaurants, boutiques and hotel corridors — anywhere dimmable LED downlights need to look good and disappear into the ceiling.

Under the white trim sits a 12 W LED module delivering up to 600 lumens, at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood, paint and food look true. The colour temperature dims from 3000 K down to 2000 K, and the lens gives a tidy 38° beam spread that puts light where you want it. It runs on a 300 mA dimmable Class II electronic driver with 100-135V AC input, 50/60 Hz, power factor greater than 0,90, and works with industry-standard TRIAC/ELV dimmers. The airtight fixed aluminum body with anodized blue heat sink keeps the LED cool; projected life is 70% at 33,000 hrs and it carries a lifetime warranty. Cut hole is Ø 3 5⁄8" (92 mm), overall body 4 3⁄8" (111 mm), and it's cETLus certified, suitable for wet locations and approved for direct contact with insulation. LM79 and LM80 tested.

From a Montréal condo reno to a cottage porch ceiling, this white 3.5" downlight handles it: bathrooms and showers, covered entries, soffits, kitchens, offices and retail. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make wiring fast. Matching finishes are available — see the 3.5" Luna LED round recessed fixture in black or the 3.5" Luna LED round recessed fixture in brushed nickel. Order your RA35-12F-DTW-90WH today and give every room that warm, welcoming glow.

Built to last, built to install fast
The LUNA RA35-12F-DTW is built around a durable airtight fixed aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — the reason this little recessed downlight holds its output year after year. Mounting is ceiling recess, with two spring-loaded clips that attach to any ceiling material, so it drops into drywall, plaster or wood ceilings with equal ease. The required hole cut is Ø 3 5⁄8" (92 mm), the body measures 4 3⁄8" (111 mm) and 3 3⁄8" (85 mm), with a slim 15⁄16" (34 mm) profile at the trim. The white (WH) trim finish blends into painted ceilings and stays discreet, day and night.

Light quality and dim-to-warm
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, which means colours stay honest under the beam — a real advantage over kitchen counters, artwork and merchandise displays. The colour temperature dims from 3000 K down to 2000 K as you lower the dimmer, recreating the warm, candle-like behaviour of halogen and incandescent sources. The lens delivers a 38° beam spread, tight enough to shape pools of light on a counter or an island, wide enough for general ceiling lighting on standard residential ceilings.

Electrical and installation details
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable Class II electronic LED driver with 100-135V AC input at 50/60 Hz. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast for contractors doing a full floor of pot lights. The fixture is compatible with industry standard TRIAC/ELV dimmers; a compatible dimmer list is published by Liteline. Operating temperature range is -20°C~40°C (-4°F~104°F), and the unit is suitable for wet locations and approved for direct contact with insulation — ideal for insulated attics and Canadian winters.

Technical specifications
SKU: RA35-12F-DTW-90WH
Brand: LITELINE
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50 / 60Hz
Dimming Tech: TRIAC/ELV
Power Factor: >0.90
Hole Cut: Ø 3 5⁄8" (92mm)
Projected Life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80, Class II
Colour: White
Warranty: Lifetime

Applications, accessories and documentation
Use it in rows over a kitchen island, in a hallway, in a bathroom or shower (wet location approved), under a covered porch or soffit, and in commercial spaces such as boutiques, cafés, clinics and hotel corridors where a warm dimmed ambience matters. Accessories are sold separately: pre-mounting and new construction plates, a new construction mounting kit, vapour barrier extenders for new construction or remodel work, reducer rings for 3½" LUNA fixtures and a smart Wi-Fi dimmer are all listed on the spec sheet. Prefer a fixed colour temperature instead of dim-to-warm? The same body is offered as the RA35-12F-30K-90WH in 3000 K or the RA35-12F-90WH white round downlight, and in brushed nickel dim-to-warm for a different look. The full technical PDF (RA35-12F-DTW-90WH Spec Sheet) is available in the Documentation tab with dimensions, the ordering guide and the accessory list.
