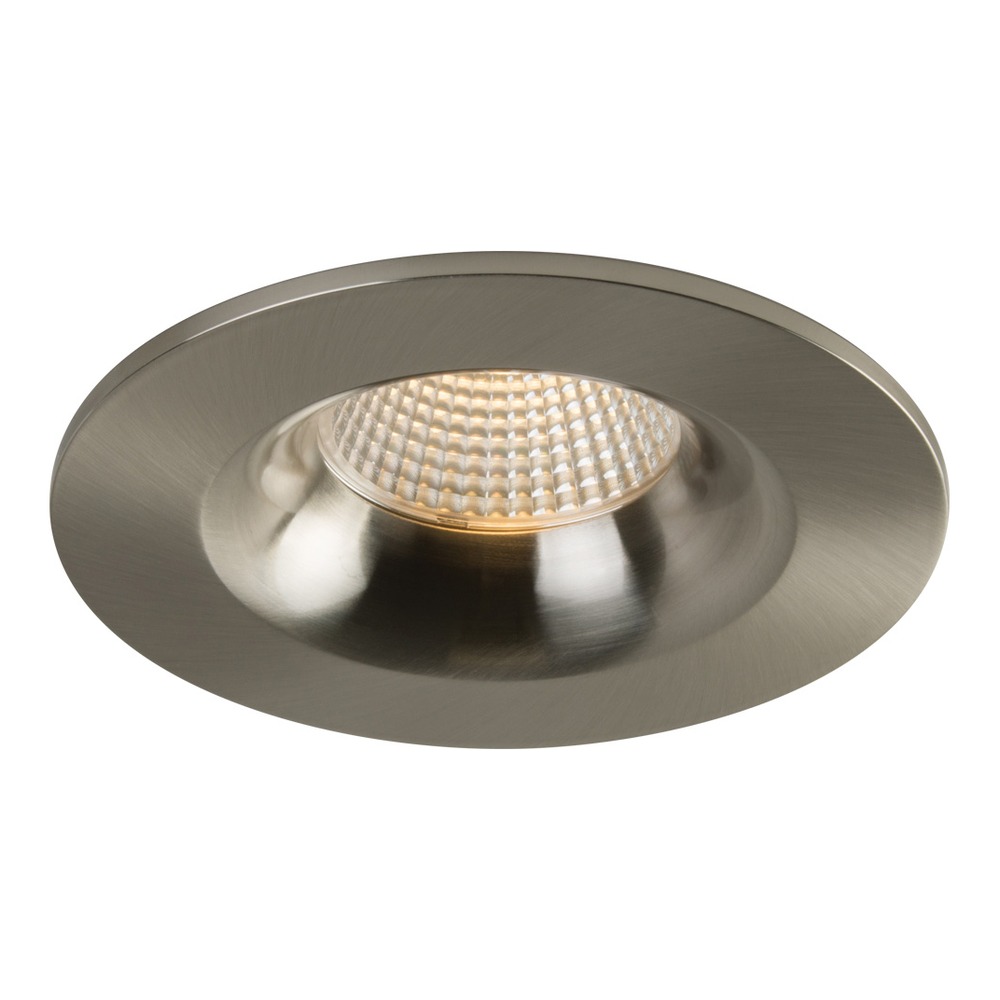

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90BN
Brand: LITELINE
SKU: RA35-12F-40K-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA35-12F-40K-90BN

Brand: LITELINE

Small aperture, big presence: the LUNA 3.5" LED round recessed fixture by LITELINE (model RA35-12F-40K-90BN) is the compact pot light that finally makes a ceiling look finished instead of crowded. Homeowners call them recessed lights, downlights or round LED lights; electricians call them 3½-inch cans. Whatever you call them, this one is a complete, ready-to-wire LED downlight with its own remote driver, designed to drop into a 3 5⁄8" hole in drywall, plaster or a suspended ceiling. It works just as well in a hallway or kitchen as it does in a boutique, a clinic corridor or a café, and the brushed nickel trim finish gives it a soft, modern look that blends with stainless appliances and contemporary hardware.

Under the trim sits a 12 watt LED module producing up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and food look the way they should. The fixture runs on a 300 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input, housed in an extruded aluminum hardwire box with three "Quick connect" push-in terminals, and connected by an 18" (457 mm) FT6-rated cable with a DC 2.1 connector approved for plenums and suspended ceilings. Dimming is standard TRIAC/ELV. The airtight fixed aluminum body carries an anodized blue heat sink for airflow, a 38° beam spread lens, a projected life of 70% at 33,000 hrs, cETLus certification, LM79 and LM80 data, a power factor greater than 0.90, operation from -20°C to 40°C, and a lifetime warranty. It is suitable for wet locations and approved for direct contact with insulation.

That combination makes RA35-12F-40K-90BN a natural for kitchens, hallways, bedrooms, walk-in closets, covered porches, showers and bathrooms, plus retail displays, offices and hospitality spaces across Canada, where insulated attics and vapour barriers are part of every renovation. Two spring-loaded clips grip any ceiling material, so retrofits go quickly, and matching finishes are available if you want the same look with a different colour temperature, including the 3.5" LUNA LED round recessed fixture RA35-12F-35K-90BN, the 3.5" LUNA LED round recessed fixture RA35-12F-27K-90BN or the dim-to-warm 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BN. Plan your layout, order your count and light the whole room properly.

Built to last, built to install fast
The LUNA 3.5" starts with a durable airtight fixed aluminum body and an anodized blue heat sink that keeps air moving around the LED light source — the single biggest factor in how long a recessed LED downlight keeps its output. Two spring-loaded clips let the fixture attach to any ceiling material, which is why it is so popular for retrofit work: cut a Ø 3 5⁄8" (92 mm) hole, feed the driver box into the cavity, squeeze the clips and the pot light seats flush. Overall the unit measures 4 3⁄8" (111 mm) and 3 3⁄8" (85 mm) across, with a 4 3⁄16" (106 mm) and 3 1⁄16" (78 mm) profile and a 15⁄16" (34 mm) depth detail at the trim, and the brushed nickel ring finishes the ceiling cleanly.

Light quality you can see
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, so colours read true instead of washed out — an obvious win over old halogen cans while drawing a fraction of the energy. The lens delivers a controlled 38° beam spread, tight enough to keep light where you aim it over an island, a vanity or a display shelf, and wide enough to space fixtures comfortably through a hallway or open-plan room. LM79 and LM80 testing is documented, and the projected life is rated at 70% @ 33,000 hrs.

Electrical and installation details
Power comes from a 300 mA dimmable Class II electronic LED driver with 100-135V AC input, mounted in an extruded aluminum hardwire box. Three "Quick connect" push-in terminals make wiring quick and tool-light, and the 18" (457 mm) FT6-rated cable with DC 2.1 connector between driver and fixture is approved for use in plenums and suspended ceilings. Dimming technology is TRIAC/ELV, compatible with industry standard dimmers — always confirm your dimmer against the manufacturer's compatibility list before you commit to a full house. Operating temperature range is -20°C~40°C (-4°F~104°F), power factor is greater than 0.90, and the fixture is Class II, cETLus certified, suitable for wet locations and approved for direct contact with insulation. Warranty: lifetime.

Technical specifications
Model: RA35-12F-40K-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Hole Cut: Ø 3 5⁄8" (92mm)
Power Factor: >0.90
Projected Life: 70% @ 33,000 hrs
Certification: cETLus
Trim Finish: Brushed Nickel
Warranty: Lifetime

Applications, accessories and documentation
Think kitchen perimeters and islands, corridors, stairwells, bedrooms, bathrooms and covered exterior soffits at home; changing rooms, waiting areas, offices and small restaurants on the commercial side. Accessories are sold separately and include the P-3520 round pre-mounting plate with driver attachment clip and the P-3520NC round new construction plate for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the RA35-XLRING-BN reducer ring in brushed nickel (also offered in black and white), VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work, and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. For a mixed-temperature project, the same housing is offered as the 3.5" LUNA LED round recessed fixture RA35-12F-40K-90BK in black and the 3.5" LUNA LED round recessed fixture RA35-12F-90BN. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit package.

Technical Files
