3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90BK
Brand: LITELINE
SKU: RA35-12F-30K-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-30K-90BK

Brand: LITELINE

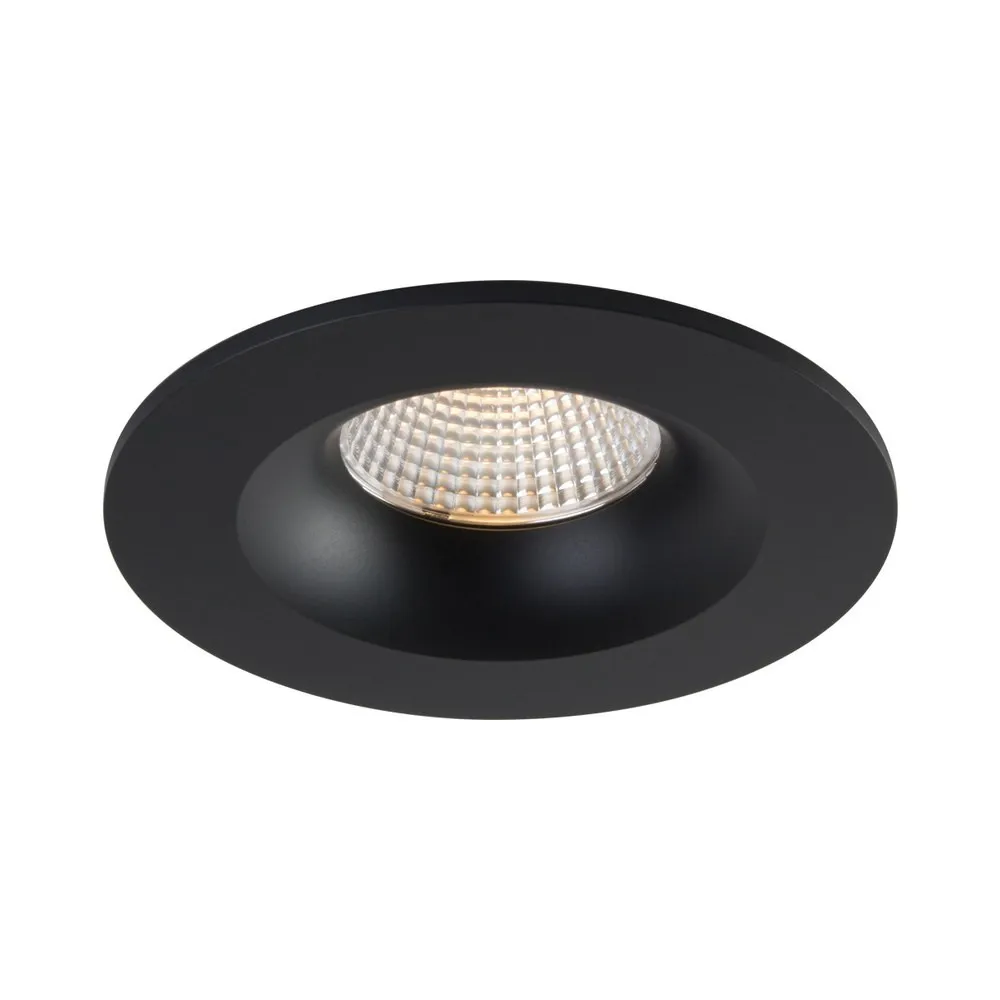

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE, model RA35-12F-30K-90BK, is the tidy little downlight that makes a ceiling look finished instead of cluttered. People call these pot lights, recessed downlights, round LED lights or simply dimmable LED downlights — whatever you call them, this is the compact 3.5-inch version, with a fixed round trim in a black finish that quietly disappears into a dark ceiling or pops as a graphic detail on a white one. It's built for retrofit work as much as for new builds: kitchens, hallways, bedrooms, living rooms, offices, boutiques and restaurants where you want clean rows of light without oversized trims.

Inside is a 12 watt LED module delivering up to 600 lumens at 57 lumens per watt, with a warm 3000 K colour temperature and a typical CRI of 90 so wood, paint, skin tones and food all look right. The lens produces a controlled 38° beam spread, and the fixture dims smoothly on industry-standard TRIAC/ELV dimmers. Its airtight fixed aluminum body carries an anodized blue heat sink for airflow, and the 300 mA dimmable Class II electronic driver sits in an extruded aluminum hardwire box with three quick-connect push-in terminals and an 18" FT6-rated cable with a DC 2.1 connector, approved for plenums and suspended ceilings. Input is 100-135V AC, 50/60 Hz, power factor greater than 0.90. It's cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for -20 °C to 40 °C, projected at 70% output at 33,000 hours and backed by a lifetime warranty.

Cut a Ø 3 5/8" (92 mm) hole, squeeze the two spring-loaded clips, and it mounts to virtually any ceiling material — the fixture measures 4 3/8" (111 mm) across and 3 3/8" (85 mm) tall. Because it's wet-location rated and insulation-contact approved, it works over showers, in covered porches and soffits, and in insulated Canadian ceilings where snow, steam and cold are part of the deal. Need the same look in another tone or temperature? See the 3.5" Luna LED round recessed fixture RA35-12F-30K-90WH or the warmer 3.5" Luna LED round recessed fixture RA35-12F-27K-90BK. Plan your layout and light the whole floor in one pass.

Built to last, built to install fast
The LUNA 3.5" starts with a durable airtight fixed aluminum body — the kind of construction that keeps conditioned air where it belongs instead of leaking into the attic. An anodized blue heat sink is integrated to maximize airflow around the LED light source, which is what protects colour consistency and lumen output over the years. Two spring-loaded clips hold the fixture in place in virtually any ceiling material, from drywall to plywood to acoustic tile, so a retrofit pot light installation comes down to a clean hole and a firm push. At 4 3/8" (111 mm) in diameter with a 3 3/8" (85 mm) body height, it slips into tight joist bays where a 4" or 6" housing simply won't go.

Light quality you can see
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90. That high colour rendering is the difference between a countertop that looks grey and one that looks like real stone. The fixed 3000 K colour temperature is the classic warm-white living tone Canadians reach for in kitchens, living rooms and bedrooms, and the lens shapes a 38° beam spread — tight enough to layer pools of light down a hallway or over an island, wide enough for general ambient coverage. LM79 and LM80 testing are both on file, and projected life is 70% of initial output at 33,000 hours.

Electrical and dimming
Power comes from a 300 mA dimmable Class II electronic LED driver housed in an extruded aluminum hardwire box, with an input of 100-135V AC, 50/60 Hz and a power factor above 0.90. Three "quick connect" push-in terminals make wiring fast on a long install day, and an 18" (457 mm) FT6-rated cable with a DC 2.1 connector links the driver to the fixture — approved for use in plenums and suspended ceilings. Dimming is TRIAC/ELV, so it pairs with industry-standard wall dimmers; LITELINE publishes a compatible dimmer list for the LUNA family, and the fixture also accepts the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V, as a listed accessory.

Technical specifications
SKU: RA35-12F-30K-90BK
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Hole cut: Ø 3 5/8" (92 mm)
Dimensions: 4 3/8" (111 mm) x 3 3/8" (85 mm)
Colour: Black
Power factor: >0.90
Operating temperature: -20 °C~40 °C (-4 °F~104 °F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Class II: Yes
Warranty: Lifetime

Accessories, compatibility and documentation
Accessories are sold separately and open up every install scenario: the P-3520 3 5/8" round pre-mounting plate and the P-3520NC new construction plate, both with driver attachment clip for 3½" LUNA fixtures; the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws; the VBE-1 vapour barrier extender for new construction and the VBE-2, VBE-3 and VBE-4 extenders for remodel work — a real answer to the recessed lighting vapour barrier question in Canadian exterior ceilings. Reducer rings RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH cover oversized holes. For a mixed layout, match this black trim with the 3.5" Luna LED round recessed fixture RA35-12F-27K-90BN, step up in temperature with the 3.5" Luna LED round recessed fixture RA35-12F-35K-90BN, or choose the dim-to-warm version, the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BK. The full technical PDF spec sheet is in the Documentation tab for your electrician, inspector or lighting plan.

Technical Files
