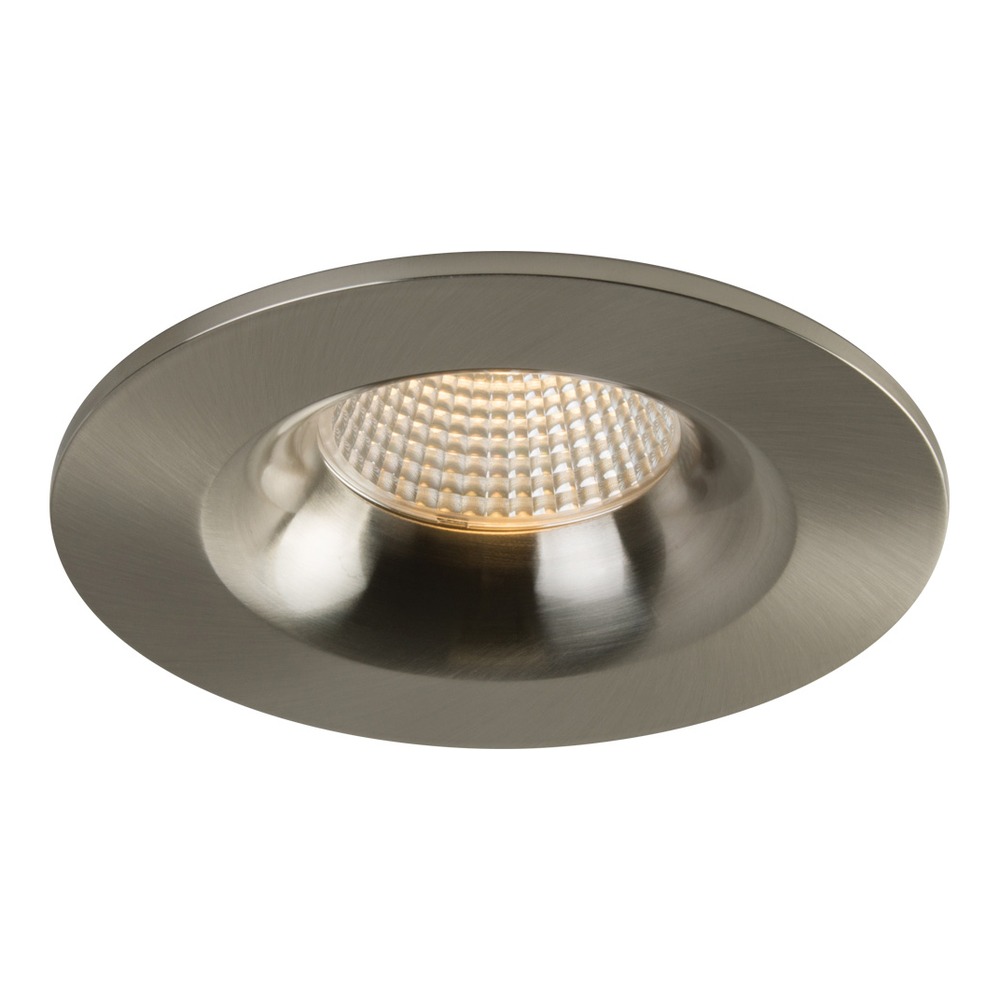

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-50K-90BN
Brand: LITELINE
SKU: RA35-12F-50K-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA35-12F-50K-90BN

Brand: LITELINE

Small aperture, big impact: the LUNA 3.5" round LED recessed fixture from LITELINE (SKU RA35-12F-50K-90BN) is the clean, discreet pot light homeowners and contractors reach for when they want light without visual clutter. Call it a mini downlight, a 3.5 inch recessed light, a round LED downlight or simply a pot light — it is the same idea: an all-in-one fixed recessed luminaire with an integrated LED module, a remote driver and a brushed nickel trim that disappears into the ceiling. Because it is a complete kit, there is no separate housing to buy and no bulb to change later. It suits new construction, renovations and retrofit work alike: kitchens, hallways, bedrooms, basements, shops, offices and boutique spaces where you want a tight grid of small, even light points.

This 3.5" model runs on a 12 W LED module delivering up to 600 lumens (57 lumens per watt) through a lens that shapes a 38° beam spread, with a typical CRI of 90 so wood, paint, tile and skin tones look true. It is dimmable with industry-standard TRIAC/ELV dimmers, powered by a 300 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input, and wired in seconds through three Quick Connect push-in terminals plus an 18" (457 mm) FT6-rated cable with DC 2.1 connector approved for plenums and suspended ceilings. The durable airtight aluminum body carries an anodized blue heat sink for airflow, mounts with two spring-loaded clips into any ceiling material, and drops into a Ø 3 5⁄8" (92 mm) hole. Rated for wet locations and approved for direct contact with insulation, cETLus certified, power factor >0.90, projected life 70% @ 33,000 hrs, operating from -20 °C to 40 °C, with a lifetime warranty.

From a Montréal condo hallway to a Prairie basement ceiling or a covered porch soffit, this brushed nickel downlight handles Canadian realities: insulated ceilings, cold entryways, damp bathrooms and showers. Use the P-3520 pre-mounting plate or P-3520NC new construction plate, the P-NCMK-1 mounting kit, a VBE vapour barrier extender or an RA35-XLRING reducer ring to fit your job. Matching the room's palette is easy too — see the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN or the 3.5" Luna LED round recessed fixture RA35-12F-50K-90WH. Plan your layout and order your LUNA downlights today.

Built to last, built to fit
The LUNA 3.5" recessed fixture starts with a durable airtight fixed aluminum body — the kind of construction that keeps drafts out of an insulated ceiling and keeps the LED module cool. Inside, an anodized blue heat sink maximizes airflow around the light source, which is what protects lumen output and colour over the years. Mounting is refreshingly simple: two spring-loaded clips grip any ceiling material, from drywall to plaster to a suspended tile, and the fixture drops into a Ø 3 5⁄8" (92 mm) hole cut. The fixture measures 4 3⁄8" (111 mm) and 3 3⁄8" (85 mm) across the trim and body, with a slim 15⁄16" (34 mm) profile at the flange, so this 3.5 inch pot light reads as a small, tidy aperture rather than a bulky can.

Light quality you can see
A 12 watt LED module produces up to 600 lumens of uniform intensity — no hot spots, no multi-shadow effect — at 57 lumens per watt. The lens delivers a 38° beam spread, a controlled angle that layers beautifully in a grid over a kitchen island, a hallway or a retail display. With a typical CRI of 90, colours stay honest: white cabinetry stays white, walnut stays warm, merchandise looks like it does in daylight. That high-CRI rendering is exactly why designers specify these small-aperture round LED downlights for feature spaces instead of generic fixtures.

Electrical, dimming and installation
The extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic LED driver with 100-135V AC input, and three Quick Connect push-in terminals make wiring fast — no wire nuts, no fuss. An 18" (457 mm) FT6-rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. The fixture is dimmable with industry-standard TRIAC/ELV dimmers; always confirm your dimmer against LITELINE's compatibility list. It is approved for direct contact with insulation and suitable for wet locations, and it operates from -20 °C to 40 °C (-4 °F to 104 °F).

Technical specifications
SKU: RA35-12F-50K-90BN
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92 mm)
Operating temperature: -20 °C~40 °C (-4 °F~104 °F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Accessories, matching fixtures and documentation
Build the install around the job: the P-3520 3 5⁄8" round pre-mounting plate with driver attachment clip and the P-3520NC new construction plate are made for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit adds hanger bars, brackets and screws, and VBE-1 through VBE-4 vapour barrier extenders cover new construction and remodel situations — a must in Canadian ceilings. Reducer rings RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH adapt the aperture in retrofit work. Accessories are sold separately. To stay consistent across a whole floor, pair this brushed nickel unit with other LUNA finishes and colour temperatures such as the 3.5" Luna LED round recessed fixture RA35-12F-35K-90BN, the 3.5" Luna LED round recessed fixture RA35-12F-27K-90BN or the dim-to-warm 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BN. The full technical PDF spec sheet is in the Documentation tab for your electrician, your designer or your permit file.

Technical Files
