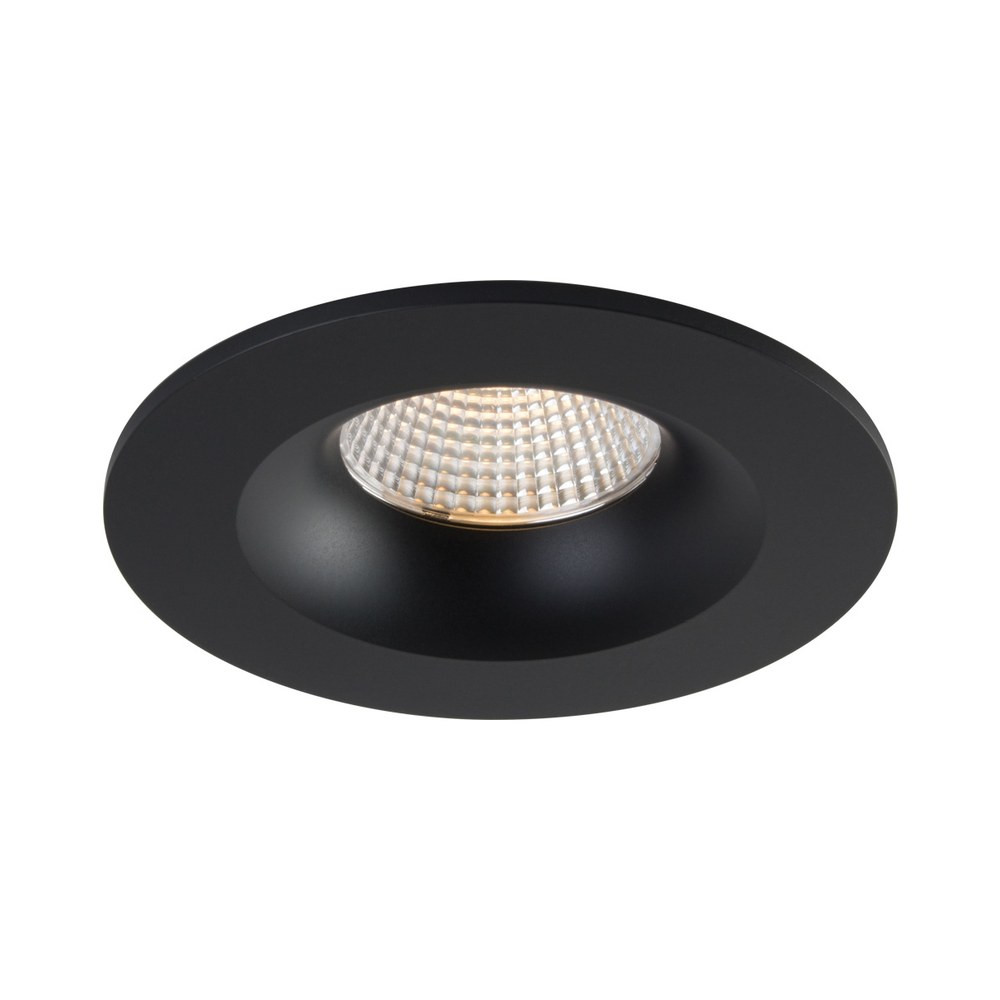

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-DTW-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-DTW-90BK
Brand: LITELINE
SKU: RA35-12F-DTW-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12F-DTW-90BK

Brand: LITELINE

Warm, cozy light that dims like a classic incandescent bulb — that's the magic of the 3.5" LUNA LED round recessed fixture, model RA35-12F-DTW-90BK from LITELINE. This is a compact LED downlight (also called a pot light, recessed light or canless recessed downlight) built for retrofit work: you feed the wires into the hardwire box, push the fixture into the ceiling and the spring clips do the rest. It's the kind of small round LED light people go looking for when they want clean ceilings in a kitchen, hallway, bedroom or basement without bulky housings or big holes to patch.

The star feature here is dim-to-warm: the colour temperature travels from 3000 K down to 2000 K as you lower the dimmer, so evening light turns candle-soft instead of staying cold and flat. A 12 W LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 that keeps skin tones, wood and paint colours looking true. The 38° beam spread is tight enough for clean pools of light and even spacing. Inside, a 300 mA dimmable Class II electronic driver runs on 100-135 V AC, 50/60 Hz with a power factor greater than 0.90, and it's compatible with TRIAC/ELV dimmers. The airtight fixed aluminum body carries an anodized blue heat sink, the trim finish is black (BK), and the fixture is cETLus certified, rated for wet locations, approved for direct contact with insulation, LM79 and LM80 tested, projected at 70% output after 33,000 hours and backed by a lifetime warranty.

With a Ø 3 5/8" (92 mm) hole cut and a body measuring 4 3/8" (111 mm) across, these dimmable LED downlights slip into kitchens, bathrooms, covered porches, shower ceilings, condo hallways, boutiques, cafés and offices — anywhere a Canadian renovation needs light that survives humidity and insulated attics. Matching finishes are available: see the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BN in brushed nickel or the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90WH in white. Prefer a fixed colour? The 3.5" LUNA LED round recessed fixture RA35-12F-27K-90BK shares the same black trim. Order your LUNA downlights today and give every room that warm, welcoming glow.

Built to last, built to install fast
The LUNA 3.5" round fixed downlight uses a durable airtight fixed aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — cooler running gear means steadier light over the years. Two spring-loaded clips grip any ceiling material, so the fixture seats itself in the Ø 3 5/8" (92 mm) hole cut without extra hardware. The recessed LED downlight measures 4 3/8" (111 mm) at the trim and 3 3/8" (85 mm) deep, with a 3 1/16" (78 mm) body and a 15/16" (34 mm) profile at the hardwire box, making it friendly to shallow plenums and tight joist bays.

Dim-to-warm light quality
This SKU, RA35-12F-DTW-90BK, is the dim-to-warm version: colour temperature shifts from 3000 K to 2000 K as the dimmer comes down, recreating the cozy amber glow of a filament lamp at low levels. The 12 W LED module maintains uniform intensity and produces up to 600 lumens, and the typical 90 CRI renders wood grain, textiles, food and complexions honestly. The fixture lens sets a 38° beam spread — ideal for accenting a counter, a hallway runner or artwork while keeping ceilings free of glare. Both LM79 and LM80 testing back the photometric and lumen-maintenance claims.

Technical specifications
Model: RA35-12F-DTW-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50 / 60Hz
Dimming: Yes, TRIAC/ELV
Power factor: >0.90
Class II: Yes
Hole cut: Ø 3 5/8" (92mm)
Colour: BK (black trim)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Warranty: Lifetime

Wiring, driver and compatibility
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable Class II electronic LED driver with 100-135V AC input. Three "Quick connect" push-in terminals make wiring quick and tidy, and an 18" (457 mm) FT6-rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. The fixture works with industry-standard TRIAC/ELV dimmers; LITELINE publishes a compatible dimmer list on its website. Accessories are sold separately and include the P-3520 pre-mounting plate and P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the RA35-XLRING-BK black reducer ring, VBE-1 to VBE-4 vapour barrier extenders and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V.

Where it works and what's documented
Suitable for wet locations and approved for direct contact with insulation, this downlight is at home over a shower, under a covered porch or soffit, and in insulated attic ceilings across Canadian climates — the vapour barrier extenders help you keep the envelope sealed. Use it on a dimmer above a dining table, in a bedroom, a hotel corridor, a spa, a restaurant or a boutique where the dim-to-warm effect sets the mood at night. Need other colour temperatures or finishes in the same 3½" platform? Compare the 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH, the 3.5" LUNA LED round recessed fixture RA35-12F-35K-90BN or the 3.5" LUNA LED round recessed fixture RA35-12F-90WH. The full spec sheet with dimensions, ordering guide and accessory list is in the Documentation tab.
