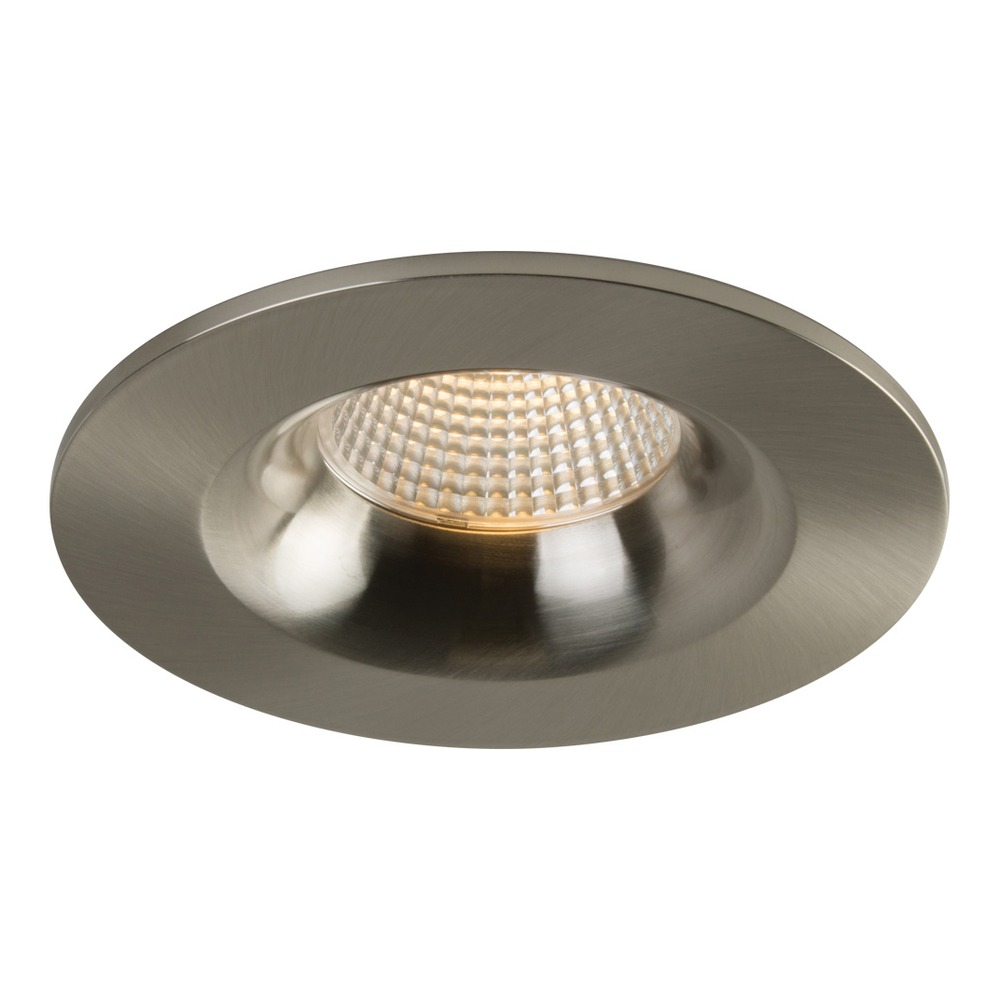

Built to last, built to disappearThe LUNA RA35-12F-DTW-90BN is built around a durable airtight fixed aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — the single biggest factor in how long an
LED pot light keeps its brightness and colour. The trim is finished in brushed nickel for a soft metallic accent that pairs beautifully with stainless appliances and modern hardware. Overall dimensions are 4 3/8" (111 mm) and 3 3/8" (85 mm), with a 4 3/16" (106 mm) and 3 1/16" (78 mm) housing profile and a 15/16" (34 mm) depth detail, all fed by an 18" (457 mm) cable. The fixed, non-adjustable design keeps the ceiling plane clean and uniform.
Light quality and dim-to-warmThe 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, so colours read naturally instead of washed out. What makes this
dim-to-warm downlight special is the colour shift: as you lower the dimmer, the light travels from 3000 K down to 2000 K, mimicking the warm amber glow of a dimmed incandescent. The lens delivers a 38° beam spread — tight enough to create defined pools over counters and tables, wide enough for general ambient lighting when the fixtures are spaced properly.
Technical specificationsApplication: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Class II: Yes
Power Factor: >0.90
Hole Cut: Ø 3 5/8" (92mm)
Projected Life: 70% @ 33,000 hrs
Operating Temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime
Trim finish: Brushed Nickel (BN)
Wiring, installation and accessoriesInstallation is genuinely fast. Two spring-loaded clips let the fixture attach to virtually any ceiling material through a Ø 3 5/8" (92 mm) hole cut. The extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic driver with 100-135 V AC input and three "Quick connect" push-in terminals for quick, tool-free wiring. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Because the unit is airtight and approved for direct contact with insulation, it works in insulated ceilings without a separate enclosure. Liteline lists useful accessories, sold separately: the P-3520 3 5/8" round pre-mounting plate and the P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, vapour barrier extenders VBE-1 for new construction and VBE-2, VBE-3 and VBE-4 for remodel work, the LC-CRTL-DIM-1 smart Wi-Fi dimmer 120V, and the RA35-XLRING-BN brushed nickel reducer ring (also offered in black and white) for 3½" LUNA fixtures.
Where it works and what's documentedUse it over kitchen counters, in open-concept living rooms, primary bedrooms, ensuite showers, covered entries and soffits thanks to the wet location rating, and in commercial spaces such as boutiques, hotel corridors, clinics and restaurants where a warm dimmed scene matters at night. If your project needs a single fixed colour temperature instead, the family includes the
3.5" Luna LED round recessed fixture RA35-12F-27K-90BN and the
3.5" Luna LED round recessed fixture RA35-12F-40K-90BN, both in the same brushed nickel trim. The full technical PDF spec sheet for RA35-12F-DTW-90BN, including the ordering guide, dimensions and accessory list, is available in the Documentation tab for your electrician or lighting plan.
