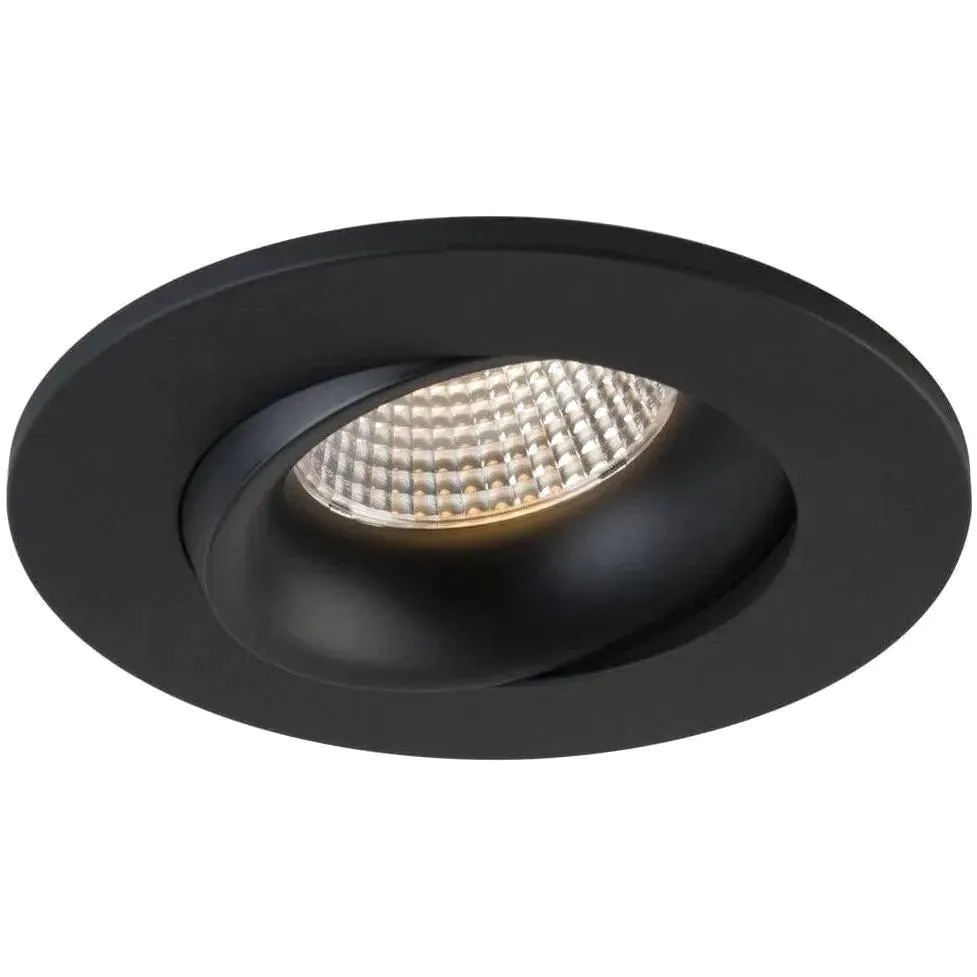

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-90BK
Brand: LITELINE
SKU: RA35-12G-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12G-90BK

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture RA35-12G-90BK is the discreet black pot light that finally makes a ceiling look finished instead of crowded. If you have been shopping for dimmable LED downlights, round LED lights or simply a clean recessed can that disappears into drywall, this is the one designers keep specifying. It belongs to the LUNA family of recessed downlighting from LITELINE, an all-in-one fixed downlight with the LED module, lens and driver supplied together — no separate trim to hunt for, no mismatched parts. Use it for general lighting in hallways and bedrooms, for a tidy grid of kitchen downlights over an island, for closets, entries, stairwells, covered porches and small commercial spaces where a 4" or 6" can would look oversized.

The durable airtight aluminum body houses a 12 watt LED module producing up to 600 lumens (57 lumens per watt) with a typical CRI of 90, so skin tones, wood grain, paint colours and food look the way they should. Light is delivered through a 38° beam spread lens for controlled, uniform pools of light, and an anodized blue heat sink keeps the LED cool for a projected life of 70% at 33,000 hours, backed by a lifetime warranty. The 300mA dimmable class II electronic driver runs on 100-135V AC, 50/60Hz, with a power factor greater than 0.90, and it dims smoothly on industry standard TRIAC/ELV dimmers. It is cETLus certified, rated for wet locations and approved for direct contact with insulation, with an operating range of -20°C~40°C (-4°F~104°F). The hole cut is Ø 3 5⁄8" (92mm), the fixture measures 4 3⁄8" (111mm) wide, and the trim wears a black finish.

From a Montréal condo renovation to a cottage soffit on the Ontario lakeshore, this little downlight handles Canadian reality: insulated ceilings, cold covered entries, bathrooms and showers where a wet location rating is non-negotiable. Contractors love the two spring loaded clips that grab any ceiling material and the three quick connect push-in terminals that make wiring fast. Pair it with matching black units such as the 3.5" LUNA LED round recessed fixture RA35-12G-DTW-90BK, or match your hardware with the brushed nickel RA35-12G-90BN and white RA35-12G-90WH versions. Order your LUNA downlights today and light the whole project with one clean look.

Built to last, built to fit
The LUNA 3.5" starts with a durable airtight fixed aluminum body — no flimsy plastic housing — and adds an anodized blue heat sink that maximizes airflow around the LED light source. That thermal design is the reason this small recessed downlight holds its output over time, with a projected life of 70% at 33,000 hours and a lifetime warranty from LITELINE. Two spring loaded clips attach the fixture to any ceiling material, so it works in drywall, plaster, wood and panel ceilings alike. The compact footprint is a real advantage in tight bulkheads and shallow ceilings where full-size cans simply will not fit.

Light quality you can see
The 12 watt LED module delivers up to 600 lumens of even, uniform intensity through a lens that shapes a 38° beam spread. That angle is tight enough to create defined pools of light on a counter or a hallway runner, yet wide enough to layer comfortably when fixtures are spaced in a row. With a typical CRI of 90, colours stay honest — a must over kitchen work surfaces, in bathrooms with mirrors, in retail displays and anywhere clients judge finishes. LM79 and LM80 testing back the photometric and lumen maintenance claims.

Technical specifications
SKU: RA35-12G-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Class II: Yes
Hole cut: Ø 3 5⁄8" (92mm)
Dimensions: 4 3⁄8" (111mm) / 3 3⁄8" (85mm) / 4 3⁄16" (106mm) / 3 1⁄16" (78mm) / 15⁄16" (34mm)
Cable: 18" (457mm) FT6 rated with DC 2.1 connector
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime
Finish: Black

Electrical and installation
Power comes from an extruded aluminum hardwire box with a 300mA dimmable class II electronic LED driver (100-135V AC input). An 18" (457mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings — handy for commercial retrofits. Three quick connect push-in terminals mean no wire nuts and much faster rough-in on multi-fixture jobs. Cut a Ø 3 5⁄8" (92mm) hole, make your connections, squeeze the clips and push the fixture home. Because it is approved for direct contact with insulation and rated for wet locations, it can go into insulated attics, under soffits and in shower ceilings. Pair it with industry standard TRIAC/ELV dimmers for smooth control; LITELINE publishes a compatible dimmer list at www.liteline.com/lunadimmers.

Accessories, matching fixtures and documentation
Liteline lists accessories sold separately for the 3½" LUNA platform: the P-3520 round pre-mounting plate and P-3520NC new construction plate with driver attachment clip, the P-NCMK-1 new construction mounting kit with hanger bars, the VBE-1 through VBE-4 vapour barrier extenders (a common request for recessed lighting vapor barrier details in new construction and remodel work), the RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH reducer rings, and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. To keep a project consistent, mix in the dim-to-warm models from the same family such as the RA35-12F-DTW-90BK, RA35-12F-DTW-90BN or RA35-12F-DTW-90WH. The full technical PDF (RA35-12G-90BK Spec Sheet) is in the Documentation tab for your submittals and permit package.
