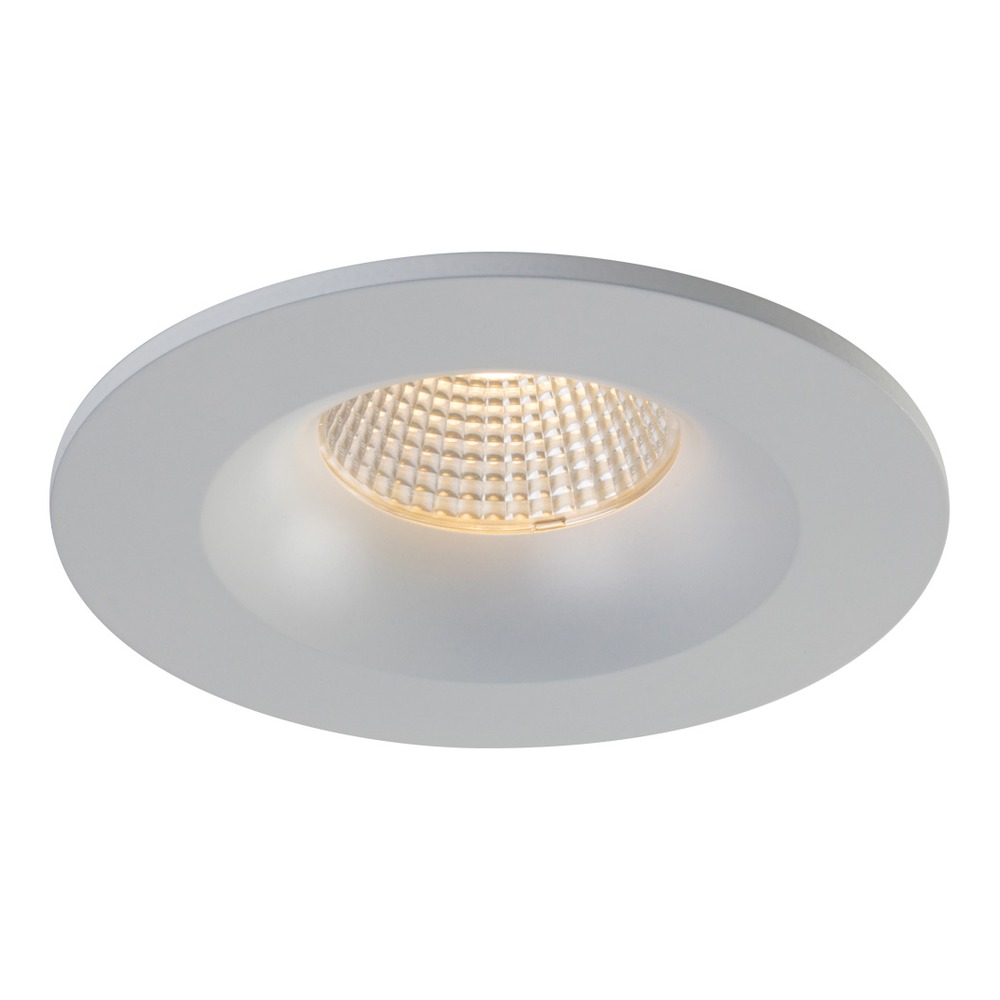

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-90WH
Brand: LITELINE
SKU: RA35-12F-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA35-12F-90WH

Brand: LITELINE

Small aperture, big impact: the LUNA 3.5" round LED recessed fixture from LITELINE, model RA35-12F-90WH, is the discreet pot light renovators and contractors keep coming back to. Call it a recessed downlight, a round LED light, a downlight or simply a pot light — this is the compact 3½-inch fixed downlight that slips into a ceiling, disappears into the drywall and lets the light do the talking. It's a complete airtight unit with integrated LED module, hardwire box and driver, built for retrofit work as much as for new ceilings, and it belongs in the kind of projects where you want dimmable LED downlights that look clean and behave predictably from the first switch-on.

The 12W LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and fabrics look the way they should. The real party trick is dim-to-warm: the colour temperature shifts from 3000 K to 2000 K as you dim, giving you that cozy candlelight glow at the low end instead of flat grey dimming. It runs on 100-135V AC, 50/60 Hz with a 300 mA Class II electronic driver, dims with industry-standard TRIAC/ELV dimmers, and throws a controlled 38° beam. Body is durable airtight aluminum with an anodized blue heat sink; cut-out is Ø 3 5⁄8" (92 mm), fixture height 3 3⁄8" (85 mm), trim Ø 4 3⁄8" (111 mm), with an 18" (457 mm) FT6-rated cable. It's cETLus certified, LM79 and LM80 tested, rated for wet locations and direct contact with insulation, with a projected life of 70% @ 33,000 hrs and a lifetime warranty. Finish: white.

Put these over a kitchen island, along a hallway, in a bedroom, a bathroom or a covered porch; use them in a boutique, a clinic waiting room, a restaurant or an office corridor. The wet-location and insulated-ceiling approval makes them a natural fit for Canadian homes where kitchen downlights, showers and soffits all need to pass inspection. Prefer another finish? See the 3.5" LUNA LED round recessed fixture RA35-12F-90BN, and for fixed colour temperatures look at the RA35-12F-30K-90WH or RA35-12F-40K-90BK. Order your LUNA downlights and light the room properly.

Built to last, built to install fast
The LUNA 3.5" round fixed downlight uses a durable airtight aluminum body with an anodized blue heat sink that keeps airflow moving around the LED source — the single biggest factor in how long an integrated LED fixture actually holds its output. Two spring-loaded clips grip any ceiling material, so the fixture seats flush in drywall, plaster or panel ceilings without extra hardware. The extruded aluminum hardwire box carries three "Quick connect" push-in terminals for fast wiring, and an 18" (457 mm) FT6-rated cable with a DC 2.1 connector links the driver to the fixture — a cable approved for use in plenums and suspended ceilings, which matters on commercial jobs.

Light quality and dim-to-warm
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, a level of colour rendering that keeps countertops, cabinetry and merchandise looking rich rather than washed out. As you dim, the colour temperature travels from 3000 K down to 2000 K, recreating the warm glow people love from incandescent sources — ideal for dining rooms, hospitality spaces and bedrooms. The lens delivers a 38° beam spread, tight enough to keep light where you aim it, wide enough for general ambient coverage when the fixtures are laid out on a regular grid.

Technical specifications
SKU: RA35-12F-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Driver: 300mA dimmable Class II electronic
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92mm)
Dimensions: 4 3⁄8" (111mm) trim, 3 3⁄8" (85mm) height, 4 3⁄16" (106mm), 3 1⁄16" (78mm), 15⁄16" (34mm)
Cable: 18" (457mm) FT6, DC 2.1 connector
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus — LM79, LM80
Colour: White
Warranty: Lifetime

Installation, dimming and accessories
Cut a Ø 3 5⁄8" (92 mm) hole, feed the hardwire box into the cavity, connect line, neutral and ground to the push-in terminals, clip the fixture in place — done. The driver is approved for direct contact with insulation, so no keep-away zone is needed in an insulated attic or a sloped ceiling. For dimming, use a standard TRIAC or ELV dimmer; LITELINE publishes a compatible dimmer list at www.liteline.com/lunadimmers. Listed accessories (sold separately) include the P-3520 round pre-mounting plate and P-3520NC new construction plate with driver attachment clip for 3½" LUNA fixtures, the P-NCMK-1 new construction mounting kit with hanger bars and brackets, the RA35-XLRING-WH, RA35-XLRING-BK and RA35-XLRING-BN reducer rings, the VBE-1 vapour barrier extender for new construction and VBE-2, VBE-3, VBE-4 for remodel work — the answer to every recessed lighting vapor barrier question on a Canadian job site — plus the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V.

Applications and documentation
These downlights suit residential and commercial projects alike: kitchens and islands, hallways, walk-in closets, ensuite bathrooms and covered entries at home; retail shops, dental and medical clinics, hotel corridors, cafés and small offices on the commercial side. Matching a whole house is easy within the family — pair this white unit with the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90WH, the brushed nickel RA35-12F-DTW-90BN or the black RA35-12F-DTW-90BK. The full technical PDF spec sheet is in the Documentation tab for cut-out dimensions, ordering codes and driver options.
