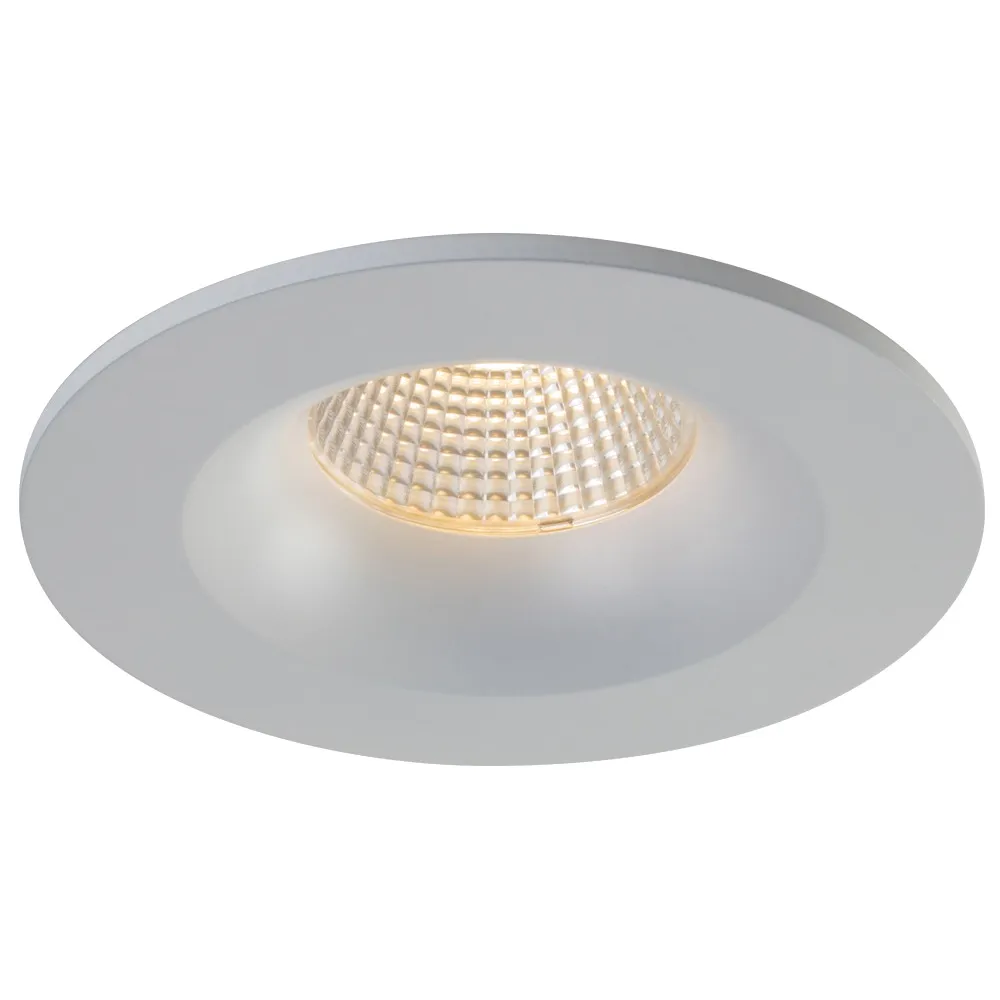

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90WH

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-30K-90WH
Brand: LITELINE
SKU: RA35-12F-30K-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-30K-90WH

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH is the discreet LED downlight that finally makes a ceiling look finished instead of cluttered. Call it a pot light, a recessed light, a can light or simply one of those round LED lights everyone asks for — this fixed, airtight LUNA downlight from LITELINE drops into a 3 5/8" hole and disappears into the drywall, leaving nothing but a clean white trim and a warm, even pool of light. It is built for general lighting in hallways, bedrooms, open kitchens, offices, retail floors and corridors, and it is one of the rare small-aperture dimmable LED downlights that can go over a shower or out on a covered porch.

Under the trim sits a 12 W LED module delivering up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so wood, paint, skin tones and merchandise look the way they should. The 3000 K warm white light dims down to 2000 K as you lower the dimmer, a dim-to-warm behaviour that mimics the cozy glow of incandescent at low levels; it works with industry-standard TRIAC/ELV dimmers. The 38° beam spread keeps the light controlled, the durable aluminum body with anodized blue heat sink keeps the LED cool, and the class II 300 mA dimmable driver runs on 100-135 V AC, 50/60 Hz with a power factor above 0.90. Measuring 4 3/8" (111 mm) across and 3 3/8" (85 mm) deep, it is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated 70% at 33,000 hours and backed by a lifetime warranty.

This is the downlight for a kitchen renovation in a bungalow, a basement apartment with tight joist space, a bathroom ceiling above the tub, a covered entry that takes the winter head-on, a boutique, a clinic or a restaurant dining room. Its -20 °C to 40 °C operating range suits Canadian soffits and unheated porches. Mix it with the same LUNA family in other finishes or colour temperatures — the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90WH, the black RA35-12F-27K-90BK, or the aimable RA35-12RG-90WH gimbal version where you need to tilt light onto art or a backsplash. Order your RA35-12F-30K-90WH and light the room properly the first time.

Built to last, built to install fast
The LUNA 3.5" fixed downlight starts with a durable airtight fixed aluminum body and an anodized blue heat sink that maximizes airflow around the LED light source — the single biggest factor in how long a small recessed LED fixture keeps its brightness and colour. Two spring-loaded clips hold the housing in any ceiling material, so a retrofit into existing drywall, plaster or a T-bar ceiling takes minutes with a 3 5/8" (92 mm) hole saw. The white trim finish (WH) sits flush and paint-friendly against the ceiling, and the fixture measures 4 3/8" (111 mm) in diameter by 3 3/8" (85 mm) high, with a hardwire box footprint of 4 3/16" (106 mm) x 3 1/16" (78 mm) x 15/16" (34 mm).

Light quality and dim-to-warm
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, which is what separates a flattering room from a flat one. This SKU is the 3000 K version, and its colour temperature dims from 3000 K down to 2000 K as you dial the dimmer back — perfect for a dining room that needs to be bright at supper and candle-like at 10 p.m. The lens gives a controlled 38° beam spread, tight enough to graze a wall or wash a counter without spilling light everywhere. LM79 and LM80 tested, with a projected life of 70% at 33,000 hours.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable class II electronic LED driver with 100-135 V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals make wiring fast — a real time-saver when you are installing a dozen dimmable LED downlights in one afternoon. Use industry-standard TRIAC/ELV dimmers; Liteline publishes a compatible dimmer list at liteline.com/lunadimmers.

Technical specifications
SKU: RA35-12F-30K-90WH
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Class II: Yes
Power factor: >0.90
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Colour: White (WH)
Warranty: Lifetime

Applications, accessories and documentation
Because it is rated for wet locations and approved for direct insulation contact, this downlight handles showers, covered porches, soffits and insulated attics as easily as a living room ceiling — and the -20 °C to 40 °C range means it keeps working through a Québec or Prairie winter. Accessories are sold separately: the P-3520 round pre-mounting plate and P-3520NC new construction plate with driver attachment clip are made for 3½" LUNA LED fixtures, the P-NCMK-1 kit adds hanger bars and brackets, VBE-1 through VBE-4 vapour barrier extenders cover new construction and remodel work, and RA35-XLRING-WH, -BK or -BN reducer rings adapt the aperture. To keep a whole floor consistent, pair this fixture with the brushed nickel RA35-12F-DTW-90BN, the black RA35-12F-DTW-90BK or the RA35-12G-90WH. The full technical PDF (RA35-12F-30K-90WH Spec Sheet) is in the Documentation tab for dimensions, ordering guide and accessory codes.
