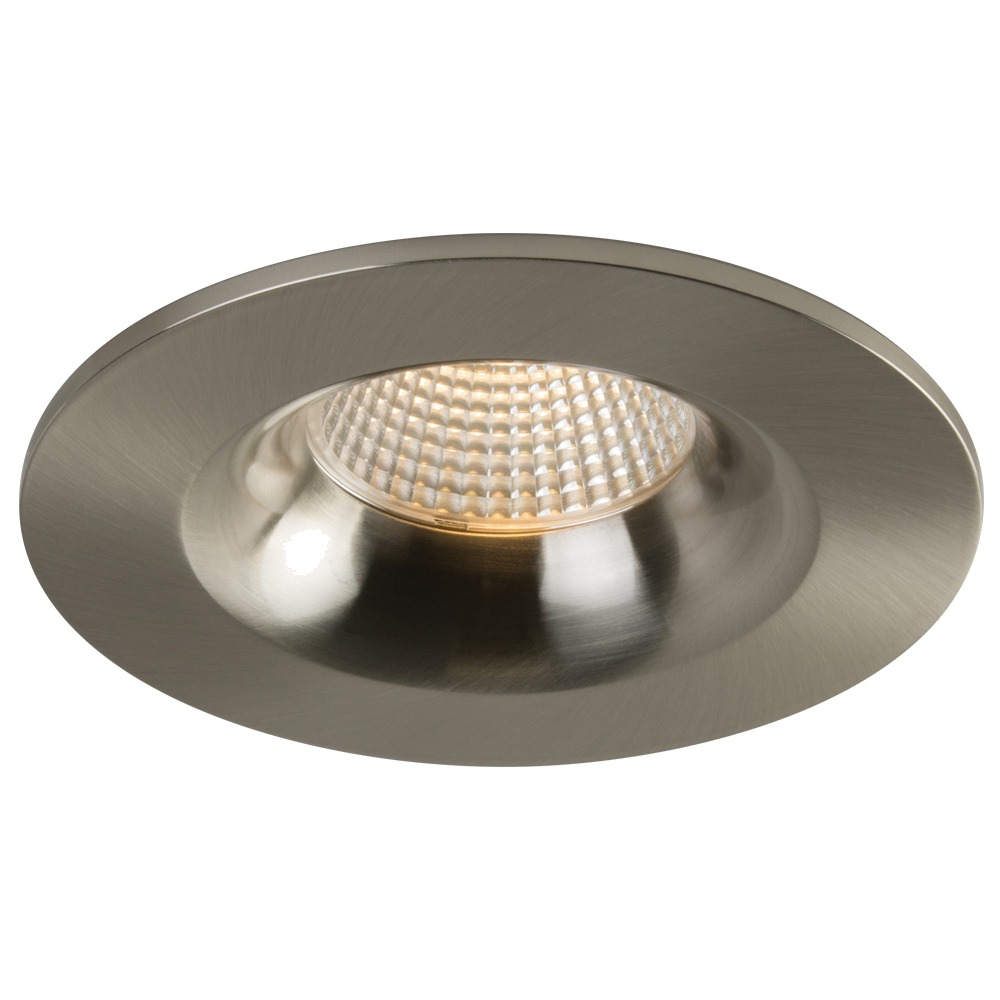

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-27K-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-27K-90BN
Brand: LITELINE
SKU: RA35-12F-27K-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA35-12F-27K-90BN

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE gives you a clean, discreet ceiling opening and a warm, flattering beam that makes a room feel finished. Known by plenty of names — pot light, LED downlight, recessed can light or simply round LED light — this fixed downlight (SKU RA35-12F-27K-90BN) is built for retrofit work as much as for new projects. It slips into a tight ceiling cut-out, disappears into the drywall and leaves nothing but a crisp brushed nickel ring and a well-lit space. Homeowners use it for kitchen downlights, hallways and bathrooms; contractors love it because the wiring and the install are honestly quick.

Under the trim sits a 12 watt LED module delivering up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint and tile all read true. The 38° beam spread keeps the light focused and even, and the fixture is dim-to-warm: it shifts from 3000 K down to 2000 K as you dim, the way a filament lamp mellows at night. It runs on a 300 mA dimmable Class II electronic driver, 100-135V AC, 50/60 Hz, is compatible with industry-standard TRIAC/ELV dimmers, and carries a power factor above 0.90. The airtight fixed aluminum body with anodized blue heat sink handles thermal load, the cut-out is Ø 3 5⁄8" (92 mm), the fixture measures 4 3⁄8" (111 mm) with an 18" (457 mm) FT6 cable, and it is cETLus certified, LM79 and LM80 tested, rated for wet locations and direct contact with insulation, with 70% lumen maintenance at 33,000 hrs and a lifetime warranty.

This little downlight shines in kitchens, bathrooms and showers, closets, entryways, covered porches and stairwells, and just as well in boutiques, cafés, clinics and offices where a tidy ceiling matters. Because it is approved for wet locations and insulated ceilings and works from -20°C to 40°C, it suits Canadian realities — soffits, cottage porches and insulated attics included. Mixing finishes or colour temperatures in the same job? Look at the 3.5" LUNA LED round recessed fixture RA35-12F-27K-90BK, the 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH, or add aimable accents with the 3.5" LUNA LED round regressed gimbal recessed fixture RA35-12RG-90BN. Plan your layout and light your ceiling right.

Built to last, built to install fast
The LUNA 3.5" starts with a durable airtight fixed aluminum body paired with an anodized blue heat sink that keeps airflow around the LED source, which is exactly what protects light output over the years. Two spring-loaded clips hold the fixture in any ceiling material, so a retrofit pot light install into existing drywall takes minutes. The extruded aluminum hardwire box carries three "Quick connect" push-in terminals for fast, tool-friendly wiring, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture — that cable is approved for use in plenums and suspended ceilings, which keeps inspectors happy on commercial jobs.

Light quality and dim-to-warm behaviour
The 12 watt LED module produces up to 600 lumens with uniform intensity and a typical CRI of 90, a level of colour rendering you notice immediately on millwork, backsplashes, artwork and merchandise. The lens delivers a 38° beam spread, tight enough to shape pools of light over a counter or a corridor, wide enough to layer comfortably at standard residential ceiling heights. Best of all, the colour temperature dims from 3000 K down to 2000 K: full output for cooking and cleaning, candle-like warmth for evenings, dinners and hospitality spaces.

Technical specifications
Model: RA35-12F-27K-90BN
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Driver: 300mA dimmable Class II electronic
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92mm)
Dimensions: 4 3⁄8" (111mm) / 3 3⁄8" (85mm) / 4 3⁄16" (106mm) / 3 1⁄16" (78mm) / 15⁄16" (34mm)
Cable: 18" (457mm) FT6 with DC 2.1 connector
Colour: Brushed Nickel (BN)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, LM79, LM80
Projected life: 70% @ 33,000 hrs
Warranty: Lifetime

Compatibility and accessories
Use standard TRIAC/ELV dimmers; LITELINE publishes a compatible dimmer list for LUNA fixtures. Accessories are sold separately and designed for this 3½" LUNA platform: the P-3520 round pre-mounting plate and the P-3520NC new construction plate (both with driver attachment clip), the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the VBE-1 vapour barrier extender for new construction and the VBE-2, VBE-3 and VBE-4 extenders for remodel work — a real answer to the "recessed lighting vapor barrier" question in Canadian ceilings. Reducer rings RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH cover oversized or previous cut-outs, and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V, adds app and schedule control.

Applications and documentation
Think a kitchen ceiling on a grid of dimmable LED downlights over island and perimeter, a bathroom with fixtures above the shower thanks to the wet location rating, a basement renovation where insulated ceiling contact is unavoidable, a covered entrance, or a café that drops to 2000 K after dark. For matching or varying the job, see the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BN, the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90WH or the gimbal version 3.5" LUNA LED round regressed gimbal recessed fixture RA35-12RG-DTW90BN for angled accents. The full technical spec sheet is available in the Documentation tab for your submittals and permit package.
