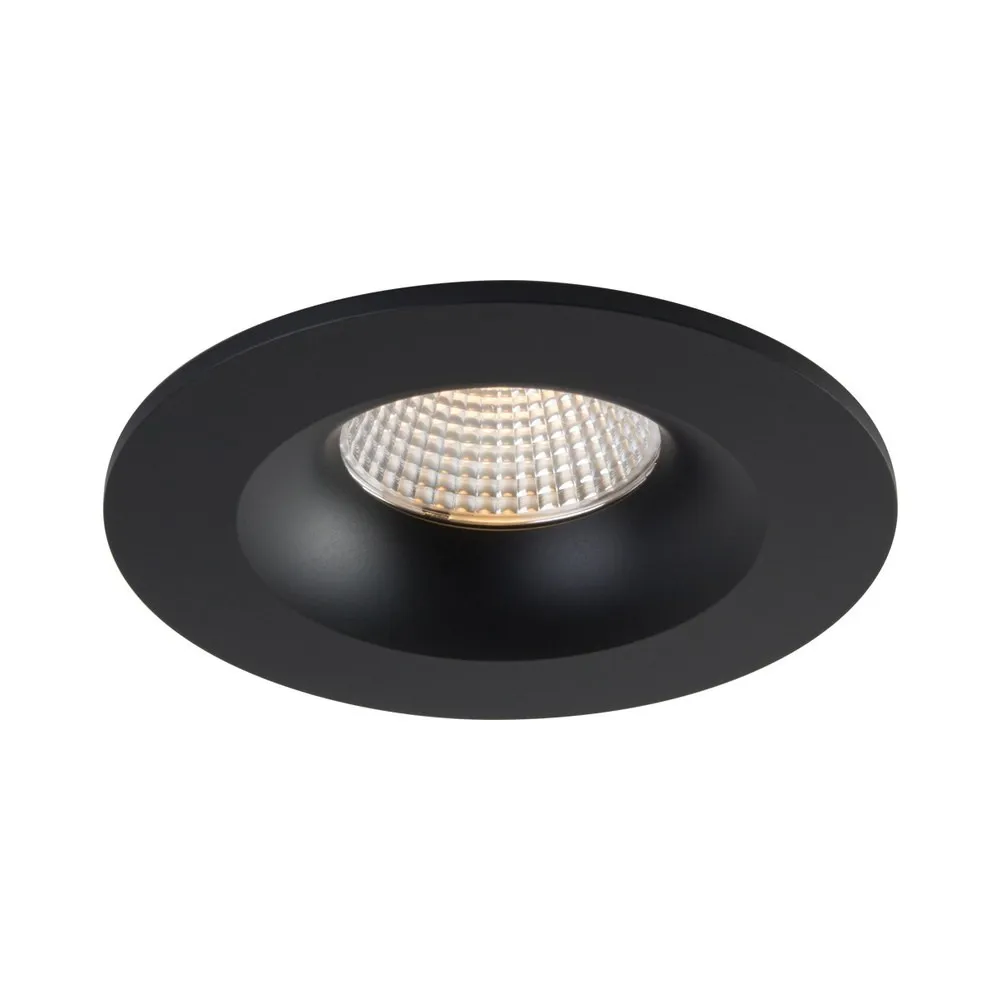

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-35K-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-35K-90BK
Brand: LITELINE
SKU: RA35-12F-35K-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-35K-90BK

Brand: LITELINE

Small aperture, big presence: the LUNA 3.5" LED round recessed fixture from LITELINE packs a full-size punch into a trim you barely notice. People look for it as a pot light, a 3.5-inch LED downlight, a round recessed light or simply dimmable LED downlights — it's the same compact workhorse, built for retrofit and new work alike. With its durable airtight aluminum body and a low-profile round trim in a clean black finish, it slips into ceilings where a 4" or 6" can would feel heavy: hallways, kitchens, bathrooms, condos, offices and retail spaces. Model RA35-12F-35K-90BK is the one to order when you want tidy, evenly spaced round LED lights that disappear into the drywall and let the light do the talking.

Under the lens sits a 12 watt LED module delivering up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and food all read the way they should. The 38° beam spread gives a controlled pool of light that's great for spacing over counters and corridors, and the fixture is dimmable with standard TRIAC/ELV dimmers for full control of the mood. It runs on 100-135V AC, 50/60Hz through a 300mA dimmable Class II electronic driver housed in an extruded aluminum hardwire box, connected by an 18" (457mm) FT6-rated cable with a DC 2.1 connector approved for plenums and suspended ceilings. Cut-out is Ø 3 5⁄8" (92mm); the fixture measures 4 3⁄8" (111mm) across and 3 3⁄8" (85mm) deep. It's cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for -20°C to 40°C operation, power factor >0.90, with projected life of 70% @ 33,000 hrs and a lifetime warranty.

This is the downlight that solves real Canadian problems: shallow ceilings, insulated attics, cold entryways, steamy showers and covered porches. Use it over kitchen islands, in walk-in closets, along basement corridors, in condo living rooms, boutique change rooms or restaurant seating areas. Two spring-loaded clips grab any ceiling material, and three Quick Connect push-in terminals make wiring fast. Planning new construction or a vapour barrier detail? Pair it with the matching family: the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BK, RA35-12F-35K-90BN in brushed nickel, or RA35-12F-30K-90WH in white. Order your LUNA downlights today and light the whole project with one clean look.

Built to last, built to install fast
The LUNA 3.5" starts with a durable airtight fixed aluminum body and an anodized blue heat sink that keeps airflow moving around the LED light source — the key to holding brightness and colour over the years. Two spring-loaded clips let the fixture mount into any ceiling material, from drywall to plaster to tongue-and-groove, so a recessed downlight retrofit takes minutes per hole. The trim is a slim round bezel in black, chosen by designers who want the ceiling to read as a smooth plane with discreet dots of light rather than a row of shiny rings.

Light quality that flatters the room
A 12 watt LED module produces up to 600 lumens of uniform intensity, and the lens shapes it into a 38° beam — narrow enough to stay controlled over an island or a hallway, wide enough to layer smoothly when fixtures are spaced properly. The typical CRI of 90 is what separates this from a budget pot light: cabinetry, marble, artwork, produce and clothing all keep their true colour. Efficacy is 57 lumens per watt, and the LM79 and LM80 testing behind the fixture means the numbers on the spec sheet are measured, not guessed.

Electrical and dimming details
The fixture is fed by a 300mA dimmable Class II electronic LED driver with 100-135V AC input, mounted in an extruded aluminum hardwire box with three "Quick connect" push-in terminals for fast, tool-friendly wiring. An 18" (457mm) FT6-rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Dimming works with industry standard TRIAC/ELV dimmers, and power factor is >0.90. Because it is approved for direct contact with insulation and suitable for wet locations, it can go straight into an insulated ceiling, a covered porch soffit or a shower ceiling without a special enclosure.

Technical specifications
SKU: RA35-12F-35K-90BK
Brand: LITELINE
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Class II: Yes
Power Factor: >0.90
Hole Cut: Ø 3 5⁄8" (92mm)
Dimensions: 4 3⁄8" (111mm) x 3 3⁄8" (85mm)
Operating Temperature: -20°C~40°C (-4°F~104°F)
Projected Life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Applications, accessories and documentation
Think condo corridors and living rooms, kitchen perimeters and islands, ensuite bathrooms and shower ceilings, basement renovations, home offices, boutiques, cafés, clinics and small offices where a 3.5" aperture keeps the ceiling calm. Accessories are sold separately and include round pre-mounting and new construction plates with driver attachment clip for 3½" LUNA LED fixtures, a new construction mounting kit with hanger bars, reducer rings for 3½" LUNA fixtures and vapour barrier extenders for new construction or remodel work — very useful on Canadian air-sealing details. To keep one consistent look across a job, mix apertures and finishes from the same family: RA35-12F-DTW-90WH, RA35-12F-DTW-90BN or RA35-12F-27K-90BK. The full technical PDF (RA35-12F-35K-90BK Spec Sheet) is available in the Documentation tab for cut-out dimensions, wiring and approvals.
