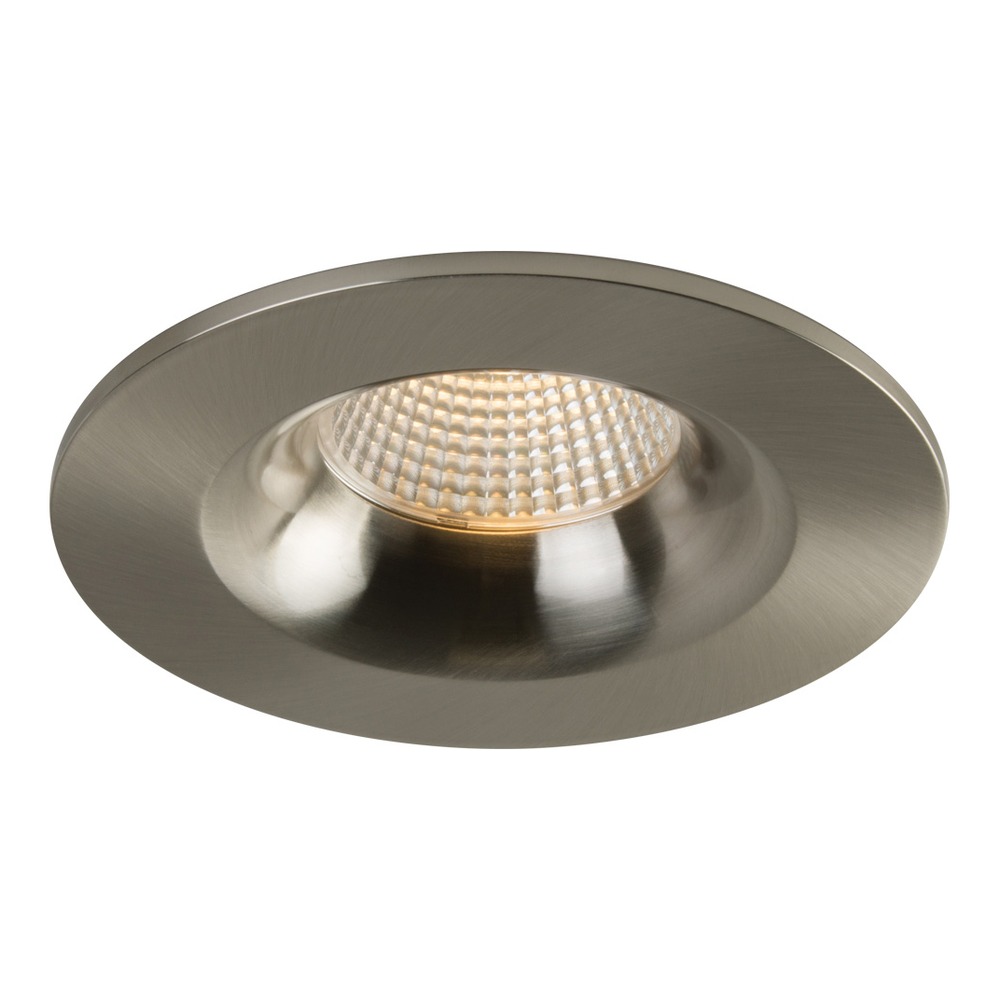

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-35K-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-35K-90BN
Brand: LITELINE
SKU: RA35-12F-35K-90BN
Price: 79.97 CAD
Availability: InStock

SKU: RA35-12F-35K-90BN

Brand: LITELINE

Small aperture, big presence: the LUNA 3.5" LED round recessed fixture from LITELINE (model RA35-12F-35K-90BN) is the discreet LED pot light people are really looking for when they search "round led lights", "dimmable led downlights" or "kitchen downlights". It's a complete recessed downlight — fixed aluminum body, LED module, lens and remote hardwire driver box — designed to slip into a small ceiling opening and disappear, leaving only a clean brushed nickel ring and a crisp beam of light. Use it in rows over a kitchen island, along a hallway, around a bedroom ceiling, in a bathroom, a covered porch, a boutique or an office corridor: anywhere you want a modern, low-profile recessed look instead of bulky housings.

This version delivers 12 watts and up to 600 lumens — 57 lumens per watt — through a 38° beam spread that keeps light where you aim it. The typical CRI of 90 renders wood, paint, skin tones and merchandise beautifully, and the colour temperature dims from 3000 K to 2000 K, so the light warms up as you lower it, just like a classic incandescent. It runs on 100-135V AC, 50/60Hz with a 300 mA dimmable Class II electronic driver and is TRIAC/ELV dimmable. The durable airtight aluminum body carries an anodized blue heat sink for maximum airflow, power factor is greater than 0.90, projected life is 70% at 33,000 hours, and it's backed by a lifetime warranty. cETLus certified, LM79 and LM80 tested, rated for wet locations and approved for direct contact with insulation, with a hole cut of Ø 3 5/8" (92 mm) and an operating range of -20°C~40°C.

From a Montréal condo renovation to a Prairie basement finish or a covered West Coast entryway, this downlight handles Canadian realities: insulated ceilings, humidity, and long dark evenings that call for a soft 2000 K glow. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make wiring fast. Need other finishes or a fixed white light? Compare the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BK, the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90WH or the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN. Order your LUNA downlights and give your ceilings the clean finish they deserve.

Built to last, built to install
The LUNA 3.5" is built around a durable airtight fixed aluminum body with an anodized blue heat sink that maximizes airflow around the LED light source — the simplest way to protect light output over time. Two spring-loaded clips let the recessed downlight attach to virtually any ceiling material, and the separate extruded aluminum hardwire box keeps the driver out of the aperture. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings, while three "Quick connect" push-in terminals make the wiring part of the job go quickly. Hole cut is Ø 3 5/8" (92 mm); the fixture measures 4 3/8" (111 mm) and 3 3/8" (85 mm), with a 4 3/16" (106 mm) / 3 1/16" (78 mm) profile and a 15/16" (34 mm) hardwire box height.

Light quality and dim-to-warm
The 12 watt LED module maintains uniform intensity and produces up to 600 lumens with a typical CRI of 90, so colours stay true under the beam. The lens shapes a 38° beam spread — tight enough for accent rows, wide enough for general LED pot light coverage on standard ceilings. The real charm is the dim-to-warm behaviour: colour temperature shifts from 3000 K down to 2000 K as you dim, turning a bright working kitchen into a candle-warm dining room without changing a single fixture.

Technical specifications
SKU: RA35-12F-35K-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per Watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam Angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Driver: 300mA dimmable Class II electronic
Power Factor: >0.90
Hole Cut: Ø 3 5/8" (92mm)
Operating Temperature: -20°C~40°C (-4°F~104°F)
Projected Life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80
Colour: Brushed Nickel
Warranty: Lifetime

Compatibility and accessories
This fixture works with industry standard TRIAC/ELV dimmers; the manufacturer publishes a compatible dimmer list for the LUNA family. Accessories, sold separately, include the P-3520 3 5/8" round pre-mounting plate and the P-3520NC round new construction plate, both with a driver attachment clip and made for 3½" LUNA LED fixtures, plus the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws. Reducer rings RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH adapt the 3½" LUNA to larger existing openings — handy on retrofits. Vapour barrier extenders VBE-1 (new construction) and VBE-2, VBE-3, VBE-4 (remodel) answer the frequent "recessed lighting vapour barrier" question in Canadian ceilings, and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V, adds app control.

Where it shines and what's documented
Because it's suitable for wet locations and approved for direct contact with insulation, this 3.5 inch LED downlight fits showers, covered porches, soffits, entryways and insulated attic-side ceilings, as well as condos, offices, clinics, restaurants and retail displays where a small aperture looks best. Mix finishes across a project with the 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BN, or pick a fixed colour temperature such as the 3.5" Luna LED round recessed fixture RA35-12F-27K-90BN or the 3.5" Luna LED round recessed fixture RA35-12F-90BN. The full technical PDF spec sheet is in the Documentation tab for dimensions, the ordering guide and driver options.
