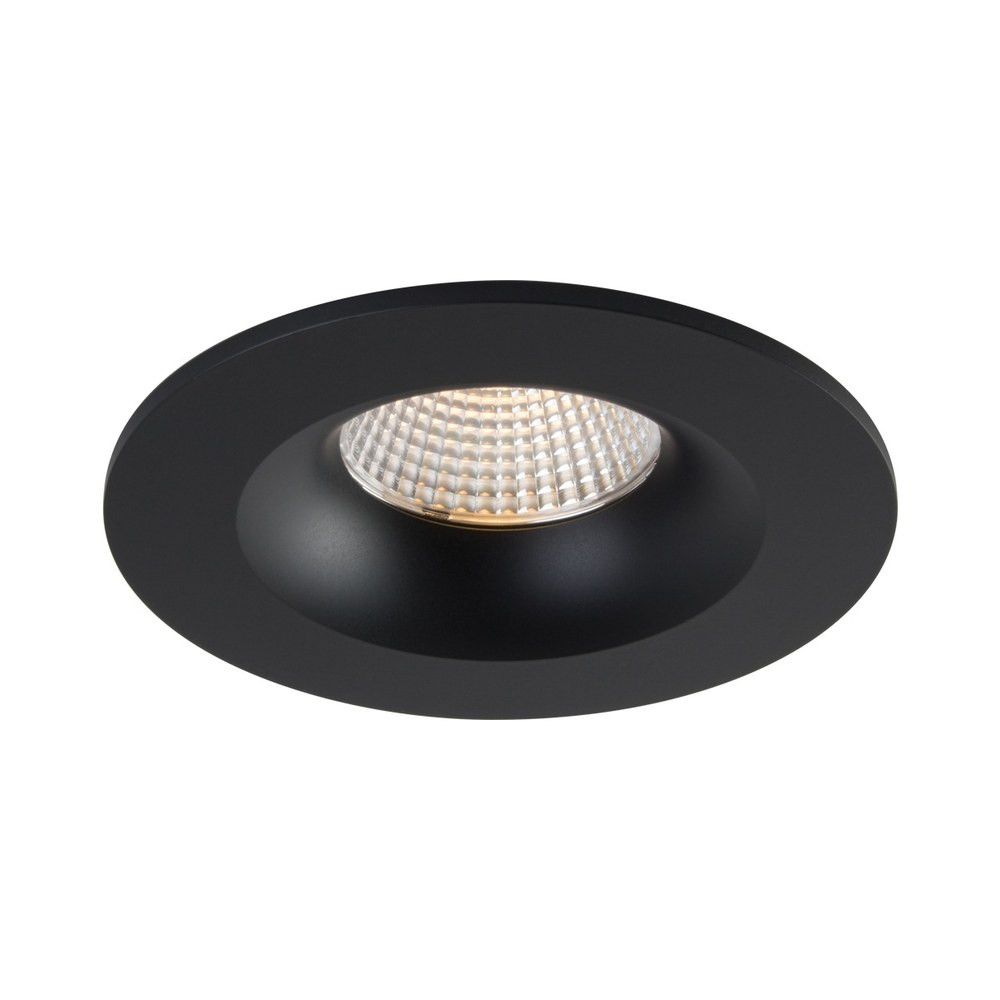

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90BK

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12F-40K-90BK
Brand: LITELINE
SKU: RA35-12F-40K-90BK
Price: 73.97 CAD
Availability: InStock

SKU: RA35-12F-40K-90BK

Brand: LITELINE

Small aperture, big presence: the 3.5" LUNA LED round recessed fixture from LITELINE (SKU RA35-12F-40K-90BK) is the little downlight that quietly makes a room look finished. If you've been searching for dimmable LED downlights, round pot lights, slim recessed cans or kitchen downlights with a discreet black trim, this is the fixture that checks the boxes. It's a complete recessed downlighting solution — LED module, lens and remote driver box — built for retrofit work as well as new construction, so you can swap tired halogen cans or plan a clean ceiling grid from scratch. Homeowners love it over islands, hallways and staircases; contractors love how fast it goes in.

Under the hood, a 12 W LED module delivers up to 600 lumens with a typical CRI of 90, so skin tones, wood grain and paint colours read true instead of washed out — that's 57 lumens per watt of usable, uniform light. The lens shapes a controlled 38° beam spread, ideal for layered accent and general lighting. The airtight aluminum body carries an anodized blue heat sink for airflow, and the fixture is approved for wet locations and for direct contact with insulation. It runs on a 300 mA dimmable Class II electronic driver, 100-135V AC, 50/60 Hz, with TRIAC/ELV dimming, power factor greater than 0.90, cETLus certification, projected life of 70% at 33,000 hours and a lifetime warranty. Hole cut is Ø 3 5⁄8" (92 mm), the fixture measures 4 3⁄8" (111 mm), and an 18" (457 mm) FT6-rated cable with DC 2.1 connector links driver to fixture. Operating range: -20°C~40°C.

From a Montréal condo kitchen to a covered porch on the South Shore, a boutique changing room or a clinic corridor, this black round downlight disappears into the ceiling and lets the light do the talking. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals make wiring a one-minute job. Matching the rest of your ceiling? See the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN in brushed nickel, or explore warmer options like the 3.5" Luna LED round recessed fixture RA35-12F-27K-90BK. Order yours today and light your project right.

Built to last, built to fit
The LUNA 3.5" round recessed fixture is built around a durable airtight fixed aluminum body with an anodized blue heat sink that keeps maximum airflow around the LED light source — the simplest way to protect light output and colour over the years. The compact black trim finish (90BK) sits flush and low-profile in the ceiling, and the fixture is suitable for wet locations and approved for direct contact with insulation, which means bathrooms, covered exteriors and insulated attic ceilings are all fair game. Overall dimensions are 4 3⁄8" (111 mm) and 3 3⁄8" (85 mm), with a 15⁄16" (34 mm) detail and a driver box measuring 4 3⁄16" (106 mm) by 3 1⁄16" (78 mm).

Light quality you can see
This general application fixture uses a 12 watt LED module that maintains uniform intensity and produces up to 600 lumens, with a typical CRI of 90 for rich, accurate colour rendering. Efficacy is rated at 57 lumens per watt, and the lens creates a clean 38° beam spread — tight enough to accent a counter or a feature wall, wide enough to space out as general ceiling lighting. LM79 and LM80 testing is documented, and projected life is 70% at 33,000 hours.

Electrical and installation
An extruded aluminum hardwire box houses a 300 mA dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6-rated cable with a DC 2.1 connector joins the driver to the fixture and is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals handle the wiring, and two spring-loaded clips attach the fixture to any ceiling material through a Ø 3 5⁄8" (92 mm) hole cut. Dimming is TRIAC/ELV compatible with industry standard dimmers — always confirm your dimmer against the manufacturer's compatibility list before final wiring.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
Certification: cETLus
Class II: Yes
CRI: 90
Dimming: Yes — TRIAC/ELV
Hole Cut: Ø 3 5⁄8" (92 mm)
Input: 100-135V AC, 50/60 Hz
Lumens: 600
Lumens per Watt: 57
Power Factor: >0.90
Projected Life: 70% @ 33,000 hrs
Operating Temperature: -20°C~40°C (-4°F~104°F)
Wattage: 12W
Trim finish: Black
Warranty: Lifetime
SKU: RA35-12F-40K-90BK

Applications, accessories and documentation
Think open-concept kitchens where a row of small apertures replaces a bulky fixture, hallways and walk-in closets, retail fitting rooms, restaurant booths, clinic corridors, covered entries and soffits exposed to Canadian weather. Liteline lists a range of accessories for this family, sold separately: the P-3520 pre-mounting plate and the P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, the RA35-XLRING-BK, RA35-XLRING-BN and RA35-XLRING-WH reducer rings for 3½" LUNA fixtures, the VBE-1 vapour barrier extender for new construction and VBE-2, VBE-3, VBE-4 for remodel work — a real answer to the "recessed lighting vapor barrier" question — plus the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V. To mix finishes or colour temperatures in the same project, see the 3.5" Luna LED round recessed fixture RA35-12F-40K-90BN, the 3.5" Luna LED round recessed fixture RA35-12F-30K-90WH or the dim-to-warm 3.5" Luna LED round recessed fixture RA35-12F-DTW-90BK. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit files.
