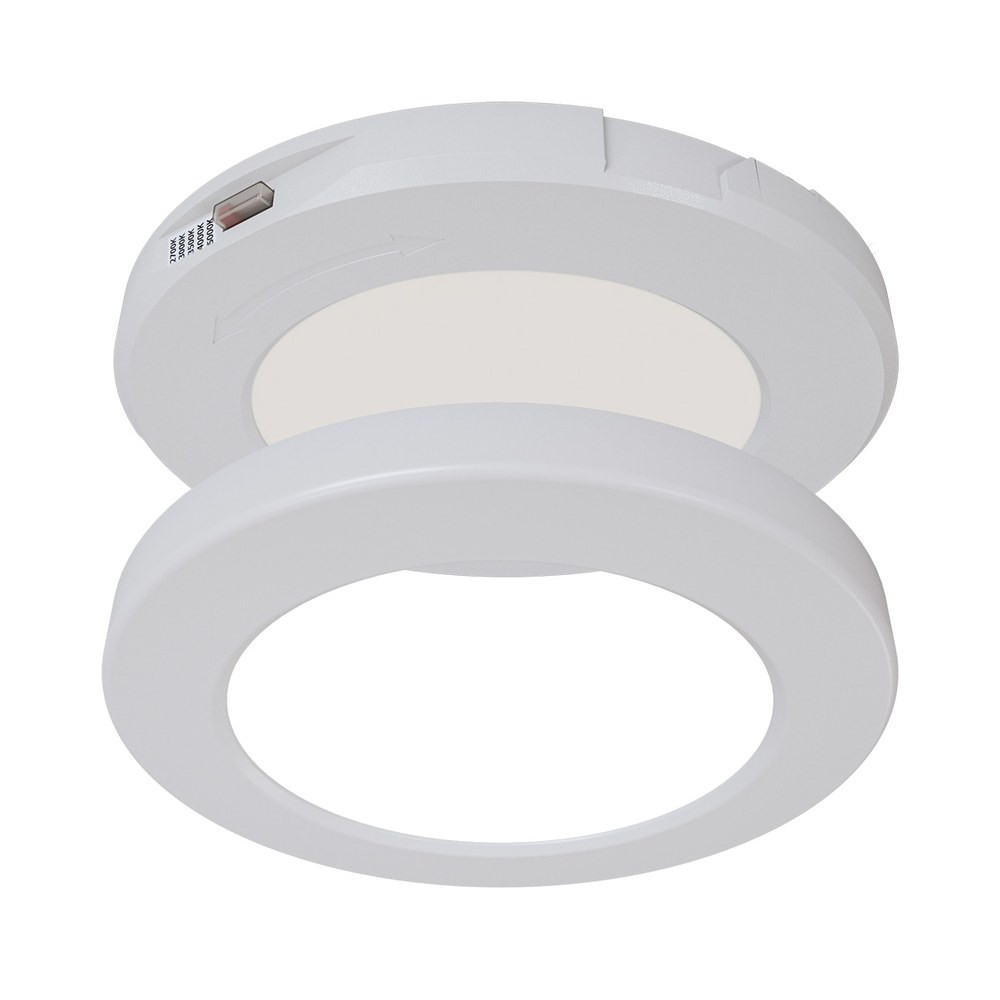

ALL-IN-ONE RETROFIT 6" FIXTURE - SLMT6-13W

Name: ALL-IN-ONE RETROFIT 6" FIXTURE - SLMT6-13W
Brand: LITELINE
SKU: SLMT6-13W
Price: 72.97 CAD
Availability: InStock

SKU: SLMT6-13W

Brand: LITELINE

Say goodbye to dim, dated pot lights: the ALL-IN-ONE RETROFIT 6" FIXTURE from LITELINE, model SLMT6-13W, is the easy upgrade every renovation deserves. Known by a lot of different names — 6" recessed downlight, slim LED pot light, retrofit LED can light or simply luminaire encastré by our Québec customers — this SlimLED Multi round downlight drops straight onto an existing 6" recessed housing or onto a 3.5"/4" octagon box, no can required. It is the go-to answer for anyone searching for a fire rated recessed downlight or a clean, low-profile recessed LED light for kitchens, hallways, basements, covered porches and commercial ceilings alike.

Under that slim profile sits a serious little performer. The 13W LED module delivers up to 1210 lumens (up to 85 lumens per watt) with a remarkable 96 CRI, so wood grain, paint colours and skin tones all look true. A CCT select switch gives you five selectable colour temperatures — 2700 K (1105 lm, default), 3000 K (1150 lm), 3500 K (1190 lm), 4000 K (1210 lm) and 5000 K (1175 lm) — so one fixture covers every room. The durable airtight aluminum body measures 7½" (190 mm) across with a 4 15⁄16" (125 mm) aperture section and a slim 23⁄32" (18 mm) profile, and the twist-and-lock white trim is included (black and brushed nickel trims sold separately). It runs on 120V, 60Hz through a built-in on-board driver with a 0.9 power factor, dims smoothly from 100% to 10% on standard forward/reverse phase, TRIAC/ELV dimmers, spreads light at 110°, is cETLus certified, Energy Star and Title 24 listed, LM79 and LM80 tested, rated for wet locations indoors or outdoors, operates from -30°C to 45°C, is projected at 70% @ 50,000 hrs and is backed by a 5-Year warranty.

From a Montréal condo kitchen to a Prairie basement rec room, a shop ceiling or a covered deck that has to survive a real Canadian winter, this downlight fits. It is fire-rated when used in a steel octagon box, and quick connect push-in terminals make wiring fast on ladder work. Pair it with the P-SLMT6-6CAN retrofit kit (E26 lampholder, wire, connectors and spring clips, sold separately) for 6" cans, or install it on RF601ICAT and RF602ICAT series recessed housings. Optional SLMT6-RT-BK and SLMT6-RT-BN trims and the round or square SLMT6-RST / SLMT6-SST decorative surface mount trims let you finish it your way. Order the SLMT6-13W and light your project right.

Built to last, built to install fast
The SLMT6-13W is built around a durable airtight aluminum body that sheds heat and keeps conditioned air where it belongs. Its twist-and-lock trim system means you align, twist and you are done — a real time-saver when you are doing a whole floor of 6" recessed downlights. The white trim ships in the box, while black (SLMT6-RT-BK) and brushed nickel (SLMT6-RT-BN) trims are sold separately. With an overall 7½" (190 mm) diameter, a 4 15⁄16" (125 mm) section and a slim 23⁄32" (18 mm) profile, this slim LED pot light disappears into the ceiling instead of dominating it.

Light quality you can see
This general application fixture uses a 13 watt LED module that maintains uniform intensity and produces up to 1210 lumens with a typical CRI of 96 — the kind of colour rendering that makes countertops, cabinetry and merchandise look the way they should. The lens spreads light at a wide 110° beam angle for even, shadow-free coverage. The onboard CCT select switch offers five colour temperatures: 2700 K (default, 1105 lumens), 3000 K (1150 lumens), 3500 K (1190 lumens), 4000 K (1210 lumens) and 5000 K (1175 lumens), so a single SKU handles warm living rooms and crisp task areas on the same job site.

Technical specifications
Application: Recessed / Surface-mount Downlight
Wattage: 13W
Lumens: Up to 1210
Lumens per watt: Up to 85
CRI: 96
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Beam angle: 110°
Input: 120V, 60Hz
Power factor: 0.9
Dimming: Yes, 100%-10%
Dimming tech: Forward/Reverse phase / TRIAC/ELV
Colour: WH (BK/BN trims sold separately)
Approved location: Wet
Operating temperature: -30°C~45°C (-22°F~113°F)
Certification: cETLus
Energy Star: Yes
Title 24: Yes
LM79 / LM80: Yes
Projected life: 70% @ 50,000 hrs
Warranty: 5-Year

Wiring, dimming and mounting
A built-in on-board driver accepts 120V AC directly, so there is no remote junction box driver to hide above the ceiling. Quick connect push-in terminals make wiring fast and clean. The fixture mounts to an industry standard 3.5"/4" octagon box (JBox or standard slab box) with a minimum depth of 1.5" (40 mm) through its mounting holes, or onto a compatible 6" recessed housing using the P-SLMT6-6CAN retrofit kit, sold separately, which includes an E26 lampholder, wire, connectors and spring clips. It is also compatible with RF601ICAT series and RF602ICAT series recessed housings. Dimming runs from 100% down to 10% with industry standard forward/reverse phase and TRIAC/ELV dimmers; the OnCloud Smart Wi-Fi dimmer (LC-CRTL-DIM-1) and OnCloud Smart Wi-Fi 3-way switch (LC-CRTL-3WAY-1) are listed accessories for smart control and 3-way or 4-way applications.

Where it works and what comes with it
Suitable for wet locations and indoor/outdoor rated, the SLMT6-13W handles a bathroom ceiling above the shower, a covered entryway, a soffit, a garage, a basement renovation, a retail sales floor or an office corridor. It is fire-rated when used in a steel octagon box, and the -30°C to 45°C operating range suits unheated Canadian spaces. Decorative surface mount trims/baffles are available in round (SLMT6-RST) and square (SLMT6-SST) versions in black or white with gold, black, specular, semi-specular or white interiors, turning the same retrofit downlight into a surface-mount fixture. Full details, dimensions, mounting options and the complete accessory list are in the technical PDF (SLMT6-13W Spec Sheet) in the Documentation tab.
